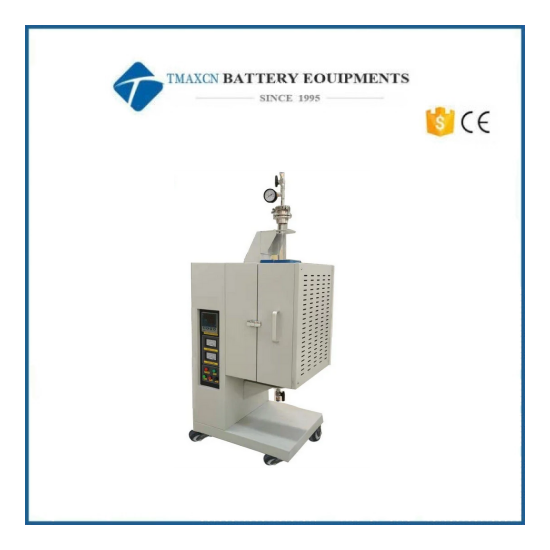

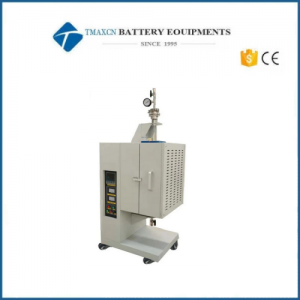

1400℃ 3-Zone Multiple Temperature Heating Zone Tube Furnace With Quartz Tube And Customized Tube Size
Model Number:
TMAX-SK2V-15-14TPB3Compliance:
CE certificateWarranty:
One year limited warranty with lifetime technical supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
1400℃ 3-Zone Multiple Temperature Heating Zone Tube Furnace With Quartz Tube And Customized Tube Size
Technical parameter
Main parameter |
PN: SK2V-15-14TPB3 Max.Temp: 1400C Working temperature:0-1300C Tube diameter:60mm The heating zone length:300+300+300mm Power:15kw(Subject to design) Tube material:Alumina tube Heating rate:0~15 Degree/Min Voltage:380V,2 phase 50/60HZ Max.vacuum:-0.1Mpa Heating element:Sic heater Thermocouple:S type Temperature accuracy: ±1℃ |
Furnace type |

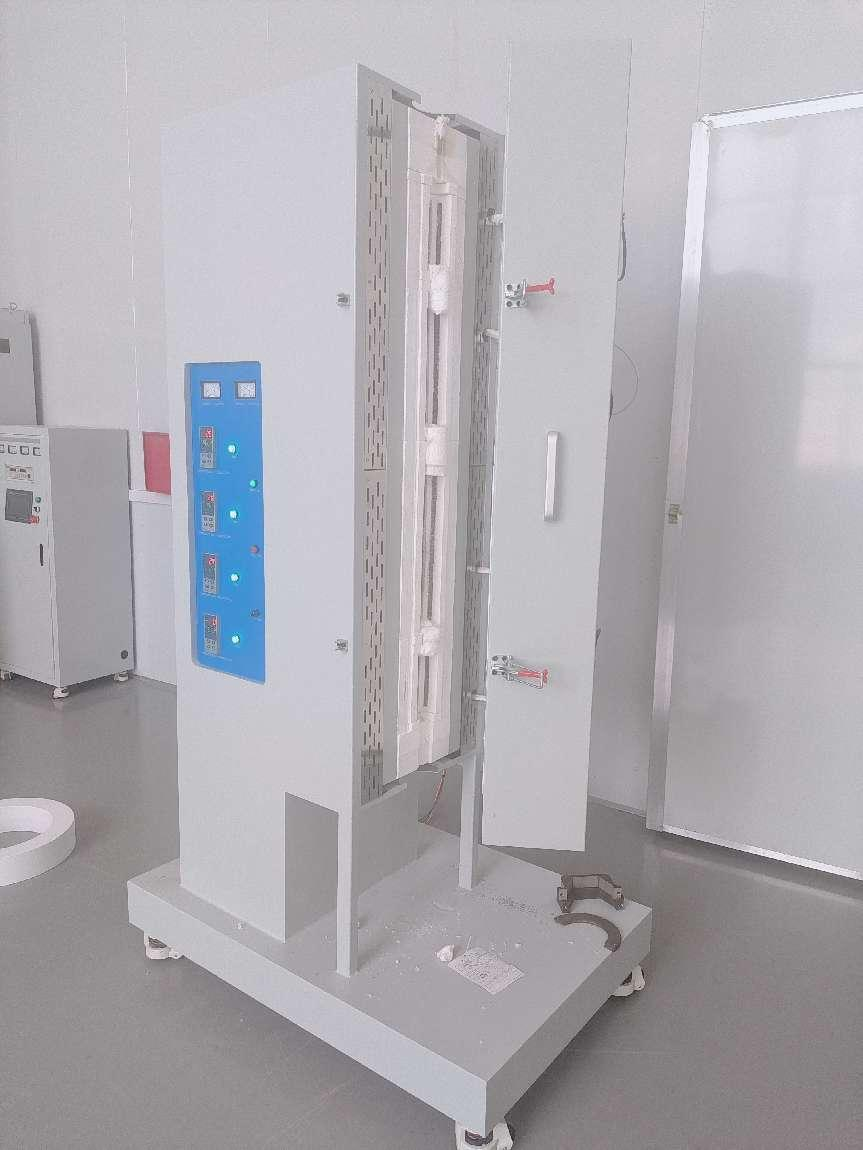

Furnace body with vertical type and split. |
Inlet gas/Atmosphere |
It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc |
Gas control |
The air inlet can be set up 1 or more air intakes, each air inlet is provided with a ball valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with ball valves. Equipped with a vacuum pump. |
Temperature controlling |
Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty. |
Appearance design |
The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use. |
Furnace Chamber material |
Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace. |
Furnace chamber design |
Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace. |
Furnace shell structure |
Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury. |
Sealing way |
Adopt 304 stainless steel flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing. Gasket materials:Silicone O-ring,Can withstand temperatures around 100 degrees |
Temperature control security |
The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe. |
Warranty |
One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and ceramic tube damaged by user. Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty. |
