1400°C 40-Segment Muffle Furnace w/ PC Interface

  • Model Number:

    TMAX-1400Muffle
  • Compliance:

    CE compliant
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Delivery Time:

    15 days
contact now
DESCRIPTION

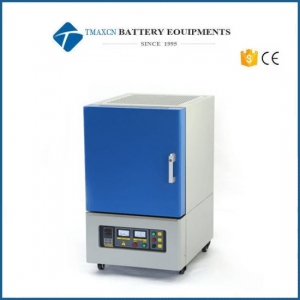

1400°C 40-Segment Muffle Furnace w/ PC Interface



TMAX-1400Muffle series muffle furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and silicon carbide (SiC) heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.


Here is the video link for your reference:

https://www.youtube.com/watch?v=7IXIf4sPP10&feature=youtu.be


Features

·         Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.

·         Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.

·         Built-in computer interface.

·         Long life type S thermocouple.

·         CE compliant

Safety

·         Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.

·         Power failure protection resumes furnace operation right after the point of failure when power is reestablished.




Specifications

 Electrical requirements

 208-240VAC, 50/60Hz, single phase

 Min. working temperature

 Ambient

 Max vs constant working temperature

 1400°C (2552°F) / 1300°C (2372°F)

 Refractory lining

 Mitsubishi (Japan) high quality 1600 grade fiber alumina

 Heating element type

 Silicon carbide (SiC)

 Thermocouple type

 S

 Temperature controller

 Shimaden fp93 (Japan) with 4 programs and
 40 segments (ie. 4 x 10 segments or 2 x 20 segments)


 Max heating / cooling rate

 < 15°C (59°F) / min

 Temperature precision

 +/- 1°C

 CE compliance

 Yes


Size comparison

 Chamber size (DxWxH)

 6x6x6"

 12x8x8"

 16x12x12"

 Usable chamber space (DxWxH)

 4x5x5.5"

 10x7x7.5"

 14x11x11.5"

 Chamber capacity (cu ft)

 0.13

 0.44

 1.33

 Installed heating element

 4

 8

 12

 Maximum output

 3 kW

 7 kW

 13 kW

 Unit/shipping dimensions (LxWxH)

 20x19x32"/31x37x46"

 22x25x34"/36x32x56"

 26x28x39"/36x32x56"






Standard package



Part description





  Quantity




Part image



TMAX-1400Muffle muffle furnace

 1 pc


 Type K thermocouple

 1 pc


 Stainless steel tongs

 1 pc

 Alumina thermal cushion block

 1 pc

 Thermal gloves

 1 pair

 Spare fuse

2 pcs

 USB/RS485 computer interface kit

 1 set

 Furnace operation manual

 1 pc
