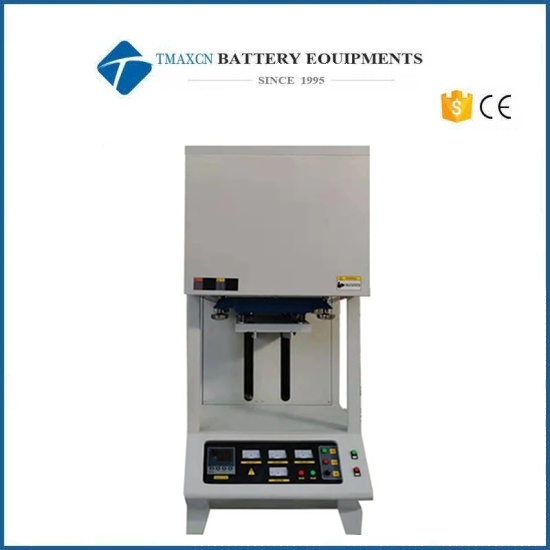

1400℃ Vacuum Atmosphere Lifting Furnace With Silicon Carbide Liner

Model

VSF1400-I

VSF1400-II

Power

7KW

13KW

Chamber size

(DXH)

200X210mm

300X310mm

Liner Dimensions (DXH)

 Dia170X170mm

 Dia270X270mm

Outer Dimension(WXDXH)

660X675X1380

710X725X1480

Net Weight

265

310

Voltage

220V

380V

Phase

Single phase

Heating element

Silicon carbide

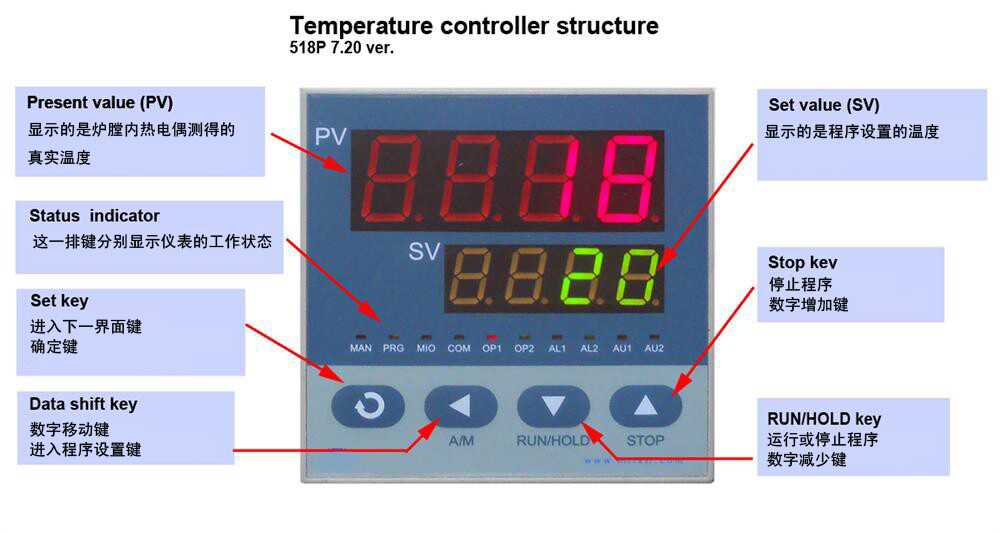

Controller

YUDIAN Controller(Standard)

1. 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1420 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3. With 485 communication interface (standard when purchasing software)

4. With power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5. The meter has the function of temperature self-tuning

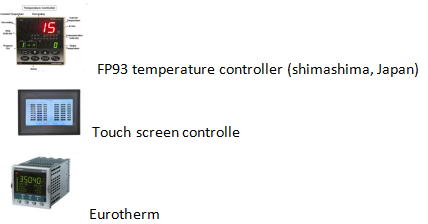

If you want to get an imported temperature controller, you may have the following choices for replacement with extra fees.

Vacuum degree in cold state

10Pa

Furnace Material

1600 type alumina polycrystalline fiber (alumina content above 95%) imported from Japan

control accuracy

+/- 1 ℃

Trigger

Phase shift trigger

Electrical appliances

Zhejiang Chint

maximum temperature

1400 ℃

Rated temperature

1350 ℃

Working temperature under vacuum

1100 ℃

Thermocouple model

S Type

Heating rate

≤20 ℃/ Min(Can be modified as required)

Recommended heating rate

≤10 ℃/ Min

Thyristor

106/16E Siemens Germany

Safety protection system

The furnace door is equipped with a travel switch. When the furnace door is lowered, the power supply will be automatically cut off to prevent the risk of electric shock when the heating element is touched.

Limit switch

When the lifting rod reaches the highest or lowest point, the travel switch will automatically power off the lifting rod, so as not to over-lift or over-drop

Lifting system

Using automatic lifting stainless steel electric push rod, after pressing the up or down button, the material will rise and fall freely with the lifting tray

Electric push rod power

150W

Electric push rod lifting rate

420mm/ Min

Surrounding surface temperature

≤45℃

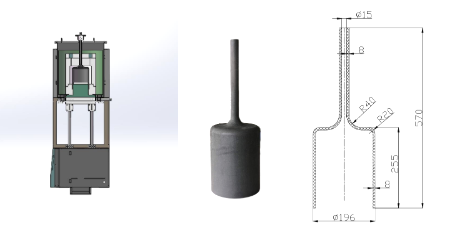

Anti-corrosion

Optional silicon carbide cover to prevent corrosive gas from corroding furnace materials and heating elements

VRD-8 vacuum pump

Type

VRD-8

Ultimate partial pressure

5X10-2 Pa

Inlet and exhaust interface

KF25

Motor speed

1440RPM

Pumping rate

2.2L/S

Motor Power

0.4KW

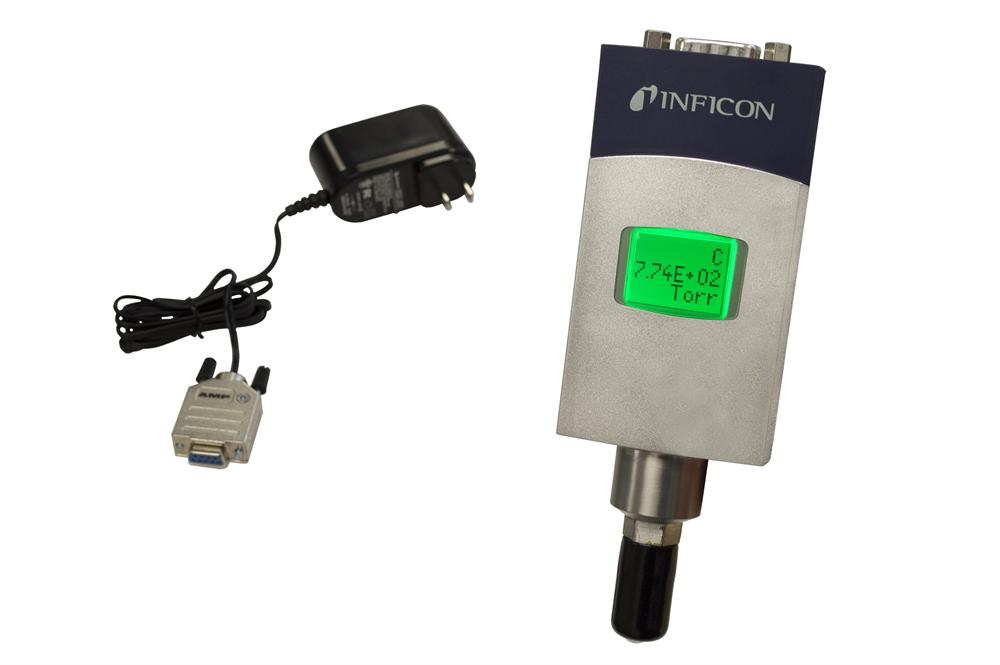

Sweden (INFICON) Pirani ceramic capacitor vacuum gauge

Type

PCG554

Input Voltage

24V 1A DC (with 220V transformer)

Vacuum gauge interface

KF16

Digital Display

Digital display (screen size is 20x14mm), and its data display unit is torr

Product Size

46mm×28mm×126mm ( L x W x H)

Weight

5 lbs

Detection gas

It can detect various gases, including mixed gases, with accurate measurement and good repeatability.

Whether it is anticorrosive

Antiseptic

Response time

≤30ms

Measuring range

3.8x10-5 -1125 Torr.
