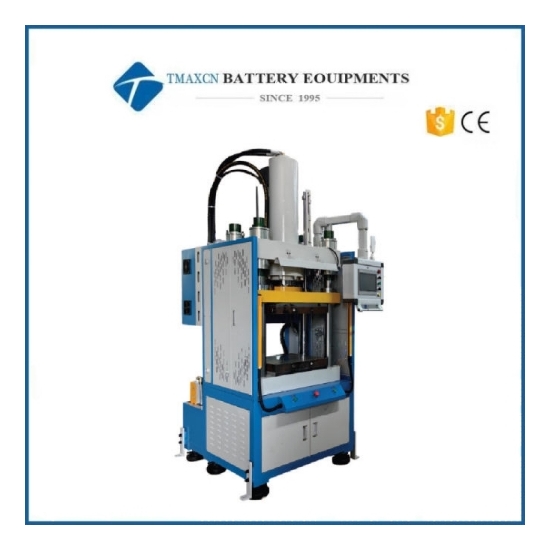

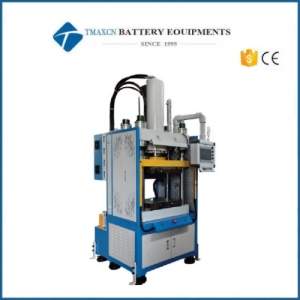

15T Automatic Servo Press Equipment
Model Number:
TMAX-105F-15TCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

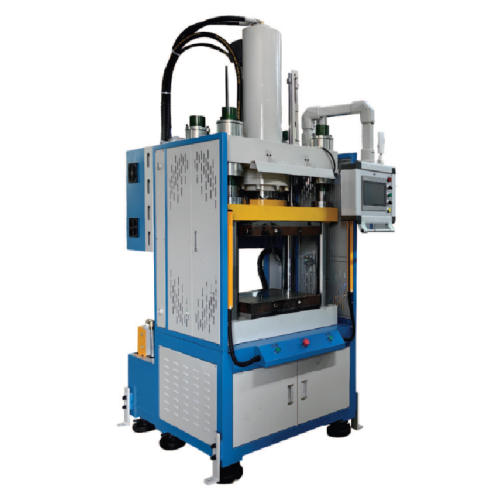

15T Automatic Servo Press Equipment
Introduction
The Servo Hot Press utilizes an electro-hydraulic servo control system as its power source. It is managed by a PLC, features a touchscreen HMI, and employs force sensors to execute high-precision hot pressing operations. The integrated intelligent multi-stage heating and pressing system meets all precise temperature control requirements for the products. It can be equipped with devices such as an industrial computer and automatic loading/unloading robotic arms. Equipment Pressure: Available in various specifications from 5T to 500T.
Technical parameters
|
Model |
105F-5T |
105F-10T |
105F-15T |
105F-25T |
105F-200T |
|
|
Rated Pressure (T) |
5 |
10 |
15 |
25 |
200 |
|
|
Max. Working Liquid Pressure |
7 |
14 |
21 |
21 |
21 |
|
|
Return Force (T) |
5 |
10 |
15 |
25 |
50 |
|
|
Frame Table Height from Floor (E) |
780 |
780 |
780 |
780 |
1387 |
|
|
Max. Opening (H) |
210 |
250 |
250 |
250 |
600 |
|
|
Adjustable Stroke Distance |
50 |
50 |
50 |
0 |
0 |
|
|
Slide/Plunger Max. Stroke |
150 |
250 |
250 |
250 |
400 |
|
|
Table Effective Area |
Left-Right (L) |
500 |
600 |
600 |
600 |
1200 |
|
Front-Back (W) |
240 |
400 |
400 |
400 |
1200 |
|
|
Slide/Plunger Speed |
Working Speed |
≥89 |
≥180 |
≥180 |
≥180 |
150 |
|
Return Speed |
≥89 |
≥160 |
≥160 |
≥160 |
125 |
|
|
Main Machine Outline Dimensions (LWH) |
700*600*1980 |
850*600*2140 |
850*600*2220 |
850*950*2200 |
2300*2607*2800 |
|

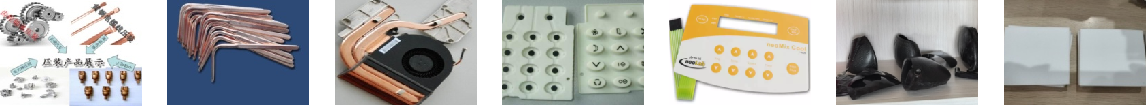

Finished Product
