1700°C 40-Segment Muffle Furnace w/ PC Interface

  • Model Number:

    TMAX-1700Muffle
  • Compliance:

    CE compliant
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Delivery Time:

    15 days
contact now
DESCRIPTION

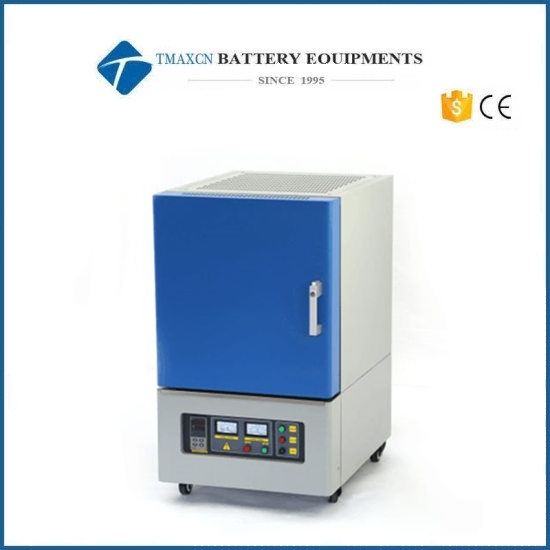

1700°C 40-Segment Muffle Furnace w/ PC Interface


TMAX-1700Muffle series muffle furnaces feature a chamber with Mitsubishi (Japan) high quality grade 1800 alumina fiber insulation and molybdenum silicide (MoSi2) heating elements. A dual-wall steel housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.


Here is the video link for your reference:

https://www.youtube.com/watch?v=7IXIf4sPP10&feature=youtu.be


Features

  • Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
  • Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
  • Built-in computer interface.
  • Long life type B thermocouple.
  • CE compliant

Safety

  • Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
  • Power failure protection resumes furnace operation right after the point of failure when power is reestablished.







General specifications

 Electrical requirements

 208-240VAC, 50/60Hz, single phase

 Min. working temperature

 300°C (572°F) recommend at least 800°C for longer heating element life

 Max./constant working temperatures

 1700°C (3092°F) / 1600°C (2912°F)

 Refractory lining

 Mitsubishi (Japan) high quality grade 1800 fiber alumina

 Heating element & thermocouple type

 Molybdenum Silicide (MoSi2) / B-type

 Temperature controller

 Shimaden fp93 (Japan) with 4 programs and
 40 segments (ie. 4 x 10 segments or 2 x 20 segments)


 Max heating / cooling rate

 < 15°C (59°F) / min

 Temperature accuracy

 +/- 1°C

 Compliance

 UL/CSA (optional), CE


Size comparison

 Chamber size (DxWxH)

 6x6x6"

 12x8x8"

 16x12x12"

 Usable chamber space (DxWxH)

 4x5x5.5"

 10x7x7.5"

 14x11x11.5"

 Chamber capacity (cu ft)

 0.13

 0.44

 1.33

 Installed heating element (pc)

 4

 8

 10

 Maximum output

 3 kW

 7 kW

 13 kW

 Unit/shipping dimensions (LxWxH)

 22x21x34"/30x29x42"

 26x29x39"/30x37x47"

 26x29x39"/30x37x47"

 Unit/shipping weight (Lb)

 230/300

 550/660

 660/800


Standard package



Part description





  Quantity




Part image



 TMAX-1700Muffle

 1 pc


 Type K thermocouple

 1 pc


 Stainless steel tongs

 1 pc

 Alumina thermal cushion block

 1 pc

 Thermal gloves

 1 pair

 Spare fuse

2 pcs

 USB/RS485 computer interface kit

 1 set

 Furnace operation manual

 1 pc
