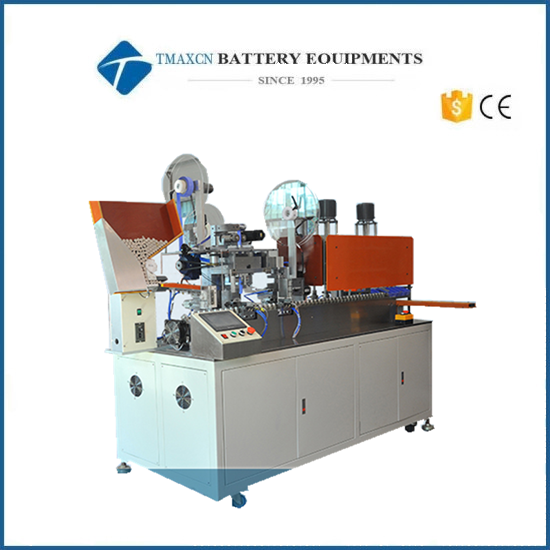

18650 Automatic Shrink Wrapping Machine For Cylindrical Battery Pack

  • Model Number:

    TMAX-Shrinking
  • Dimension(L*W*H):

    2100(L)*950(W)*1600(H)
  • Net Weight:

    800KG
  • Compliance:

    CE certificate
  • Warranty:

    Two years limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 Days
contact now
DESCRIPTION



18650 Automatic Shrink Wrapping Machine For Cylindrical Battery Pack

Features

(1) High efficiency: the film efficiency is 50~70PCS/MIN. It is 6~10 times of artificial efficiency;

(2) High precision: the precision servo motor and high-precision mechanical structure make the film precision up to ±0.1MM, and the technology is leading the industry;

(3) Highly intelligent: the humanized operation interface is convenient for manual operation, the fault is automatically alarmed, and the fault point is clear at a glance;

(4) Simple operation and maintenance: the personnel can operate the equipment with a little training, and the maintenance is relatively simple;

(5) High flexibility of equipment: After replacing the fixture and mold, it can be adapted to cylindrical batteries such as AA, AAA and 18650.


Specifications

 (Can be customized)

Model

TMAX-Shrinking

Specification

 AA,AAA,18650

Film speed

 50~70PCS/MIN

Film precision

 ±0.1MM

Power supply

380V/220V

Air pressure

0.5~0.7Mpa

Power

9KW

Weight

800KG

Machine size

2100(L)*950(W)*1600(H)

Casing requirements

The width of the coil is 29.7±0.2mm, and the thickness of the single layer is 0.08±0.01mm.

Insulation sheet coil size

width between 20 ± 0.1mm (no material break and tape interface in the middle of the coil)

Insulation sheet die size

Outer diameter 17.4 ± 0.1 mm; inner diameter 10.5 ± 0.1 mm; inner and outer diameter concentricity ± 0.10 mm

Heat shrinkable bottom edge size

2.5mm ± 0.3mm (size error is related to casing material and baking conditions)


Battery Shrink Wrapping
