200 mm Width Lab Vacuum Crimper Sealer Crimping Machine for Pouch Cell Sealing

  • Model Number:

    TMAX-JK-200
  • Dimension(L*W*H):

    200-400mm Width
  • Net Weight:

    60KG
  • Compliance:

    CE certificate
  • Warranty:

    1 Year with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

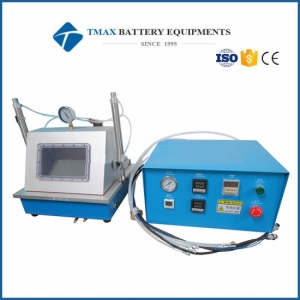

200 mm Width Lab Vacuum Crimper Sealer Crimping Machine for Pouch Cell Sealing


vacuum sealing machine is mainly used for sealing aluminum-laminated case in glove box after injection electrolyte into pouch Li-ion cell or after formation for final seal (polymer Li-Ion cell). It through the precise control of the main vacuum pumping gas tank and pneumatic heat sealing component , to seal the aluminum film pouch case of polymer battery automatically.


Model

TMAX-JK-200  vacuum sealing machine

Source voltage

AC 220V/110V, 50/60HZ

Power

600W

Warranty

One year limited warranty with lifetime support

Advantages

1 Sealing Head adopts copper material, good heat transfer effect,

2 With adjust plate, Can apply to different specifications battery, and the adjusting easily

Vacuum degree

-95Kpa - 0

Sealing head TEM

RT-250℃, adjustable

TEM accuracy

±1.5℃

Sealing pressure

0-7Kg/cm2, adjustable

Sealing time

0-99s, adjustable

Sealing Blade

Hard type (without rubber, only for Al case sealing,not suitable for sealing case with tab in between)

Sealing width

5mm, customized

Sealing head length

200mm customized

Suitable battery size (Inner size)

180*120*10mm

Air source

0.5-0.7MPa (72.5-102psi)

Dimension(L*W*H)

Sealing Unit with Chamber Closed: 470*430*480mm

Sealing Unit with Chamber opened: 470*430*559mm

Control Unit: 420*320*220mm

Weight

About 50kg
