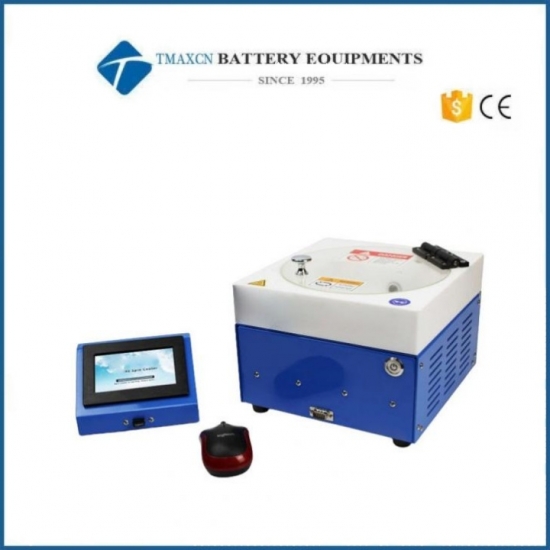

200C Temperature Controlled Vacuum Spin Coater with Acceleration Adjustable
Model Number:
TMAX-4SDimension(L*W*H):
500mm(L) x 400mm(D) x 400mm(H)Net Weight:
20 kg (44 lbs)Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
200C Temperature Controlled Vacuum Spin Coater with Acceleration Adjustable
Key Features：
1. Alarm setting to prevent substrate fly-off
2. Alarm setting to prevent glue penetration
3. Machine reversible
4. Function of prevent power-down protection
5. Acceleration adjustable
6. Temperature heating ： room temperature -200℃
7. Can be placed in the glove box
8. PTFE inner cavity
9. Can add mouse and keyboard
Spin Coater Specifications （KW-4S Spin Coater）
|
Substrate size |
5-50mm |
|
Speed range |
50- 10000RPM |
|
Acceleration range |
10- 10000RPM/S， Adjustable |
|
Motor speed stability |
±1RPM |
|
Spin coating uniformity |
±1% |
|
Heating range |
Room temperature -200℃ |
|
Human machine interface |
4.3-inch touch screen |
|
Communication interface |
Enable to connect with wireless mouse and keyboard： machine can place inside the glove box and operate by remote control outside the glove box |
|
Turn around |
Support forward and reverse |
|
Stylus |
Stylus BAMBOO resistance pen (standard) |
|
Vacuum Pump |
SC-550V |
|
Set data |
Unlimited groups data,10 speeds per group (standard) |
|
Seconds per period |
0- 10000s |
|
Storage data |
Unlimited data |
|
Data protection |
default with power-down protection |
|
Operating voltage(Spin Coater) |
AC100-250V, single phase, 50/60Hz |
|
Operating voltage(Pump) |
AC220V(Standard) AC110V(Optional) |
|
Pumping speed |
≥60L/MIN |
|
Max vacuum |
-85KPA |
|
Sound Level |
≤55db |
|
Spin coater power |
200W |
|
Pump power |
350W |
|
Dimensions(Spin Coater) |
210mm(W)X220mm(D)X160mm(H) |
|
Weight(Spin Coater) |
10KG |
|
Weight(Pump) |
9KG |
|
Relative humidity |
< 85% |
|
Ambient temperature |
0-40℃ |
|
Warranty |
1 year |
