250°C 25T Hydraulic Lamination Heat Calender Press Machine

  • Model Number:

    YLJ-HP88V-250
  • Compliance:

    CE certificate
  • Warranty:

    Two years limited warranty with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

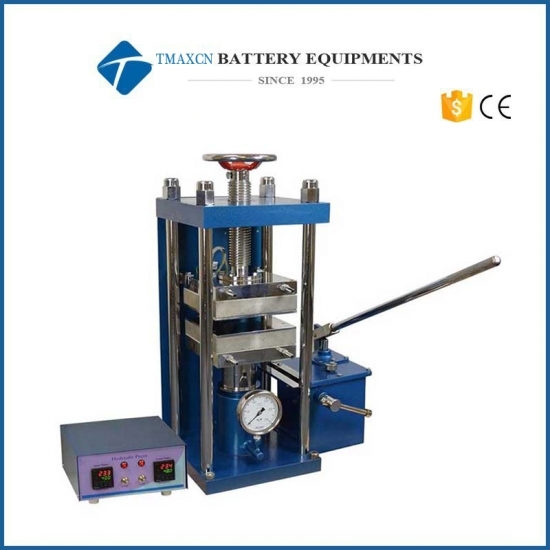

250°C 25T Hydraulic Lamination Heat Calender Press Machine



YLJ-HP88V-250 is consists of a hydraulic press with manually operated oil pump & two heated platens. The temperatures of heated platens are controlled by two digital temperature controllers separately up to 250°C. Water cooling jackets are installed with a heating plate that allows heated plate get faster cooling. One pressure gauge (250 KN) is also mounted to monitor the pressure applied on the plates. It is an excellent tool to prepare polymer and ceramic samples up to 7.5"x7.5".


SPECIFICATIONS:

Max. Working Pressure

25 metric Tone ( 250 KN)

Pressure Gauge

Measuring Accuracy is  +/-1.25 KN

Heated Platen Area


         Platen Area:   200mm x 200mm

         Material:        Casting Aluminium with  5 mm thick Headen Steel with Cr plated

         Surface:          Flat with CNC grinding

Max. Travel Distance

         140mm Max.

Max. Working Temperature

         250°C - continuous

Heating Rate

         3°C/min

Water Cooling Jacket


        Two water cooling jacket are built on the back of top and bottom heating plate separately with 10mm I.D. water pipe connectors. Such a configuration allows you cool the sample as soon as the hot pressing process is completed.



Temperature Control

        Two digital controller installed in one box with one point control and auto-tune faction

        Temperature accuracy ±1°C.

Power Requirement

         208 - 240VAC, 50/60Hz, Single phase,  3000W max.

         Note:  15A circuit breaker is required for 220V,  5' length power cable included, but no plug

Compliance

       CE Certified

Shipping Size

48‘’(L) x 40''(W) x 44''(H)

Shipping Weight

430 lbs

Warranty

        Two years limited warranty with lifetime support


Hot Press Machine




 battery equipment

1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
