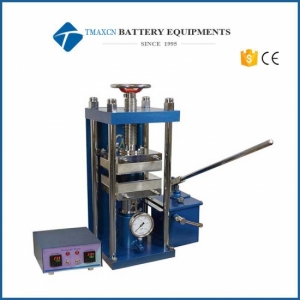

250°C 25T Hydraulic Lamination Heat Calender Press Machine

YLJ-HP88V-250 is consists of a hydraulic press with manually operated oil pump & two heated platens. The temperatures of heated platens are controlled by two digital temperature controllers separately up to 250°C. Water cooling jackets are installed with a heating plate that allows heated plate get faster cooling. One pressure gauge (250 KN) is also mounted to monitor the pressure applied on the plates. It is an excellent tool to prepare polymer and ceramic samples up to 7.5"x7.5".

SPECIFICATIONS:

Max. Working Pressure	25 metric Tone ( 250 KN)
Pressure Gauge	Measuring Accuracy is  +/-1.25 KN
Heated Platen Area	Platen Area:   200mm x 200mm           Material:        Casting Aluminium with  5 mm thick Headen Steel with Cr plated          Surface:          Flat with CNC grinding
Max. Travel Distance	140mm Max.
Max. Working Temperature	250°C - continuous
Heating Rate	3°C/min
Water Cooling Jacket	Two water cooling jacket are built on the back of top and bottom heating plate separately with 10mm I.D. water pipe connectors. Such a configuration allows you cool the sample as soon as the hot pressing process is completed.
Temperature Control	Two digital controller installed in one box with one point control and auto-tune faction         Temperature accuracy ±1°C.
Power Requirement	208 - 240VAC, 50/60Hz, Single phase,  3000W max.          Note:  15A circuit breaker is required for 220V,  5' length power cable included, but no plug
Compliance	CE Certified
Shipping Size	48‘’(L) x 40''(W) x 44''(H)
Shipping Weight	430 lbs
Warranty	Two years limited warranty with lifetime support

1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.

1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
