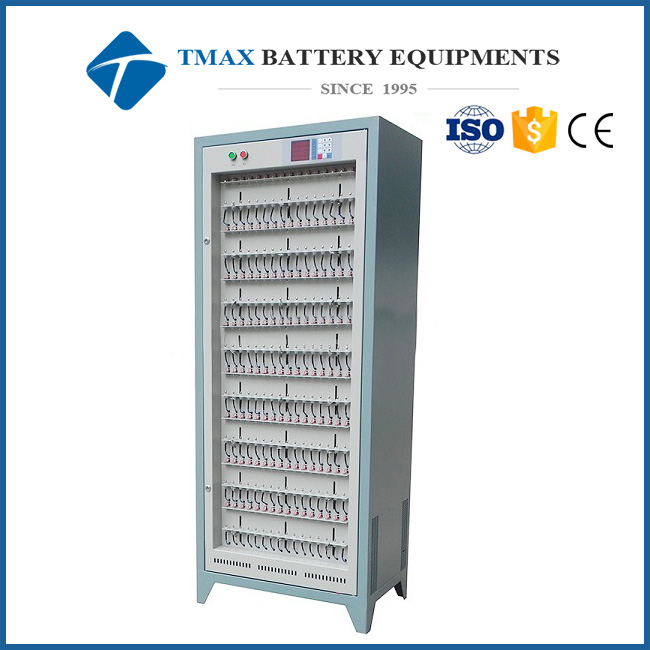

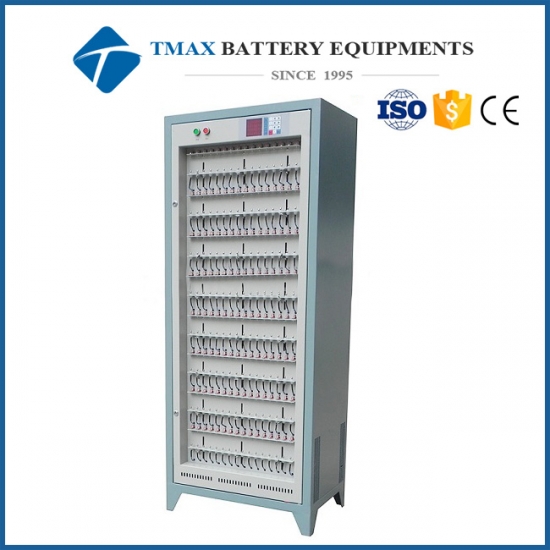

256 Channel Li ion Battery Pouch Cell Charge Discharge Tester Maachine For Polymer Battery
Model Number:
TMAX-256-CDimension(L*W*H):
800*550*1900mmCompliance:
CE certificateWarranty:
2 Years with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
256 Channel Li ion Battery Pouch Cell Charge Discharge Tester Maachine For Polymer Battery
SPECIFICATION
1.This equipment is mainly constituted by the computer system and control software, communication interface and battery detecting cabinet. The Battery detecting cabinet comprises a fixture and placed the plate body of the fixture, charging, constant current and constant voltage source discharge constant current source, storage control circuit, current sampling circuit, voltage sampling circuit,the main control CPU, data memory, microcontroller programming and control panel.
Model |
TMAX-256-C |
Voltage supply |
AC 220V ±5% 50HZ |
Max Power Dissipation |
4500w |
Channel |
256 |
Dimension |
800*550*1900mm |
Support battery height range |
10-95mm( stepless adjustment) |
Clamp spacing |
35mm |
Voltage measurement range |
DC100-4500mV |
Voltage accuracy |
±0.1%FS ±0.1%RD |
Voltage measurement range |
DC100-4500mV |
Voltage resolution |
1mV |
Constant voltage range |
DC2000~4500mV |
Minimum discharge voltage |
2000mV |
Charge discharge current range |
DC5~2000mA |
Current accuracy |
±0.1%FS ±0.1%RD |
Current resolution |
1mV |
Time measurement range |
999min/step |
Time measurement error |
±0.1% |
Working temperature |
0~40 ℃ |
Relative humidity |
≤85% |
