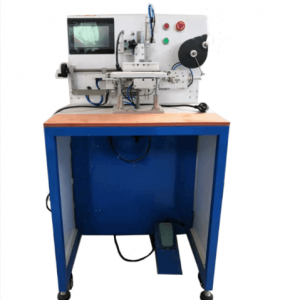

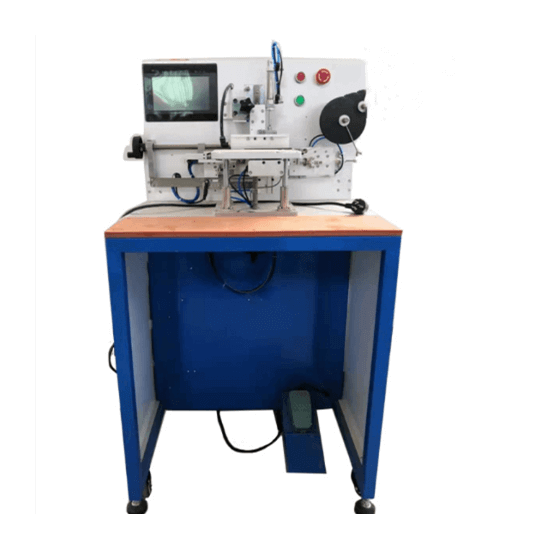

3-1 Tape Wrapping Machin for Polymer Battery/Power Battery/Mobile Cell
Model Number:
TMAX-MYG-3Compliance:
CE CertifiedWarranty:
Two Year Limited Warranty With Lifetime SupportPlace of Origin:
China:
XiamenPayment:
T/T, Credit Card, Paypal, LC, Western Union
3-1 Tape Wrapping Machine for Polymer Battery/Power Battery/Mobile Cell
1. The equipment is simple and easy to learn, easy to operate, with ultra-low failure rate. It is equipped with vacuum pump, which is very energy-saving.
2. The machine solves the insulation package of both sides, bottom, head and tab of polymer built-in battery
3. The adhesive tape has high consistency, improves efficiency and saves labor cost.
It is used for the insulation of both sides, bottom, head and tab of polymer built-in battery (including mobile phone electricity, mobile power supply, power battery, etc.).
Technical parameters:
|
Power Supply |
220V 50Hz 30W |
|
Air Pressure |
0.4-0.8MPa |
|
Applicable Battery Range |
Polymer Cell |
|
Gluing Length |
30-140mm |
|
Gluing Width |
6-16mm |
|
Cell Thickness |
3-8mm |
|
Capacity |
1200-1500 times/h |
|
Overall Dimension |
600*700*1280mm |
|
Weight |
60KG |
