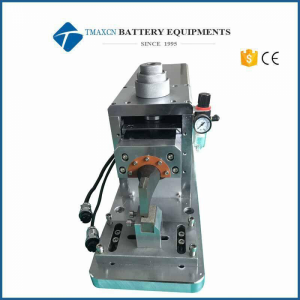

3600W Ultrasonic Metal Spot Welder For Battery Research

  • Model Number:

    TMAX-USW-3600W
  • Input Power:

    3600W
  • Dimension(L*W*H):

    440*160*270mm
  • Compliance:

    CE certificate
  • Warranty:

    One years limited warranty with lifetime technical support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

3600W Ultrasonic Metal Spot Welder For Battery Research


Ultrasonic spot welding machine is an advanced high-tech equipment that converts high-frequency electric energy into a mechanical vibration energy through a transducer and acts on the bases material, to generate high-frequency friction between the surfaces of the two work-pieces until the surfaces of the two bases material are heated and welded together. It can perform spot-like and strip-shaped soldering on thin  materials such as copper, silver, chrome, nickel and other conductive metals. It can be widely used in lead wire of silicon controlled chip leads, fast-fuse holders, electrical lead terminals, lithium ion, nickel point-like, strip-shaped soldering of poles such as hydrogen and nickel-cadmium batteries.


The welding process of an ultrasonic spot welder is a mechanical process in which no current flows through the material and no melting occurs. Moreover, the same or the different alloy materials can achieve the ideal welding, the electrical and the thermal properties are not achieved by other processes. Compared with  fusion welding, ultrasonic welding has low electrical consumption, long life and low labor intensity.


Specifications

Features

Preset welding programs selectable for Al and Cu (Note: Welding power can be readjusted to fit the needs for welding other types of metals such as Au, Fe, Ni, Ag...).

Input Voltage

AC 110V or 220V +/-10%, 50/60Hz

Max. Power Consumption

 3600W

Welding time

0.5~2S

Control method

CPU control

Gas supply source

≥0.5MPa

Welding Area

4mm(L) x 4mm(W) or customized size

 Welding Head

The welding heads and welding bases are included for welding both aluminum & copper current collectors from 2 to 60 layers

Ultrasonic Frequency

20K Hz



Product Dimensions

1. Controller: 360mm(L) x 480mm(W) x 200mm(H)

2. Welder: 200mm(L) x 460mm(W) x 270mm(H)

Net Weight

70kg

Compliance

CE Certificate

Warranty

Two Year limited warranty with lifetime support



Application Notes

Nickel and Aluminum Tabs can be welded onto different types current collecting substrates (Aluminum or Copper) when making battery electrodes.
