-40C-200C Constant Temperature and Humidity Test Chamber
Model Number:
TMAX-408-DCompliance:
CE compliantWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Email:David@battery-equipments.com
Wechat:13506084915
Wechat:13506084915
DESCRIPTION

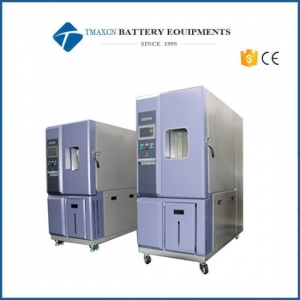

-40C-200C Constant Temperature and Humidity Test Chamber
Temperature humidity test chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Specification
Model
|
TMAX-80(A~F)
|
TMAX-150(A~F)
|
TMAX-225(A~F)
|
TMAX-408(A~F)
|
TMAX-800(A~F)
|
TMAX-1000(A~F)
|
Internal Dimension
WxHxD (mm) |
400x500x400
|
500x600x500
|
600x750x500
|
600x850x800
|
1000x1000x800
|
1000x1000x1000
|
Internal Dimension WxHxD (mm)
|
950x1650x950
|
1050x1750x1050
|
1200x1900x1150
|
1200x1950x1350
|
1600x2000x1450
|
1600x2100x1450
|
TemperatureRange
|
Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C)
High Temperature 150°C |
|||||
HumidityRange
|
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need Dehumidifier)
|
|||||
Analytic Accuracy/
Distribution uniformity of temperature and humidity |
0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H.
|
|||||
Control Accuracy of
Temperature and Humidity |
±0.5°C; ±2.5% R.H.
|
|||||
Cooling System
|
Wind cooling or water cooling/single segment compressor(-40°C, double segment compressor -70°C)
|
|||||
Temperature Rising/Falling
Speed Rate |
Temperature rising approx. 0.1~3.0°C/min
temperature falling approx. 0.1~1.5°C/min; ( The Falling Speed Rate Min.1.5°Cper minute is a special optional condition) |
|||||
Power
|
AC220V 1ph 3 lines, 50/60HZ , AC380V 3ph 5 lines , 50/60HZ
|
|||||
Approx. Weight (Kg)
|
150
|
180
|
250
|
320
|
400
|
450
|
