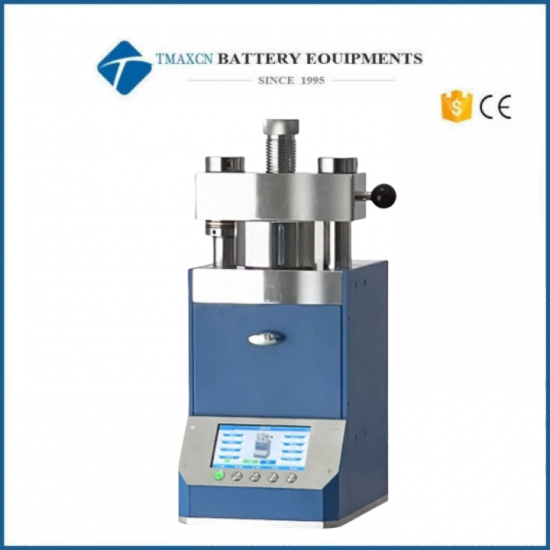

40T 300MPA Programmable Automatic Hot Isostatic Press with 7 Inch LCD Screen

40T 300MPA Programmable Automatic Hot Isostatic Press with 7 Inch LCD Screen

Operation interface (Manual mode)

Standard interface: Various parameters such as pressure, demoulding, time, sample size, etc. can be set in this interface alone.

Pressurization button: Press according to the parameters set on the interface.

Stop button: Press the stop button during the pressurization process to stop the pressurization.

Demoulding button: Press the demoulding button to release the sample according to the demoulding pressure.

Timing switch: The timing function can be turned on and off.

Operation interface (Automatic mode)

Start button: It can be pressurized according to a multi-stage pressurization program.

Stop button: During the pressurization process, you can stop the pressurization process.

List/Curve: The current display state can be switched between list and curve

Setting interface

Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.

Program Settings:Multi-stage pressure procedures and pressure holding times can be set.

Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.

Data management: Previously saved data records can be invoked and modified..

System Settings: Administrators can set various parameters, enter the password "666"

Setting interface

Multi-segment program Settings: Up to 5 segments of pressurized programs can be set.

Invoke button: Invoke the set parameters to the automatic operation interface for pressure.

Save button: Save the set parameters to the database for later invocation.

Back button: Returns to the Settings screen

Mold diagram

Mold operation diagram

Operation procedure

Technical parameter
