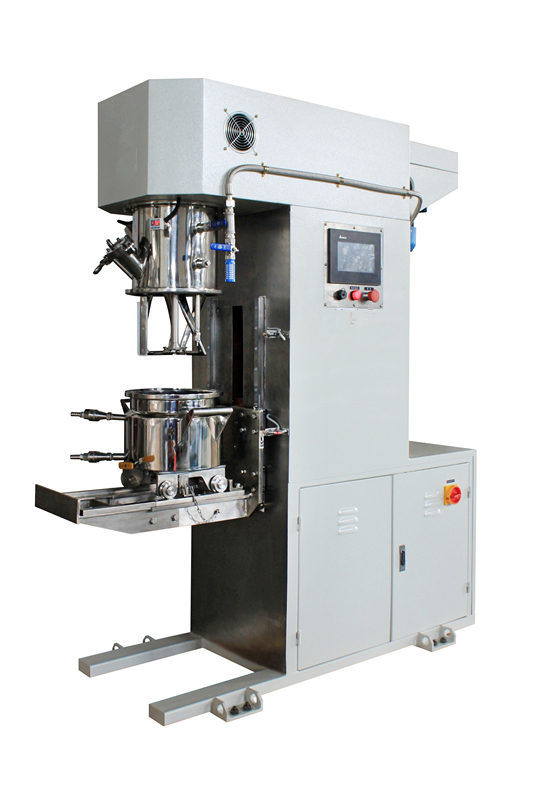

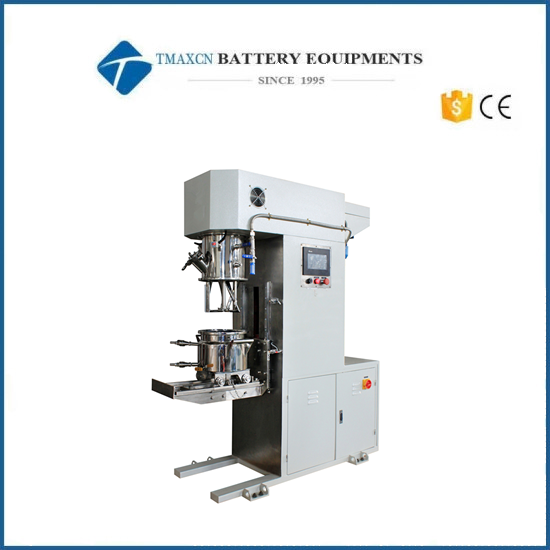

5 Liter Lab Planetary Vacuum Mixer Mixing Machinefor Lithium Battery Electrode Powder and Liquid Making

  • Model Number:

    TMAX-XH5L
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

5 Liter Lab Planetary Vacuum Mixer Mixing Machinefor Lithium Battery Electrode Powder and Liquid Making


1. Equipment features:

Scope of application

Mix and disperse various common battery powders and liquids, and finally get a uniformly mixed material.

Viscosity range for adaptable working conditions≤1.2 million cP.



2. The main parameters of the equipment:

  • Lower barrel parts
  • Total design volume: 8L
  • Effective volume: 2.7-5L
  • Inner diameter of vessel: 240mm
  • Inner depth of container: 180mm
  • Container material: 304 parts in contact with materials
  • Type of temperature regulating jacket: single layer jacket on barrel wall for cooling or heating; single layer jacket on barrel bottom for cooling or heating
  • Temperature regulating jacket interface: G3 / 8 ", equipped with quick opening Union, jacket pressure resistance ≤ 0.4MPa
  • Temperature regulating jacket circulation system: provided by the customer, it is recommended that the jacket water inlet temperature is ≤ 8℃, and the cooling water flow is > 3.5l/min
  • Discharging form: a 1 "downward discharging plunger valve at the bottom of the barrel
  • Design ambient temperature: - 10 ~ + 120°C
  • Mobile mode: caster mobile



Mixing parts

  • Working frequency: 5-50 Hz
  • Mixing power: 1.5kw
  • Impeller speed: 10-98rpm
  • Planetary gearbox speed: 5-50rpm
  • Diameter of impeller: 124mm
  • Impeller style: variable cross-section spiral twist, 90 ° helix
  • Material of agitator: 304
  • Linear speed of agitator: 0.06-0.6m/s
  • Number of agitators: 2
  • Distance between oars: 7 ± 2mm
  • Distance between paddle and barrel wall: 2 + 1mm
  • Distance between paddle and bucket bottom: 2 + 1mm



Dispersion parts

  • Working frequency: 5-50 Hz
  • Decentralized power: 2.2kw
  • Dispersing speed: 610-6100rpm
  • Diameter of dispersion plate: 70mm
  • Scatter plate style: zigzag
  • Material: 304
  • Dispersive linear velocity: 2.2-22m/s
  • Number of distributed disks: 1
  • Number of distributed axes: 1


Wall scraping parts

  • Scraping bracket material: 304
  • Scraping wall board material: PTFE
  • Wall scraping speed: consistent with planetary box speed
  • Removable: detachable design (removed when scraping the wall during high viscosity process)


Base and lifting parts

  • Part material: carbon steel for high rigidity structure
  • Lifting method: hydraulic lifting
  • Lifting guide: high precision linear guide
  • Lifting stroke: ≤290mm



Upper bucket parts

  • Upper barrel material: 304
  • Powder feeding port: DN50 quick installation with sight glass one
  • Liquid feeding port: ISO 1/2 "Quick installation one
  • Spotlight port: DN50 one
  • Vacuum port: G1/2 "inner wire one
  • Exhaust port: shared with the vacuum port
  • Nitrogen port: G1/2 "inner wire one
  • Digital display vacuum meter port: M14×1.5 internal wire metric thread interface one



Control System

  • Electrical cabinet: used for placement of low-voltage electrical components such as frequency converter
  • Operating panel: used to place buttons, knobs, touch screens, etc
  • Power supply: AC 3 × 380V ± 5%, 50 Hz
  • Control mode: electronic control
  • Power control and speed regulation mode: inverter start and control
  • Cooling mode: air cooling
  • Operation mode: touch screen operation
  • Digital temperature display table: material temperature
  • Emergency stop button: one
  • Alarm system: over temperature alarm, over temperature alarm shutdown, alarm shutdown
  • Speed display: the touch screen displays the speed
  • Power indicator: one



Safety interlock system

  • Emergency stop: Press the emergency stop switch, the equipment will stop immediately, and no operation can be performed
  • Start low-speed mixing: you can rotate while lifting the bucket
  • High-speed dispersion: the barrel can be rotated only when it is in place
  • Safety lock during operation: When the machine is running and mixing, the mixing tank cannot be lowered and the mixing tank cannot be opened.
  • Prevent the backflow of vacuum pipeline: the special design of vacuum buffer tank can effectively prevent the phenomenon of vacuum pump oil backflow to the mixing tank
  • Operation failure stop: the inverter has its own overload, overcurrent, overvoltage, leakage, lack of equal protection
  • The mixing barrel rises and falls: the mixing barrel can only rise after it is in place.
  • The vacuum in the mixing tank cannot be lowered without exhausting the vacuum (not returning to normal pressure).
  • The mixing tank can only be started after the high-speed dispersion is in place.
  • After the mixing tank rises to the position, it is equipped with a locking protection system to prevent the mixing tank from falling abnormally after rising to a high position during operation.
  • Dry mixing stage requires the stirring paddle to rotate while raising the bucket.



Other instructions

  • Temperature probe: Pt100
  • Temperature measurement method: the temperature measurement head installed on the barrel wall is used to detect the material temperature
  • Transmission parts bearing: high speed parts are imported bearings, low speed parts are domestic bearings
  • Oil seal: domestic brand, static seal with O-ring, dynamic seal with mechanical seal
  • Lubricating grease: domestic brand
  • Lubricating oil for mechanical seal: imported brand
  • Valve: domestic brand
  • Vacuum design demand: customers must provide their own vacuum system with a pumping capacity of 2l / S (2xz-2)
  • Vacuum holding: - 0.098mpa, pressure holding for 24 hours, higher than -0.085mpa, no leakage into the barrel
  • Total power of host: > 4kw
  • Total weight: about 700kg
  • Equipment size: length 1463mm × width 610mm × height 1770mm
  • Exterior color: beige
  • Ground bearing capacity: 900kg / m2



Consumable parts

No.

Item name

Material

Quantity



Sealing rubber ring of upper cover

Fluorine glue

1



Sealing ring for mirror base

Fluorine glue

2



Gasket for feeding port

Fluorine glue

1



High speed mechanical seal

C+SiC

1



High speed synchronous belt

rubber

1



Scraping panel

Teflon

1



Mirror glass

Toughened type

2



Installation site requirement

No.

Item name

Standard requirements



Workshop height

>2.5m; need a certain height to ensure and consider the need for maintenance.



Door size

Height: > 2.0m; width: > 1.5m; to ensure the machine transportation in and out.



cooling water

To ensure the cooling requirements, it is better to have a forced cooling water supply system; if thermal insulation is required in winter, hot water supply is required.



Heating

In view of the cold weather in the north in winter, in order to prevent the hydraulic oil used for lifting from condensation, it is necessary to ensure the indoor temperature > 20 ° C to ensure the smooth lifting of the machine and the normal operation of the lubrication system.



Installation space

Refer to the general layout of the scheme.



Gas source

5-7 kgf / cm 2, 100 L / min; pneumatic pump drive, etc.



other

No corrosive gas, liquid and explosive gas.
