512 Channel Pouch Cell Capacity Tester Analyzer For Polymer Battery

  • Model Number:

    TMAX-512-C
  • Type:

    Tester Analyzer
  • Dimension(L*W*H):

    1500*1200*2000(mm)
  • Compliance:

    CE certificate
  • Warranty:

    Two Year Limited Warranty With Lifetime Support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

512 Channel Pouch Cell Capacity Tester Analyzer For Polymer Battery

SPECIFICATION

1.This equipment is mainly constituted by the computer system and control software, communication interface and battery detecting cabinet. The Battery detecting cabinet comprises a fixture and placed the plate body of the fixture, charging, constant current and constant voltage source discharge constant current source, storage control circuit, current sampling circuit, voltage sampling circuit,the main control CPU, data memory, microcontroller programming and control panel.

TMAX-512-C Battery forming and grading machine,with 512 channels



Project index

Parameter index

Model

Tester Analyzer TMAX-512-C

Demension

1500*900*1900(mm)

Working power supply

AC 220V ±5%  50HZ

Max Power Dissipation

7000w

Channel no

512

Support battery height range

10-96mm( stepless adjustment)

Clamp spacing

35mm

Voltage measurement range

DC100-4500mV

Voltage accuracy

±0.1%FS ±0.1%RD

Voltage measurement range

  DC100-4500mV

Voltage resolution

 1mV

Constant voltage range

 DC2000~4500mV

Minimum discharge voltage

 2000mV

Charge discharge current range

 DC5~2000

Current accuracy

  ±0.1%FS ±0.1%RD

Current  resolution

  1mV

Time measurement range

 999min/step

Time measurement error

  ±0.1%

Working temperature

0~40

Relative humidity

≤85%

pouch cell machine

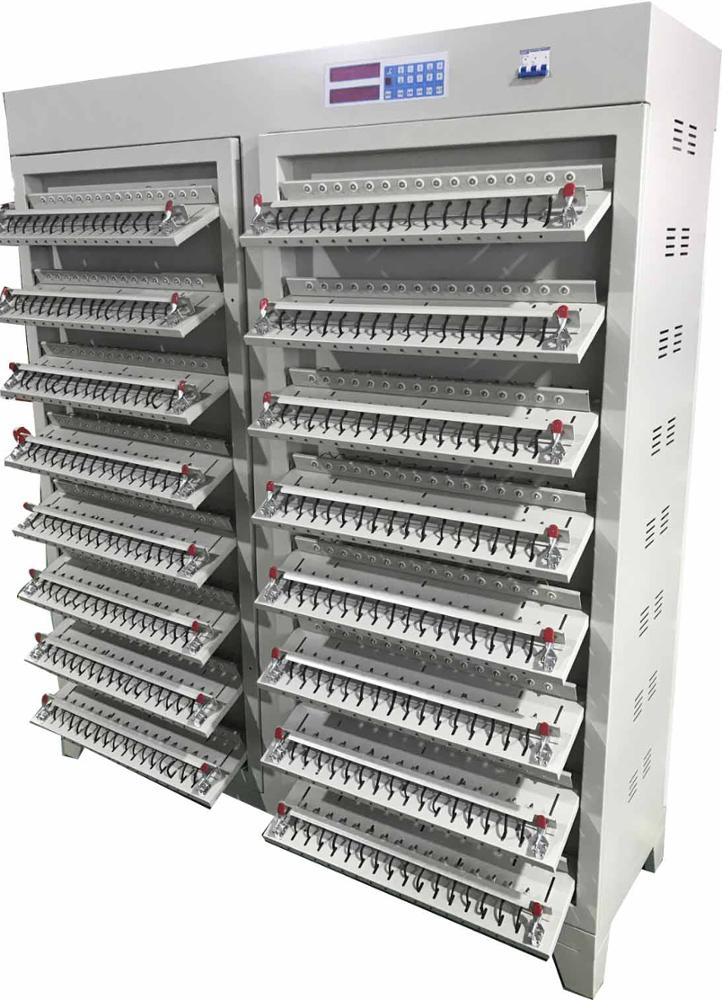

              512 channel tester





 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
