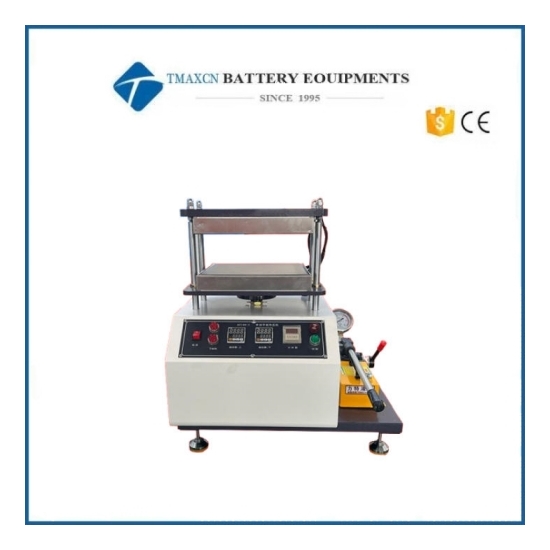

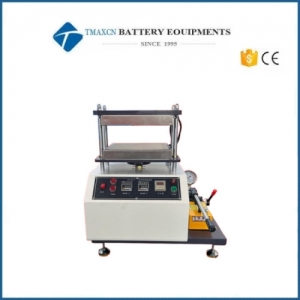

5T Laboratory Small Hydraulic Rubber Vulcanizing Press Machine
Model Number:
TMAX-6014H-5Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

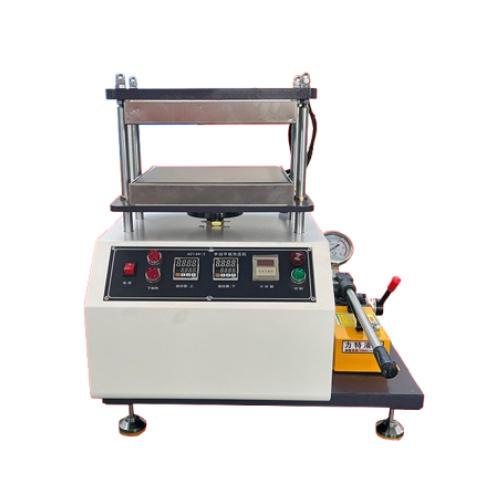

5T Laboratory Small Hydraulic Rubber Vulcanizing Press Machine
Introduction
The 6014H series manual hydraulic flat vulcanizing press is a major equipment used for pressing and forming various rubber model products and non-model products. It can also be used for pressing various thermosetting plastics and foamed rubber and plastic products. It has an independent power mechanism and electrical system, which are centrally controlled by buttons. The working pressure and heating temperature can both be adjusted within a certain range
Technical parameter
|
Model |
6014H-5 |
6014H-10 |
6014H-20 |
|
Pressure capacity |
5T |
10T |
20T |
|
Pressure gauge |
The hydraulic gauge is manually controlled for pressure |
||
|
Pressure plate size (mm metric) |
250*250/300*300/350*350/400*400/450*450/500*500 mm |
||
|
Material of hot press plate |
High-temperature resistant imported steel plate, surface carbonized and quenched, special treatment for fast heat conduction, no deformation under parallel pressure, wear-resistant |
||
|
Hardness of the pressure plate |
50~60HRC |
||
|
Flatness of the pressure plate |
≤ 0.03 mm |
||
|
Flatness of the pressure plate |
≤ 0.16 mm |
||
|
Temperature range |
Room temperature -250℃ [Customizable maximum temperature: 500 ℃] |
||
|
Temperature uniformity |
1.5℃ [The larger the pressure plate, the higher the temperature and the worse the temperature uniformity.] |
||
|
Temperature controller |
Two Omron temperature controllers |
||
|
Temperature control method |
PID self-tuning in combination with high-precision sensors ensures temperature control accuracy of ±1.0℃. |
||
|
Timer |
The LED time range is 0.1s - 99 minutes - 9.9 hours |
||
|
Heater |
The heating mold is built-in cylindrical |
||
|
Heating time |
It takes approximately 15 minutes from room temperature to 160℃ |
||
|
Two hot plates |
The temperature of the hot plate can be set separately |
||
|
Heating method |
Electric heating |
||
|
Cooling method |
Natural cooling |
||
|
Cylinder stroke |
Max 100mm [customizable |
||
|
Cylinder speed |
5mm/s [Manual] |
||
|
Pressure gauge |
0~200kg/sq.cm |
||
|
Mold opening method |
Manual ascent and descent |
||
|
Host volume (mm) |
400x550x600 |
500x550x600 |
550x550x600 |
|
Power supply voltage |
3 phase, AC220V |
3 phase, AC220V |
3 phase, AC220V |
|
Overall weight of the machine |
About 150kg |
About 270kg |
About 350kg |
