    5V 10A 256 Channel Grading Machine for Pouch Cell


    I. Equipment Configuration List

    No.

    Category

    Product Name

    Model

    Quantity

    Remark

    1

    Cell Grading Equipment

    Pouch Cell Grading Machine

    TMAX-XL6512LK-5V6A

    1 set

    256CH5V10A

    2

    Accessories

    Communication Accessories

    Communication cables /

    RJ45 plugs, etc.

    Several

    Suitable for on-site connection



    II. Equipment Scope and Function

    1) Equipment Application Scope:

    Mainly used for cell formation and capacity grading. It is suitable for specific cell types (cell size drawings provided by the user).

    Cell size: 170 mm × 70 mm (customization available for larger sizes).



    2) Supported Test Functions:

    Constant current charging, constant current–constant voltage charging, constant current discharging, resting, etc.



    III. Process Flow Diagram

    Manual loading → Send process step → Process completion → Manual unloading



    IV. Equipment Description

    1) Open-frame structure with four doors, 8 layers each, totaling 32 fixture trays.

    2) Each tray holds 16 cells (16 channels), totaling 512 channels.

    3) The equipment contacts the positive and negative poles of the cells for charge/discharge testing.



    V. Environmental Requirements

    1) Power supply: AC 380V ±10%, 50Hz ±5%, max cabinet input power: 20KW (512CH)

    2) Ambient temperature: 0–40°C

    3) Ambient humidity: ≤75% R.H (no condensation)

    4) Environment: No strong vibration, no corrosive or flammable/explosive gases

    5) ESD protection: Grounding required with independent grounding port

    Ⅵ. Technical Parameters

    No.

    Item

    Specification

    1

    Channel Control Mode

    Whole-machine start testing

    2

    Voltage

    Per-channel voltage range

    Charge: 10 mV ~ 5000 mV

    Accuracy

    ±(0.05%RD + 0.05%FS)

    Resolution

    1 mV

    Minimum discharge voltage

    2000 mV

    3

    Current

    Per-channel current range

    Charge: 10 mA ~ 10000 mA; Discharge: –10 mA ~ –10000 mA

    Accuracy

    ±(0.05%RD + 0.05%FS)

    Resolution

    1 mA

    4

    Time

    Step time range

    1–1000 min/step, accuracy ±0.1%

    5

    Data

    Save interval

    Δt: 1–999 min; ΔU: 10 mV; ΔI: 10 mA

    Statistics

    Open-circuit voltage, average voltage, working time, current, capacity, platform capacity per step; detailed curves and data for each step; number of cells in each capacity segment

    6

    Charging

    Charging modes

    Constant current (CC), Constant current–constant voltage (CC-CV)

    Cut-off conditions

    Voltage, current, relative time, capacity

    7

    Discharging

    Discharging mode

    Constant current (CC) discharge

    Cut-off conditions

    Voltage, current, relative time, capacity

    8

    Cycle

    Cycle measurement range

    1–32 cycles

    Steps per cycle

    16

    9

    Curve Display

    Current curve, voltage curve, capacity curve

    10

    Protection

    Software protection

    Power-off data protection; configurable safety limits: low/high voltage, low/high current, capacity upper limit

    Hardware protection

    Anti-reverse-connection protection module

    11

    Voltage & Current Sampling

    Four-wire connection

    12

    Noise Level

    < 75 dB (measured at 1000 mm)

    13

    Communication (Host PC)

    CAN communication

    14

    Data Output

    Excel, PDF, graphs

    15

    Accuracy Temperature Range

    25 ± 3°C

    16

    Sorting Function

    Yes; supports hardware LED sorting and software sorting

    17

    Inspection Speed

    9 s

    18

    Equipment Failure Rate

    ≤ 2%

    19

    Offline Protection

    Automatically pauses when communication is lost; resumes after confirmation via PC command

    20

    Appearance Color

    International standard warm gray 1C

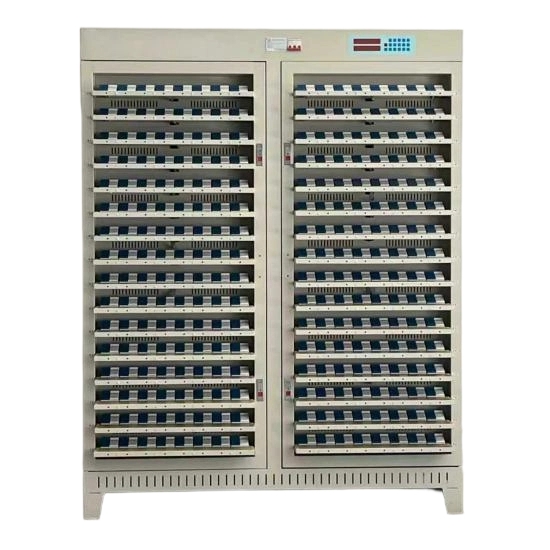

    Ⅶ. Equipment Appearance

    Item

    Description

    Equipment Dimensions



    (For reference only, subject to the actual machine)

    Size (mm)

    L: 1600 mm    W: 550 mm    H: 1850 mm

    Cell Layout

    Cells are placed horizontally on trays.

    Material Loading Method

    Total 64 trays; each tray holds 4 cells; total machine capacity: 256 cells.

    Clamping Method

    Manual clamping

    Cooling System

    Air cooling with axial fans for heat dissipation



    2. Clamp

    Clamp
