5V 120A 64 Channel Battery Grading Machine for Prismatic Cells

Model Number:
TMAX-XL-6064LK-5V120
Compliance:
CE Certified
Warranty:
Two Year Limited Warranty With Lifetime Support
Place of Origin:
China
:
Xiamen
Payment:
T/T, Credit Card, Paypal, LC, Western Union

contact now

Email:David@battery-equipments.com
Whatsapp:+86 18659217588
Wechat:18659217588

DESCRIPTION

5V 120A 64 Channel Battery Grading Machine for Prismatic Cells

I. Equipment Configuration List

No.	Category	Model	Quantity	Remark
1	Cell Grading Equipment	TMAX-XL-6064LK-5V120A	1 set	64CH5V120A
2	Accessories	Communication cables / RJ45 plugs, etc.	Several	Suitable for on-site connection
3	Software	/	1	Suitable for on-site use

II. Equipment Scope and Function

1) Equipment Application Scope:

Mainly used for cell formation and capacity grading. It is suitable for specific cell types (cell size drawings provided by the user,such as 100 Ah, 106 Ah & 173 Ah).

2) Supported Test Functions:

Constant current charging, constant current–constant voltage charging, constant current discharging, resting, etc.

III. Process Flow Diagram

Manual loading → Send process step → Process completion → Manual unloading

Ⅳ. Environmental Requirements

1) Power supply: AC 380V ±10%, 50Hz ±5%, max cabinet input power: 48KW (64CH)

2) Ambient temperature: 0–40°C

3) Ambient humidity: ≤75% R.H (no condensation)

4) Environment: No strong vibration, no corrosive or flammable/explosive gases

5) ESD protection: Grounding required with independent grounding port

Ⅴ. Technical Parameters

No.	Item		Specification
1	Channel Control Mode		Whole-machine start testing
2	Voltage	Per-channel voltage range	Charge: 10 mV ~ 5000 mV
		Accuracy	±(0.05%RD + 0.05%FS)
		Resolution	1 mV
		Minimum discharge voltage	2000 mV
3	Current	Per-channel current range	Charge: 120 mA ~ 120A; Discharge: –120 mA ~ –120A
		Accuracy	±(0.05%RD + 0.05%FS)
		Resolution	1 mA
4	Time	Step time range	1–1000 min/step, accuracy ±0.1%
5	Data	Save interval	Δt: 1–999 min; ΔU: 10 mV; ΔI: 10 mA
		Statistics	Open-circuit voltage, average voltage, working time, current, capacity, platform capacity per step; detailed curves and data for each step; number of cells in each capacity segment
6	Charging	Charging modes	Constant current (CC), Constant current–constant voltage (CC-CV)
		Cut-off conditions	Voltage, current, relative time, capacity
7	Discharging	Discharging mode	Constant current (CC) discharge
		Cut-off conditions	Voltage, current, relative time, capacity
8	Cycle	Cycle measurement range	1–64 cycles
		Steps per cycle	32
9	Curve Display		Current curve, voltage curve, capacity curve
10	Protection	Software protection	Power-off data protection; configurable safety limits: low/high voltage, low/high current, capacity upper limit
		Hardware protection	Anti-reverse-connection protection module
11	Voltage & Current Sampling		Four-wire connection
12	Noise Level		< 75 dB (measured at 1000 mm)
13	Communication (Host PC)		CAN communication
14	Data Output		Excel, PDF, graphs
15	Accuracy Temperature Range		25 ± 3°C
16	Current Calibration Method		Calibration using dedicated calibration fixtures; calibration cycle: every 6 months
17	Sorting Function		Available. Supports hardware LED indicator sorting and upper computer (PC software) sorting
18	Inspection Speed		3 seconds
19	Equipment Failure Rate		≤ 2%
20	Optimal Charging Efficiency		≥ 70% (power supply efficiency)
	Optimal Energy Feedback Efficiency		≥ 60% (power supply efficiency)
	Offline Protection		When communication between the host computer and the lower controller is interrupted or abnormal, the equipment will automatically pause testing. After troubleshooting and confirmation, the test can be resumed via host computer command
	Equipment Appearance		International standard warm gray 1C
	Number of Units Controlled per Computer		1–10 units
	Energy Feedback System		Uses energy-saving DC-DC (14V–5V) step-down chip technology with synchronous rectification; output efficiency up to 90%, reducing workshop temperature. During discharge, DC-DC technology is adopted. The battery voltage is boosted to DC 15V, then converted from DC (15V) to AC (220V) and fed back to the power grid. Compared with traditional discharge methods that generate significant heat, this DC-AC energy recovery system recycles battery energy and improves the workshop thermal environment.

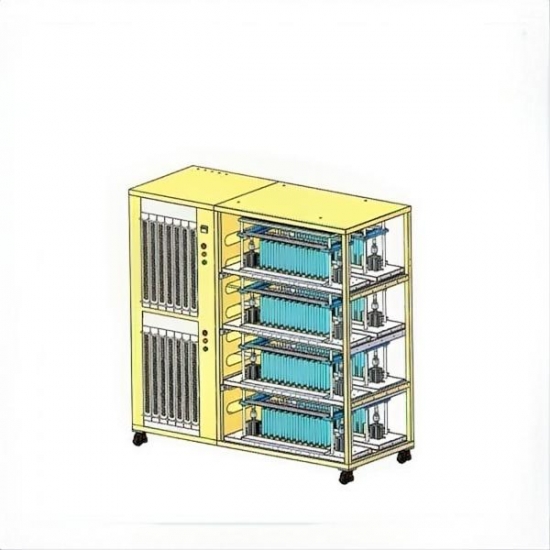

Ⅵ. Equipment Appearance

Item	Description
Equipment Dimensions	(For reference only, subject to the actual machine)
Size (mm)	L: 2140 mm W: 1200 mm H: 1900 mm
Weight	≤500 kg
