5V 20A 128 Channels Prismatic Battery Energy Feedback Life Cycle Tester

Model Number:
TMAX-EF128-20K
Compliance:
CE Certified
Warranty:
Two Year Limited Warranty With Lifetime Support
Place of Origin:
China
:
Xiamen
Payment:
T/T, Credit Card, Paypal, LC, Western Union

contact now

Email:David@battery-equipments.com
Whatsapp:+86 18659217588
Wechat:18659217588

DESCRIPTION

5V 20A 128 Channels Prismatic Battery Energy Feedback Life Cycle Tester

1.Overview

The energy feedback type square battery charge and discharge test machine is used to test the capacity, cycle life, internal resistance, energy density, temperature characteristics and other parameters of the battery, so as to evaluate the performance and reliability of the battery. This test cabinet adopts the energy-saving technology to feed the energy released by the battery back to the power grid, so as to realize the energy-saving, efficient and reliable test process. It is widely used in lithium-ion batteries and nickel-metal hydride batteries formation and capacity testing of nickel-cadmium batteries. The product's stability, energy saving, precision and quality have been welcomed and praised by many battery industries.

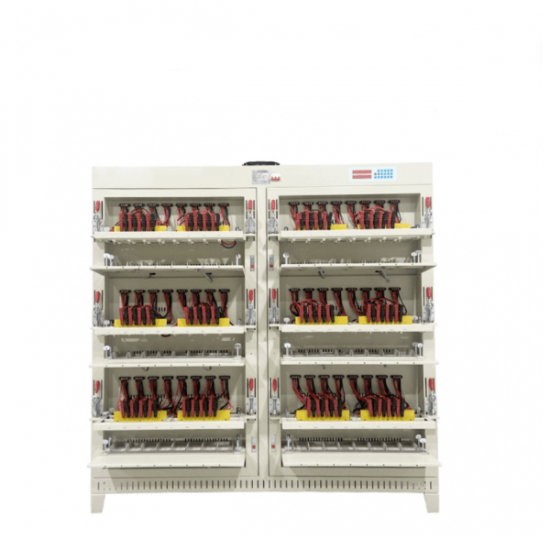

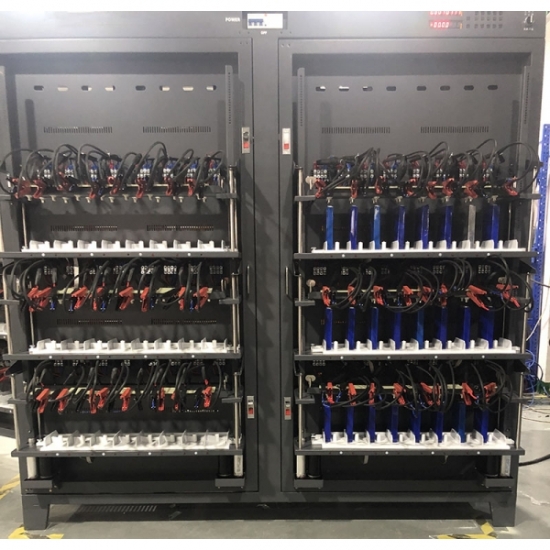

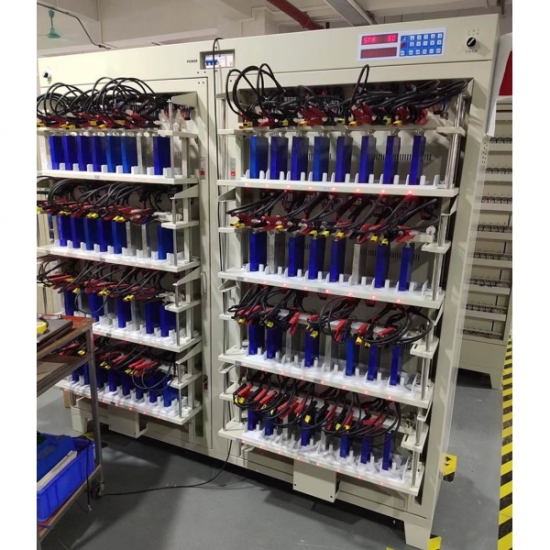

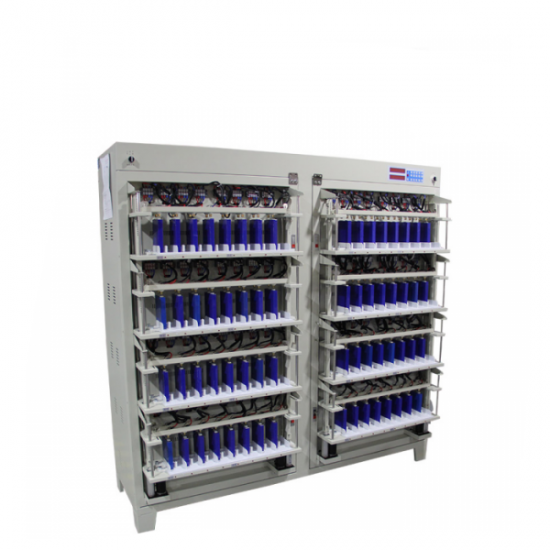

2.The Structure And Appearance Of The Equipment
The structure of this equipment is mainly composed of the following parts:
1)One CPU board, the whole cabinet sends and controls uniformly.
2)There are 32 four-channel constant current plates, arranged evenly in four doors.
3 bidirectional inverter power supplies, each for 8 constant current boards.
4)Two keyboard boards, front and rear double-sided operation.

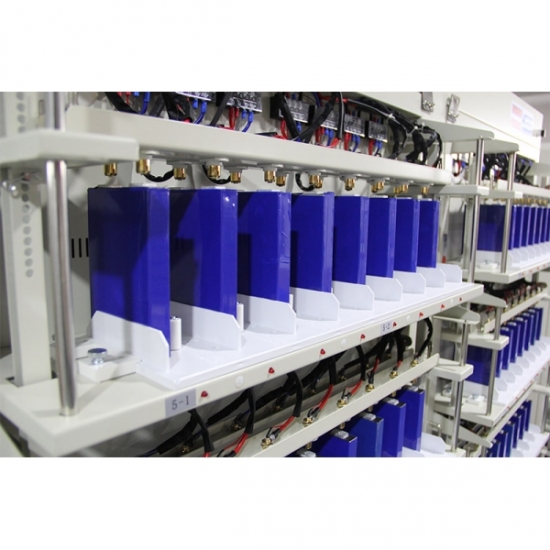

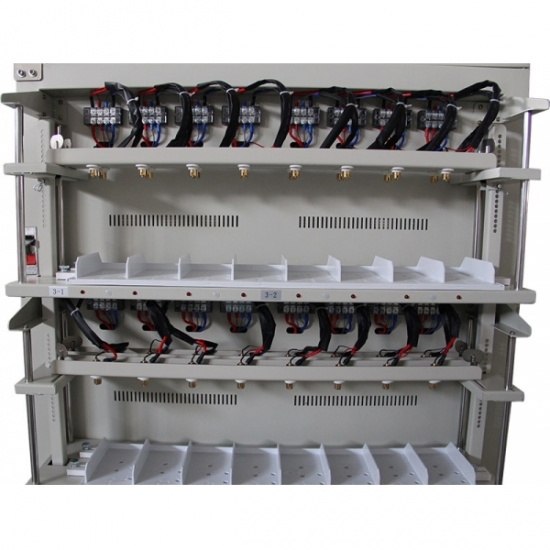

5)A total of 16 pallets, the depth of the pallet is 22cm, the epoxy board is attached for insulation, each pallet has 8 channels, and the downward pressure clamp.

3.System Structure And Working Principle
System composition
1)Lithium battery pack equipment (1-10 units).
2)A computer with USB interface (provided by yourself).
A USB to 485 interface converter and communication line.

A set of TMAX product software.

4.Working Principle
The equipment is connected and controlled by a computer, sending instructions and collecting data, etc.; the keyboard can manually operate the equipment, displaying parameters and status; the constant current board is ordered by the CPU, and has constant current and constant voltage functions; when the battery is charged, the bidirectional power supply converts AC power to 12V Direct current, through the constant currentboard to realize the charging control and detection of the battery; when the battery is discharged, the process is opposite to charging, the battery voltage is first raised to 12V through the constant current board, and then the direct current is converted into alternating current through the bidirectional power supply. Into the AC power distribution network of the factory, thus realizing the energy feedback of the discharged electric energy of the battery.

Significant power-saving effect: According to actual measurement, the power consumption of the device during charging is reduced by more than 40% compared with that of traditional devices. The comprehensive power-saving rate is more than 60%, and the power consumption is more than 60%, which saves a lot of cost for battery manufacturers.

Structure Of Equipment
Number Of Device Channels	128 Channels
Overall Dimension	Width 1850mm× Depth 550mm× Height 1840mm
Color	Dark Grey

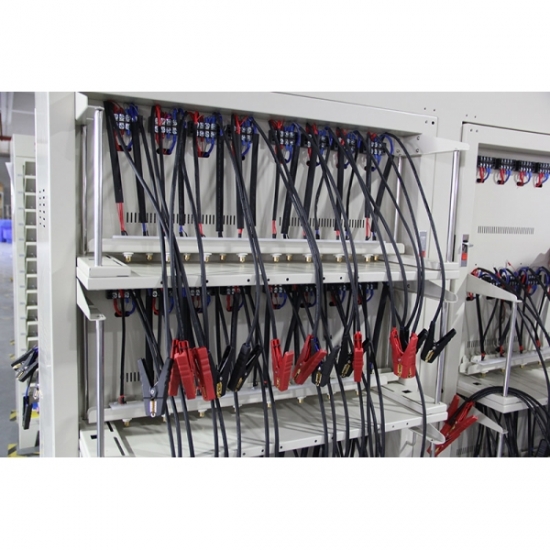

Jig Form	Push Down Four Wire Method Fixture
Fixture Spacing	85mm
Battery Type	Prismatic Cell
Working Power Supply	Three-Phase Five-Wire Ac380V±10%, 50Hz
Ac Current Distortion Rate	≤5%
Power Consumption	≤13Kw
Power Factor	≥0.99
Charging Efficiency Of Whole Machine	≥75%
Feeder Net Conversion Efficiency	≥70%
Equipment Failure Rate	<1%
Work Environment	Temperature -10 ~ 40℃, Relative Humidity ≤80%
Heat-Dissipating Method	Natural Air Intake And Upward Exhaust

Channel Parameters
Voltage Testing Range	Dc 0～5V
Battery Voltage Range	Charge Dc 0～4.5V；Discharge Dc 4.5～2V
Constant Voltage Range	Dc 1～5V
Voltage Accuracy	±(1‰ Reading +1‰ Full Degree), Resolution 1mv
Voltage Stability	≤1‰
Current Range	Charging Dc 200ma ~ 20A; Discharge Dc 200ma ~ 20A
Accuracy Of Current	±(1‰ Reading +1‰ Full Degree), Resolution 10ma
Current Steady Reading	≤1‰
Software Function
Control Mode	Computer Control Equipment Work
Communication Mode	Serial Port, Baud Rate 57600
Workflow Setting	Up To 32 Work Steps And 256 Cycles Can Be Set, With The Function Of Nested Loops
Charging Mode	Constant Current Constant Voltage
Charge Cutoff Condition	Voltage, Current, Time, Capacity
Discharge Mode	Constant Current
Discharge Cutoff Condition	Voltage, Time, Capacity

Protection Function	Over-Voltage, Under-Voltage, Over-Current, Under-Current, Over-Capacity Protection, Outage Protection, Data Breakpoint Recovery
Time Range	0~ 30000 Minutes/Work Step, Time Unit Is Min
Time Accuracy	≤±1‰
Sampling Tour Period	≤1s～60s Optional
Battery Grading	Sort According To (Capacity, Time, Open Circuit Voltage,Discharge Platform, Etc.)
Data Processing	Can Record Voltage, Current, Time, Capacity And Other Data, Automatic Calculation Of Constant Current Charging Ratio, Capacity Loss Discharge Efficiency, Average Voltage, Median Voltage And Other Data, Data Curve Diagram And Cycle Diagram; Can Output Generated Text, Excel, Word Or Mdb Database Format Files
