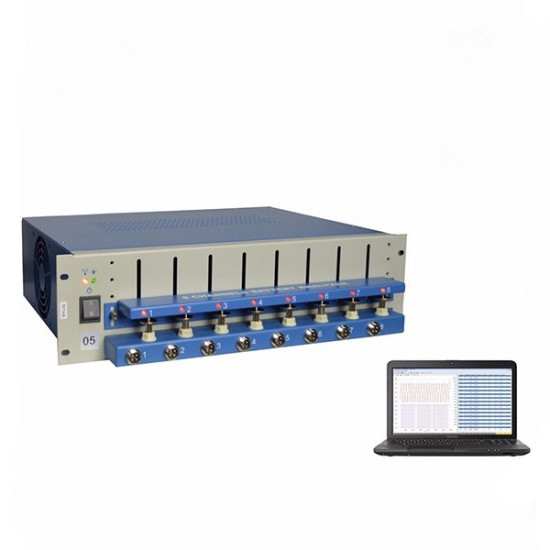

5V5mA Small Current Battery Tester System Adjustable Cell Holders & Software
Model Number:
TMAX-5V5mADimension(L*W*H):
500*550*400(mm)Net Weight:
15kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
5V5mA Small Current Battery Tester System Adjustable Cell Holders & Software
Main technical parameters |
Performance |
|
Source voltage |
AC220V±10% 50HZ |
|
Input power |
373mW |
|
Channel characteristics |
Constant current source and voltage source adopt double closed loop independent structure |
|
Channel control mode |
Independent control |
|
Voltage range per channel |
Charge : 10mV-5V Discharge : 2.5V-5V |
|
Current range per channel |
Charge : 0.01mA-5mA Discharge : 0.01mA-5mA |
|
Step time range |
1s-365*24h,Time format : 00:00:00(H:Min:S) |
|
Record condition |
TimeΔt :1-60000s VoltageΔU : 10mV-5V CurrentΔI : 0.01mA-5mA |
|
Charging mode |
Constant current charge,constant voltage charge, constant current and voltage charge |
|
Discharging mode |
Constant current discharge,constant power discharge |
|
Conditions of constraint |
Time, voltage, current, capacity |
|
Cycle |
Cycle range |
1-65535 times |
Steps pur cycle |
63 |
|
Protection |
Power-down data protection, off-line test function and Safety condition setting protection |
|
Voice |
≤85dB |
|
Host computer communication mode |
RS232 |
|
Date output mode |
EXCEL,TXT,Chart |
|
Communication interface |
Serial ports |
|
Channel number per unit |
8 |
|
Dimension(L*W*H) |
482*378*130mm |
|
Working temperature |
-10-40°C |
|
Working humidity |
≤70%RH |
