5V6A 512 Channel Lithium Battery Analyzer
Model Number:
TMAX-S12-512/6Compliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

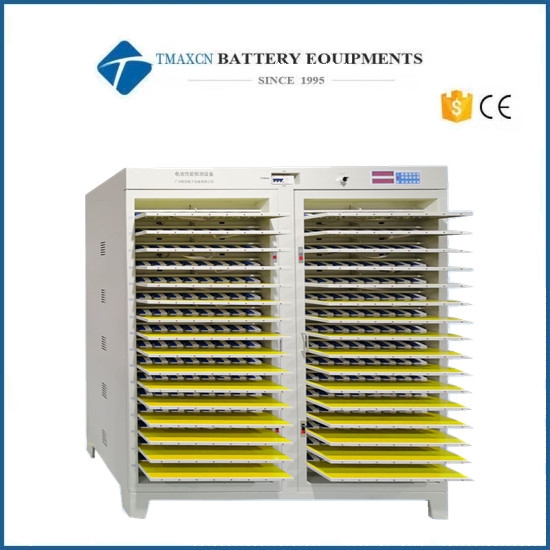

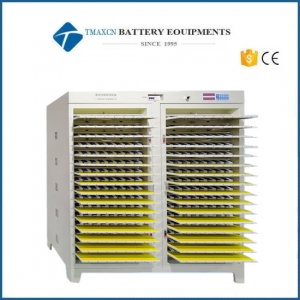

5V6A 512 Channel Lithium Battery Analyzer
Introduction
This product is used for the formation, capacity division and performance parameter detection of lithium batteries. It is a master-slave battery comprehensive test system composed of a computer and a device single-chip computer. It has advanced structure, reliable performance, convenient operation, high efficiency and extremely high performance. Cost-effective, is an indispensable production testing equipment for lithium battery manufacturers, capacitor manufacturers and scientific research units.

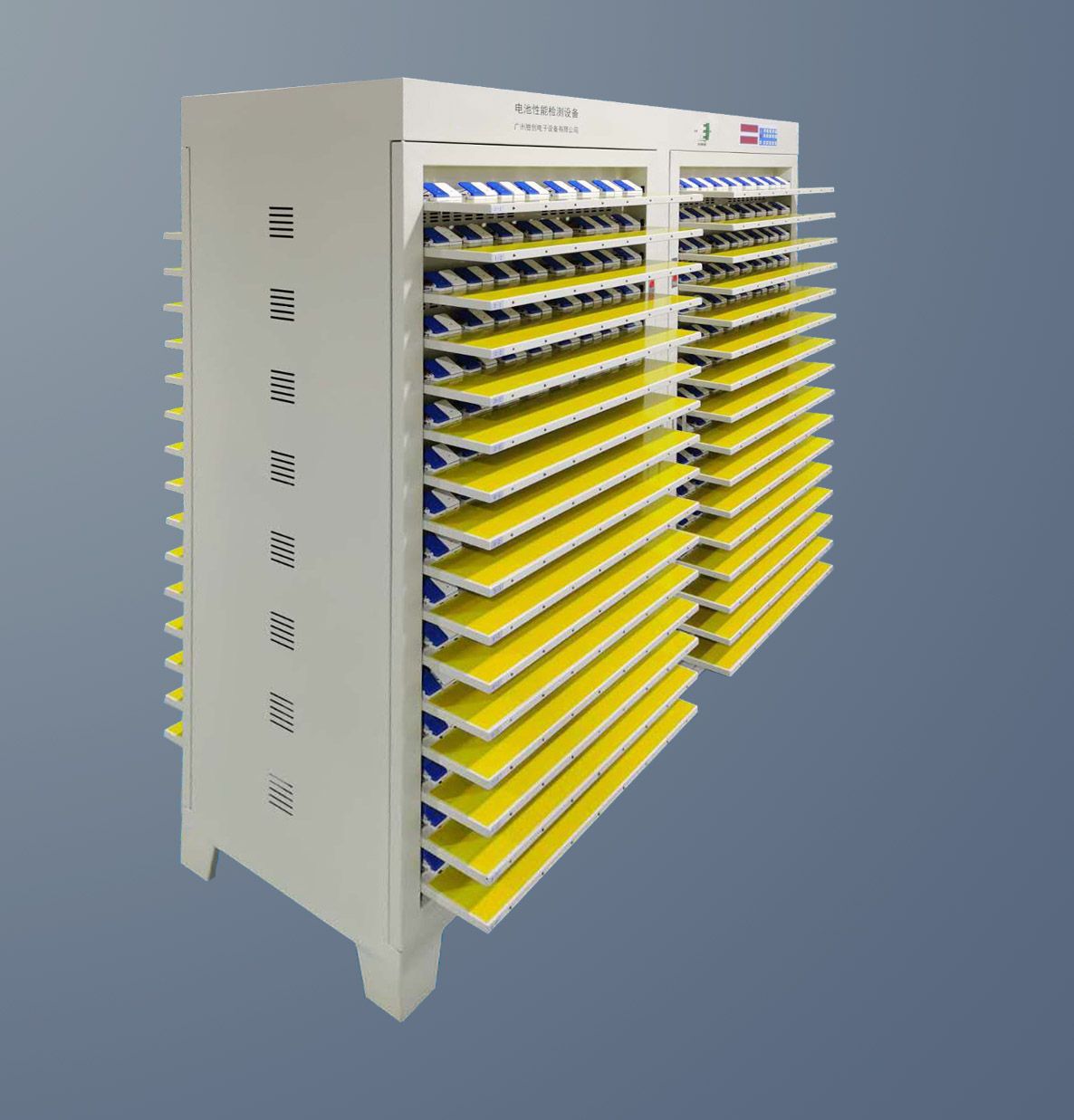

The structure and appearance of the equipment
The structure of this equipment is mainly composed of the following parts:
1. One CPU board, the whole cabinet sends and controls uniformly.
2. There are 64 eight-channel constant current plates, arranged evenly in four doors.
3. There are 32 charging switching power supplies with two sets of outputs, each for 2 constant current boards.
4. Two keyboard boards, front and rear double-sided operation.
5. A total of 64 pallets, the depth of the pallet is 180mm, and epoxy board insulation is attached. Each pallet has 8 channels and supports battery pole pieces within 65mm in width.
System structure and working principle
(1) System composition
1. Lithium battery pack equipment (1-10 units).
2. A computer with USB interface (provided by yourself).
3. A USB to 485 interface converter and communication line.
4. A set of product software.

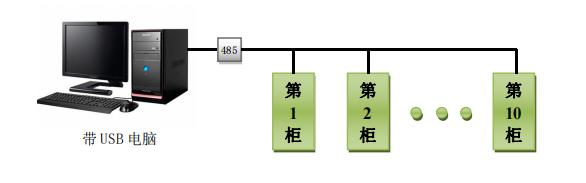

Figure 1 Schematic diagram of system composition
Working principle
1. The equipment is connected and controlled by a computer, sending instructions and collecting data, etc.
2. The keyboard can manually operate the equipment and display the parameters and status.
3. The constant current board is ordered by the CPU, which has the function of constant current and constant pressure.

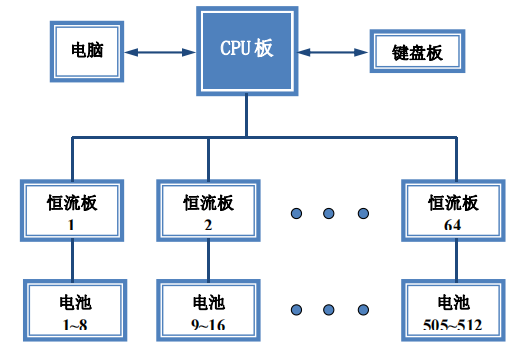

Figure 2 Block diagram of working principle
Technical parameters
|
Equipment structure |
|
|
Device channel number |
The whole machine has a total of 512 channels |
|
Dimensions |
W1680mm*D550mm*H1840mm |
|
Machine color |
Standard beige (can be customized) |
|
Fixture form |
65 Siamese snap polymer |
|
Fixture spacing |
85mm |
|
Support battery specification |
Electrode sheet<65mm, width<fixture spacing |
|
Power supply |
Three-phase five-wire system AC380V±10%, 50HZ |
|
Working power consumption |
≤27KW |
|
Working environment |
Temperature -10～40℃, relative humidity≤80% |
|
Cooling method |
Natural intake, upward exhaust |
|
Channel parameters |
|
|
Voltage measurement range |
DC 0～5V |
|
Battery voltage range |
Charging DC 0～4.5V; discharging DC 4.5～2V |
|
Constant voltage voltage range |
DC 2.5～4.5V |
|
Voltage accuracy |
±(1‰ reading+1‰ full scale) |
|
Voltage stability |
≤1‰ |
|
Current range |
Charging DC 60mA～6A; discharging DC 60mA～6A |
|
Current accuracy |
±(1‰ reading+1‰ full scale) |
|
Current resolution |
Resolution 1mA |
|
Stable current reading |
≤1‰ |
|
Software function |
|
|
Way to control |
Computer control equipment work, whole cabinet control |
|
Communication method |
Serial port, baud rate 57600 |
|
Process settings |
Up to 32 steps and 256 cycles can be set, with nested loop function |
|
Charging mode |
Constant current, constant voltage, constant current and constant voltage |
|
Charging cut-off condition |
Voltage, current, time, capacity |
|
Discharge mode |
Constant current |
|
Discharge cut-off condition |
Voltage, time, capacity |
|
Protective function |
Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity protection, power failure protection, data breakpoint recovery |
|
Time limit |
0～30000 minutes/step, the time unit is min |
|
Time accuracy |
≤±1‰ |
|
Sampling inspection cycle |
≤8s |
|
Minimum data recording frequency |
≤8s |
|
Battery sorting |
Sort by (capacity, time, open circuit voltage, discharge platform, etc.) |
|
Data processing |
It can record voltage, current, time, capacity and other data, automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage and other data, provide data curve graphs and cycle graphs; can output generated text, EXCEL, WORD or MDB database format file |
