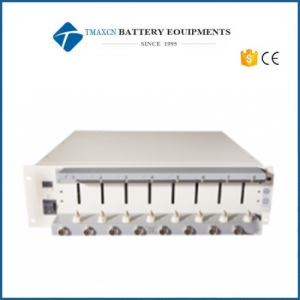

5V6A Lithium ion Battery Tester Cylindrical/Pouch Cell Charging&Discharge Test Machine

  • Model Number:

    TMAX-5V6A
  • Compliance:

    CE certificate
  • Warranty:

    2 Years with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

5V6A Lithium ion Battery Tester Cylindrical/Pouch Cell Charging&Discharge Test Machine


1. TMAX-5V6A Battery Test Equipment is an eight-channel battery analyzer to analyze small coin cells with a range current 0-6A, voltage 0-5V. Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software.

2. This coin cell tester system provides most applications in battery testing fields such as electrode materials research, battery performance test, small scale battery formation, capability grading, battery pack testing, etc.

3. The coin cell tester is suitable for all kinds of coin cell battery such as lithium battery, NI-MH battery, Zn-Mn watch battery and so on.

The triple range greatly improves the accuracy of the battery tester, and more importantly, realizes the CVD (constant voltage discharge) function. At the same time, it also helps customers save costs. At present, there are 5V10mA/50mA/6A/12A to choose from, and more models will be launched soon.


Specifications

Items

Values

Input AC

AC 220V/110V ±10% / 50Hz

Input power

425 W

Resolution

AD:16bit;DA:16bit

Input impedance

≥1MΩ





Voltage

CV output range

25mV~5V

Min discharge voltage

1.0V for universial holder,1.5V for 2m cable

Accuracy

± 0.05% of FS

Stability

± 0.05% of FS





Current

Output range/channel

Range1: 0.5mA-100mA; Range2: 100mA-3A; Range3: 3A-6A

Accuracy

± 0.05% of FS

CV cut-off current

Range1: 0.2mA; Range2: 6mA; Range3: 12mA

Stability

± 0.05% of FS



Power

Output power/channel

30

W

Stability

± 0.1% of FS



Time

Current response time

Max rising time:1ms (10%FS~90%FS)

Working step time

≤(365*24)h/step Time format-00:00:00.000(h、m、s、ms)





Data record

Data record conditions

Min data recordinterval:100ms

Min voltage change:10mV

Min current change:0.2mA; 6mA; 12mA

Frequency

10Hz



Charge

Charge modes

CC、CV、CCCV、CP

Cut-off condition

Voltage、Current、Time、Capacity、-△V



Discharge

Discharge modes

CC、CP、CR、CV

Cut-off condition

Voltage、Current、Time、Capacity







Pulse

Charge

CC、CP

Discharge

CC、CP

Min pulse width

500ms

Pulse counts

Up to 32

Chg and Dischg switch

Supported

Cut-off condition

Voltage、Time

DCIR

Supported



Cycle

Max cycles

65535

Max steps

254

Cycle nest

3





Protection





Safety protection

● Power-off data protection

● Off-line operation mode



● User-defined protection conditions, such as upper and lower limited

current/voltage, delay time, temperature, etc.


Channels feature

Independent pairs of closed loop for constant

Channels control mode

Independent control

Data acquisition method

Kelvin connection

Noise

<85dB

Database

MySQL

Communicatin

TCP/IP

Operating system

Windows 7/8/10 64 bit

Data export

EXCEL、TXT、CSV、PDF、Plot/Graph

Disk drive

500GB

Communication port

Ethernet port

Leak Current

<5μA

Channels per unit

8

Operation and storage environment requirement

Items

Values

Operation environment temperature

0℃~40℃ (When the temperature is 25±10℃, the accuracy error caused by

temperature change is less than 50ppm /℃)


Storage environment temperature

-10℃~50℃

Operation environment humidity

≤70% RH(no moisture condensation)

Storage environment humidity

≤80% RH(no moisture condensation)

Clamps and dimensions

Items

Values

Clamps

Alligator

Polymer

Coin

Dimensions(W*D*H)(mm)

3U1F,480*400*130
