60KN Laboratory Handheld Single Punch Tablet Press Equipment
Model Number:
TMAX-TDP-6Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

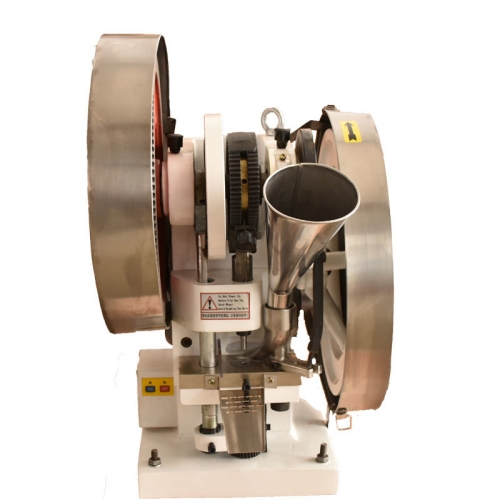

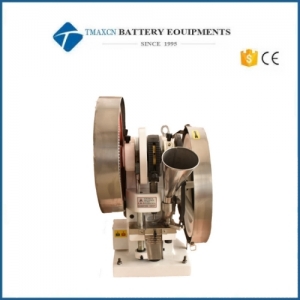

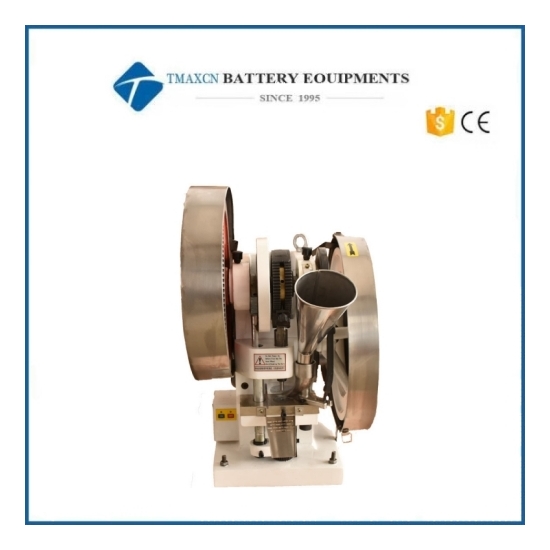

60KN Laboratory Handheld Single Punch Tablet Press Equipment
Introduction
The TDP-6 single-punch tablet press can compress powder and granular raw materials into tablets. It can be widely used in pharmaceutical factories, chemical plants, hospitals, research institutions, laboratories for trial production and small-scale production. This machine has excellent performance, strong adaptability, is easy to use, easy to maintain, small in size, light in weight and simple to operate.
This machine is equipped with only one set of punches and dies. The filling depth of the material, the thickness of the tablet and the pressure can all be adjusted. It can meet the requirements of the pharmaceutical industry for pressing various Chinese and Western medicine tablets and the requirements of other industries for pressing similar products. It is widely welcomed by users in various industries.
The TDP-6 single-punch tablet press can press various types of Chinese and Western medicine tablets such as Sanqi tablets, lozenges, maca tablets, candy tablets, milk tablets, and Western medicine tablets.
Technical parameter
|
Tablet pressing pressure (Kn) |
0-60 |
|
Tablet diameter (mm) |
0-25 |
|
Filling depth (mm) |
0-16 |
|
Tablet thickness (mm) |
0-6 |
|
Production capacity (pcs/h) |
3500 |
|
Motor power (Kw) |
1.5 single phase; 0.75 3-phase |
|
Overall dimensions (mm) |
780*450*690 |
|
Overall machine weight (Kg) |
150 |
