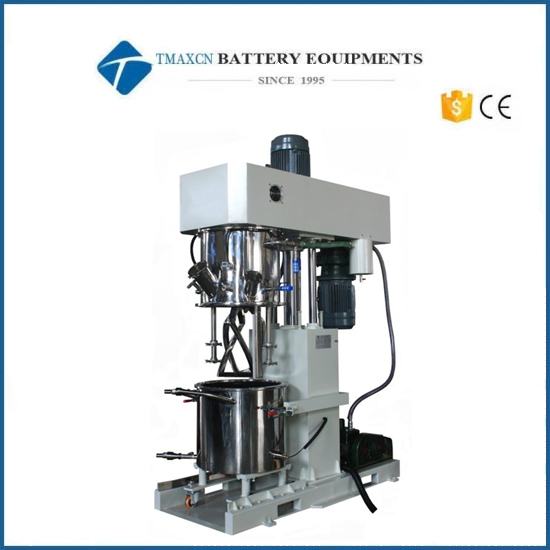

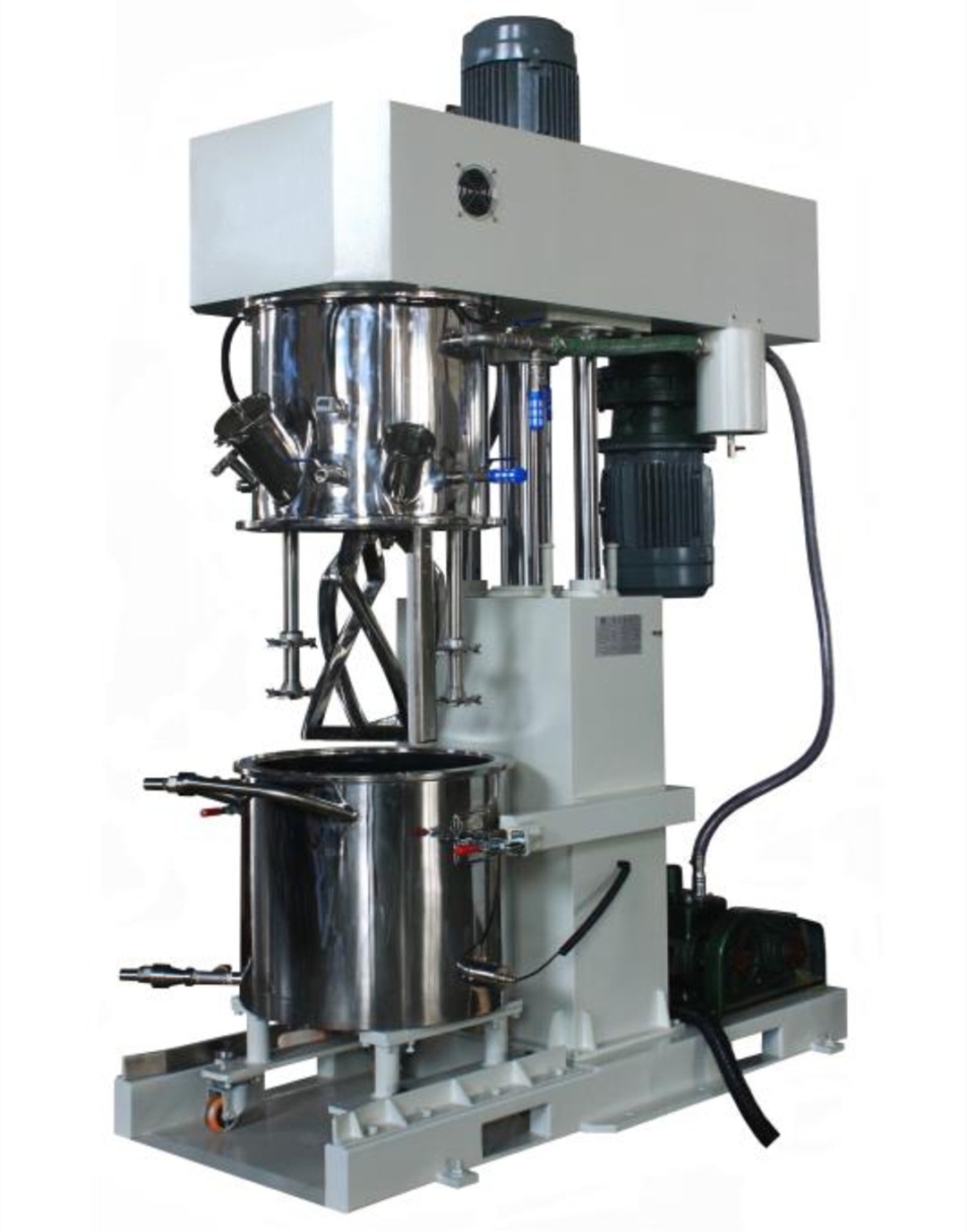

60L Planetary Vacuum Mixer with Cantilever Rising Barrel

Design total volume

88L

Effective volume

29-60L

Inner diameter of container

500mm

Depth inside the container

450mm

Container material

The part in contact with the material 304

The temperature-regulating fixture form

A single-layer jacket on the barrel wall, used for cooling or heating; a single-layer jacket on the bottom of the barrel, used for cooling or heating

Temperature adjusting fixture interface

G3/4", equipped with quick-opening union, jacket pressure resistance ≤0.4MPa

Temperature regulating fixture circulation system

customer-provided, it is recommended that the jacket water inlet temperature is ≤8℃, and the cooling water flow rate is more than 30L/min

Discharge form

a G1-1/2" three-piece discharge ball valve at the bottom of the barrel

Design environment temperature

-10～+120°C

Movement method

caster movable type

Working frequency

5-50hz

Mixing power

7.5kw

Rotation speed of stirring paddle

6-60rpm

Planetary box speed

3-35rpm

Diameter of mixing paddle

286mm

Stirring paddle style

variable cross-section spiral twist type, 90°helix

Mixing paddle material

304

Linear speed of stirring paddle

0.1-1.0m/s

Number of mixing paddles

2

The distance between the paddle and the paddle

4.6±2.5mm

The distance between the paddle and the barrel wall

3±1.5mm

The distance between the paddle and the bottom of the barrel

4±1mm

Working frequency

5-56hz

Dispersion power

11kw

Dispersing speed

315-3530rpm

Dispersion disc diameter

110mm

Dispersion plate style

zigzag

Dispersion plate material

304

Dispersion linear speed

2 -20m/s

Number of scattered discs

4

Number of dispersion shafts

2

Scraping bracket material

304

Scraper board material

PTFE

Wall scraping speed

consistent with the planetary box speed

Removable

Removable design (removed when scraping the wall during high-viscosity process)

Part material

carbon steel for high rigidity structure

Lifting method

electric lifting

Lifting guide

high-precision linear guide

Lifting stroke

≤570mm

Upper barrel material

304

Powder feeding port

quick-opening interface DN100, with 90 sight glass one

Liquid feed port

ISO standard 1" quick connector one

Spotlight port

DN75 tempered glass sight glass one

Vacuum port

G 3/4 "one

Exhaust port

G3/4" one

Spare port

G3/4" one

Digital display vacuum meter port

M14×1.5 internal wire metric thread interface one

Electrical cabinet

used to house low-voltage electrical components such as frequency converters

Manual operation panel

used to place buttons, knobs, meters, etc.

Power supply

AC 3×380V±5﹪, 50Hz

Control method

electric control + hydraulic control

Power control and speed regulation mode

inverter start and control

Cooling method

 air cooling and liquid cooling

Operation mode

the corresponding button + knob on the panel of the electric cabinet

Digital temperature display meter

material temperature

Emergency stop button

one

Alarm system

over temperature alarm, over temperature alarm shutdown, alarm shutdown

Speed display

the panel meter shows the speed

Power indicator

one

Timer

one, control dispersion and stirring at the same time

Note

If you select the man-machine interface system configuration, the related content of the control system is integrated into the touch screen for control

Emergency stop

Press the emergency stop switch, the equipment will stop immediately, and no operation can be performed

Start low-speed mixing and mixing

You can rotate while lifting the bucket

High-speed dispersion

The barrel can only be rotated when it is in place

Safety lock during operation

When the machine is running and mixing, the mixing tank cannot be lowered and the mixing tank cannot be opened.

Prevent the backflow of vacuum pipeline

The special design of vacuum buffer tank can effectively prevent the phenomenon of vacuum pump oil backflow to the mixing tank

Operation failure stop

the inverter has its own overload, overcurrent, overvoltage, leakage, lack of equal protection

The mixing barrel rises and falls

the mixing barrel can only rise after it is in place.

Other

The vacuum in the mixing tank cannot be lowered without exhausting the vacuum (not returning to normal pressure).

The mixing tank can only be started after the high-speed dispersion is in place.

After the mixing tank rises to the position, it is equipped with a locking protection system to prevent the mixing tank from falling abnormally when it rises to a high position during operation.

Dry mixing stage requires the stirring paddle to rotate while raising the bucket.

Temperature measuring probe

Pt100

Temperature measurement method

The temperature probe on the wall of the barrel detects the temperature of the material

Bearings for transmission components

High-speed components are imported bearings, and low-speed components are domestic bearings

Oil seal

Domestic brand, O-ring for static seal, mechanical seal for dynamic seal

Lubricating grease

Domestic brand

Mechanical seal lubricant

Imported brand

Cylinder

Domestic brand

Petrol station

Domestic brand

Valves

Domestic brands

Vacuum design requirements

Customers must prepare their own vacuum system. The pumping capacity is 8L/S (2X-8)

Vacuum maintenance

-0.098Mpa, keep the pressure for 24 hours higher than -0.085Mpa, no leakage into the barrel

Total power of host

>22kw

Weight of the whole machine

About 1450kg

Equipment size

L2050mm*W1120mm*H2090mm

Appearance color

Beige

Floor load

1500kg/㎡
