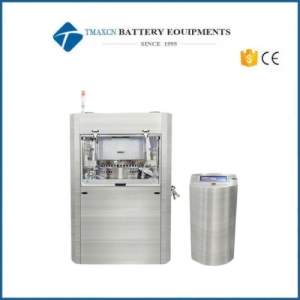

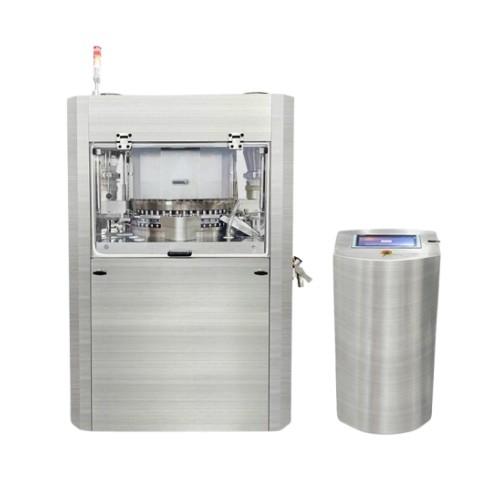

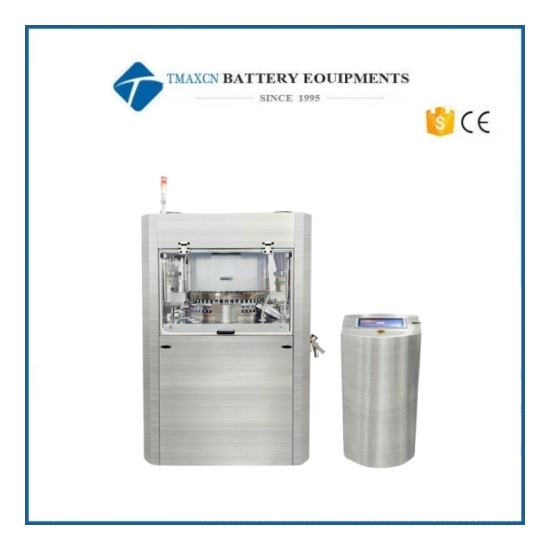

620000pcs/H Automatic High Speed Single Rotary Punching Press Machine
Model Number:
TMAX-ZP-65DCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
620000pcs/H Automatic High Speed Single Rotary Punching Press Machine
Introduction
Tablet presses can continuously press powder or granules into round tablets, irregular-shaped tablets, two-color tablets, ring-shaped tablets, etc. They are the preferred products for large-scale production in pharmaceutical, chemical, electronic, food and other enterprises, and meet GMP production requirements.
Technical parameter
|
Model |
ZP-51D |
ZP-65D |
ZP-83D |
ZP-99D |
|
Number of dies |
51 |
65 |
83 |
99 |
|
Tablet pressing pressure, pre-pressing |
The main pressure is 150kn, and the pre-pressure is 150kn |
The main pressure is 150kn, and the pre-pressure is 150kn |
The main pressure is 150kn, and the pre-pressure is 150kn |
The main pressure is 150kn, and the pre-pressure is 150kn |
|
Tablet diameter |
25mm |
16mm |
13mm |
10mm |
|
Compressible tablets |
Circular, irregular, two-color, ring-shaped |
Circular, irregular, two-color, ring-shaped |
Circular, irregular, two-color, ring-shaped |
Circular, irregular, two-color, ring-shaped |
|
The filling track is controlled by a servo motor |
The average sheet weight accuracy is ≤±2% |
The average sheet weight accuracy is ≤±2% |
The average sheet weight accuracy is ≤±2% |
The average sheet weight accuracy is ≤±2% |
|
Compressible materials |
Powder or granules |
Powder or granules |
Powder or granules |
Powder or granules |
|
Filling depth |
20mm |
18mm |
18mm |
18mm |
|
Tablet thickness |
1-8mm |
1-8mm |
1-8mm |
1-8mm |
|
Turntable speed |
10-80 rpm |
10-80 rpm |
10-80 rpm |
10-80 rpm |
|
Production capacity |
470000 pcs/h |
620000 pcs/h |
790000 pcs/h |
950000 pcs/h |
|
Motor power |
11KW |
11KW |
11KW |
11KW |
|
Voltage |
380V/220V/50Hz |
380V/220V/50Hz |
380V/220V/50Hz |
380V/220V/50Hz |
|
Size (mm) |
1310*1305*2010 |
1310*1305*2010 |
1310*1305*2010 |
1310*1305*2010 |
|
Weight |
5510 kg |
5510 kg |
5510 kg |
5510 kg |
