Pressure

6 metric tons ( 10 MP on pressure gauge ) Max.

Hydraulic Pump

12T manual pump is built-in on the bottom of the frame.  The 24t Hydraulic pump can be ordered at extra cost.

Bottom Hydraulic Cylinder Travel Distance

25 mm

Top Support Screw Adjustable Height

150 mm

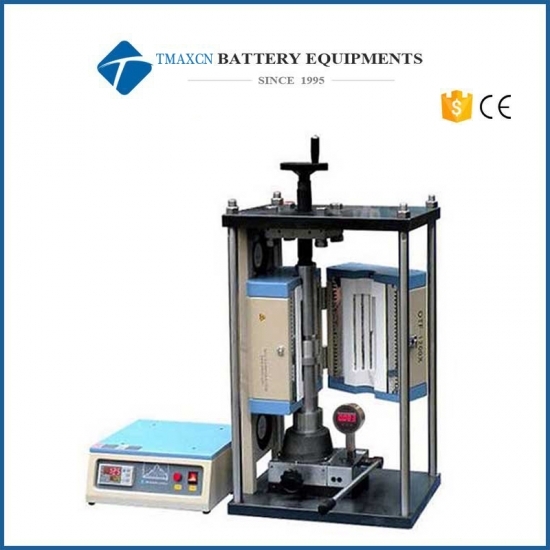

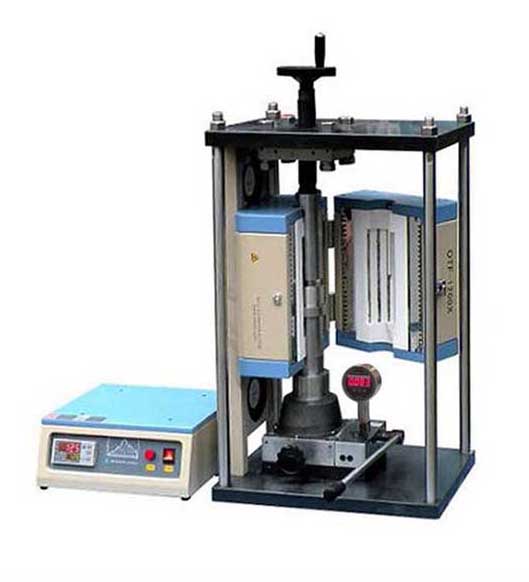

Heating Chamber & Temperature Control & Pressure gauge

·         Split furnace with 55mm diameter heating chamber

·         Max. working temperature: 1000ºC

·         30 segments programmable temperature controller with auto tune PID and over-heating protection

·         Digital Pressure Gauge with max. pressure setting ( click the pic below right to see detail specs)

Furnace Power Supply

Single Phase AC 208~240V, 1.2KW

Machine Dimensions

300mm(L) x 280mm(W) x 550mm(H)

Net weight

350 lbs

Shipping Dimensions

15"(L) x 15"(W) x 26"(H)

Weight of shipment

400 lbs with 49"x40"x47"  dimension

Option Press dies & Pushing Rod for the hot pressing

·         Pressing die is not included.

·         Pressing die supporting is not included, please prepare yourself.

·

·         Please click the picture below to choose a die based on Max.working temperature in air. For higher temperature die, you may use Al2O3  or SiC die, which we don't supply at this moment.

·         Please pay attention for Max. working pressure on your die. Never go beyond the die's Max. pressure limit at given temperature, otherwise, the die may be deformed or cracked.

·

·         Here is the example of pressure comparison table using Refractory Alloy Die under 400ºC

·         The maximum pressure in the press is 10Mpa, apply pressure >10Mpa is strictly prohibited!

·

·           The pressure applied to the die can be estimated as the below:

       ( Gauge Pressure x 0.38 ) / (D) ,

       ( D is the die 's diameter in CM, pressure unit is T/cm2 )

      For example, die's diameter is 2 cm, pressure shown on gauge is 10MP, then pressure applied to the die is 1.9T/cm2 e.g 1900Kg/cm2, 190 MP

Compliance

·         CE Certified

Warranty

·         Two years limited warranty with lifetime support
