8 mm Width Nickel Tabs with Adhesive Polymer Tap as Negative Terminal for Pouch Cell
Model Number:
TMAX-Tab5Dimension(L*W*H):
It can be customizedCompliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
DESCRIPTION

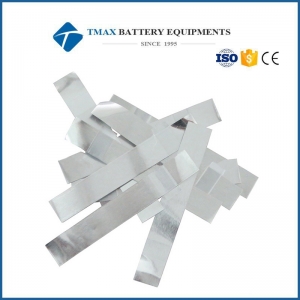

8 mm Width Nickel Tab with Adhesive Polymer Tap as Negative Terminal for Pouch Cell
SPECIFICATION
Material: Nickel 99.99%
Length: 48mm Length can be customized
Width: 8mm Width can be customized
Thickness: 0.09mm in Aluminum Tab Thickness can be customized
Adhesive Polymer Tape is attached on the tab for immediate hot sealing
Adhesive Polymer Tape is attached on the tab for immediate hot sealing
Application: Connect to anode current collector as polymer battery negative terminal
Net Weight: 320mg/pcs
Gross Weight: 20g (Tabs with Box)
Max. Loading Current: 10A
Max. Loading Current: 10A
