Alternating Temperature Humity Cabinet Equipment
Model Number:
TMAX-408-DCompliance:
CE compliantWarranty:
Two years limited warranty with lifetime technical supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

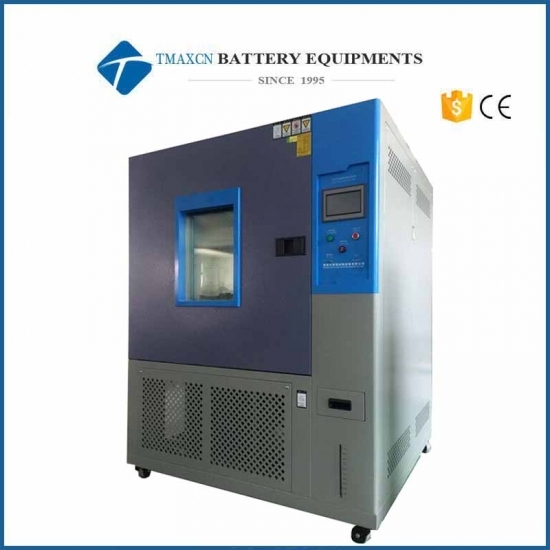

Alternating Temperature Humity Cabinet Equipment
Temperature humidity testchamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Specification
Model
|
TMAX-80(A~F)
|
TMAX-150(A~F)
|
TMAX-225(A~F)
|
TMAX-408(A~F)
|
TMAX-800(A~F)
|
TMAX-1000(A~F)
|
Internal Dimension
WxHxD (mm) |
400x500x400
|
500x600x500
|
600x750x500
|
600x850x800
|
1000x1000x800
|
1000x1000x1000
|
Internal Dimension WxHxD (mm)
|
950x1650x950
|
1050x1750x1050
|
1200x1900x1150
|
1200x1950x1350
|
1600x2000x1450
|
1600x2100x1450
|
TemperatureRange
|
Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C)
High Temperature 150°C |
|||||
HumidityRange
|
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need Dehumidifier)
|
|||||
Analytic Accuracy/
Distribution uniformity of temperature and humidity |
0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H.
|
|||||
Control Accuracy of
Temperature and Humidity |
±0.5°C; ±2.5% R.H.
|
|||||
Cooling System
|
Wind cooling or water cooling/single segment compressor(-40°C, double segment compressor -70°C)
|
|||||
Temperature Rising/Falling
Speed Rate |
Temperature rising approx. 0.1~3.0°C/min
temperature falling approx. 0.1~1.5°C/min; ( The Falling Speed RateMin.1.5°Cper minute is a special optional condition) |
|||||
Power
|
AC220V 1ph 3 lines, 50/60HZ , AC380V 3ph 5 lines , 50/60HZ
|
|||||
Approx. Weight (Kg)
|
150
|
180
|
250
|
320
|
400
|
450
|
1.We supply machineswith battery technology support.
2.We supplyfull set oflithium battery equipmentfor lab research, pilot scale research and production line.
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
