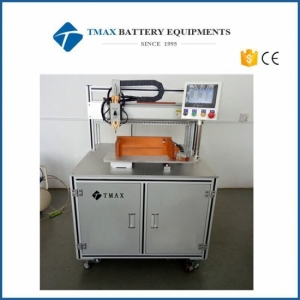

Automatic 18650 Cells Single Side Spot Welding Machine

  • Model Number:

    TMAX-DH-400
  • Compliance:

    CE certificate
  • Warranty:

    1 Year with lifetime support
  • Delivery Time:

    20 days
contact now
DESCRIPTION

Automatic 18650 Cells Single Side Spot Welding Machine


Here is our product video link:

https://www.youtube.com/watch?v=kRgDQdwkN_M



This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding.

Features :

1.Support break point start, support automatic start and manual start mode conversion.

2.It has a false spot welding and out of spot welding alarm function.

3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.

4.Welding needle replacement forecast reminder.

5.Own welding current monitoring system, real-time monitoring of welding current.

Model

TMAX-DH-400

X-axis travel

400mm

Y-axis travel

400mm

Spot welding speed

0.5s / point; 1800pcs / h

Maximum speed of motor drive

300mm/s

Number of groups for storing files

999 groups

Operating system

Embedded system + man-machine screen

Transmission

Stepper + imported precision linear guide (optional servo + screw)

Power supply

Single-phase  220V ± 10% / 50Hz ± 10%

Power

<1500w

Air supply

0.2 ~ 0.4Mpa

Weight

150KG

Dimensions

About 900mm*900mm*1300mm

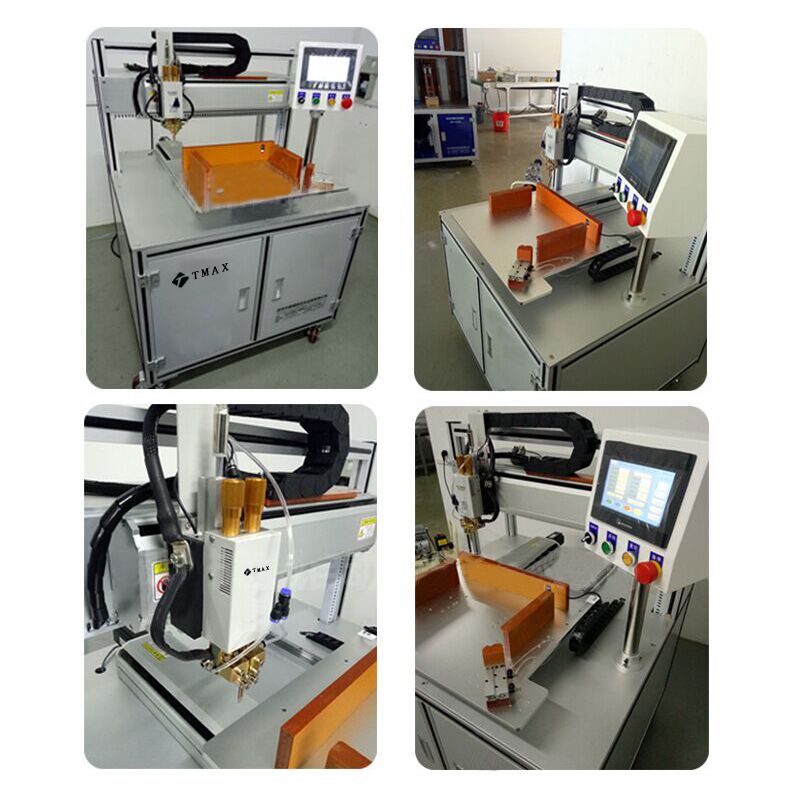

Spot Welding Machine

Spot Welding MachineSpot Welding Machine







 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
