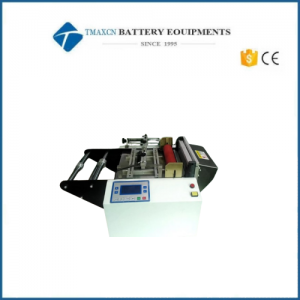

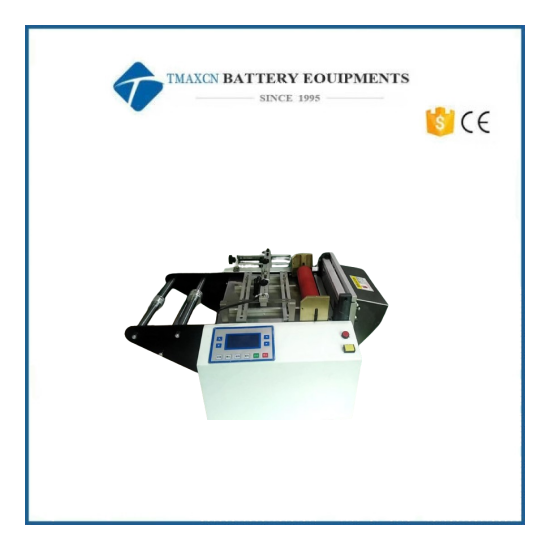

Automatic Microcomputer Cutter Machine For Leather/Nickel Strip/PVC Heat Shrinking Tube Cutting

 Automatic Microcomputer Cutter Machine For Leather/Nickel Strip/PVC Heat Shrinking Tube Cutting

Introduction

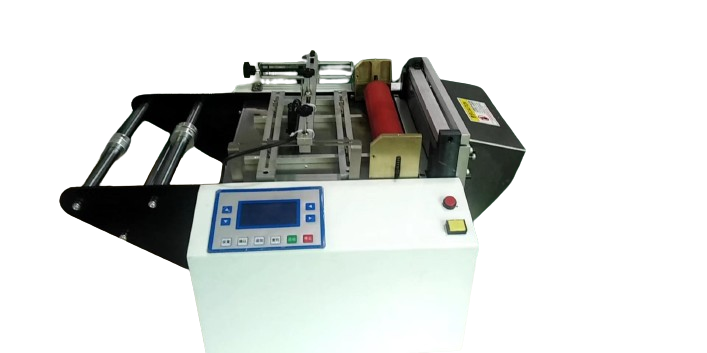

The machine adopts microcomputer numerical control display device, cutting strip length/quantity, free setting of feeding speed, equipped with adjustable roller feeding mechanism, both sides automatically adjust the pressure and lift, can quickly discharge material, with thimble feeding mechanism, effectively prevent material scratch, mainly suitable for high-speed cold/hot strip full/half cut. High precision, less loss, machine design in line with ergonomic principle, simple operation and high automation.

Application

Widely used in electronics industry, auto and motorcycle parts industry, clothing and leather industry, electrical appliances, motors, toys, transformers and other industries.(Different materials have different requirements)

Characteristic

1. Special mechanical structure and special tools, with professional software control to completely solve the problem of uneven incision: to achieve the incision level /Accurate accuracy.

2.. Independent development of special cutting machine motion control system, core technology, and suitable for various industries equipment fixed length cutting.

3. Full Chinese LCD large screen display, operation at a glance, simple and convenient.

4. High-speed feeding, microcomputer program control accuracy is high.

5. The length and speed can be adjusted continuously to achieve high efficiency.

6. Adjustable cutting tool speed, fully control the cutting machine high and low speed.

7. Set active group accumulative and total accumulative count.

8. Batch pause and delay time can be set.

Parameters

1. Power supply: 220V

2. Cut length: 0.1mm-----9999.9mm

3. Cutting width: 0 --280mm;

5. Weight: 45KG

6. Tool material: imported SKD2

7. Feed speed: adjustable

8. Specification: L650*W530*H360mm

9. Power: 750W

10. Motor:

Feed: 86 stepper motor

Cutter: AC motor

11. Stepper motor driver: LITH-HZX-300D

12 Feeding roller: silicone roller

13. Color tracking and positioning cutting: a set of electronic eye mechanism. 14. Aluminum type discharge rack: bearing capacity within 15~20KG
