Automatic Polymer Lithium Battery Electrode Terminal Tab Folding Machine
Model Number:
TMAX-QJ2Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

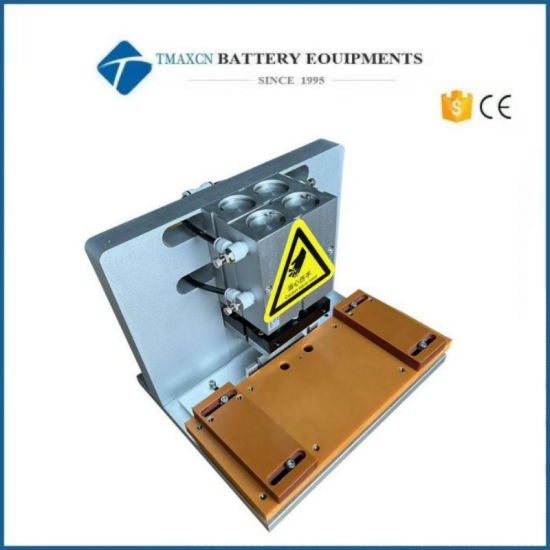

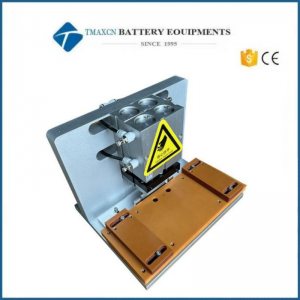

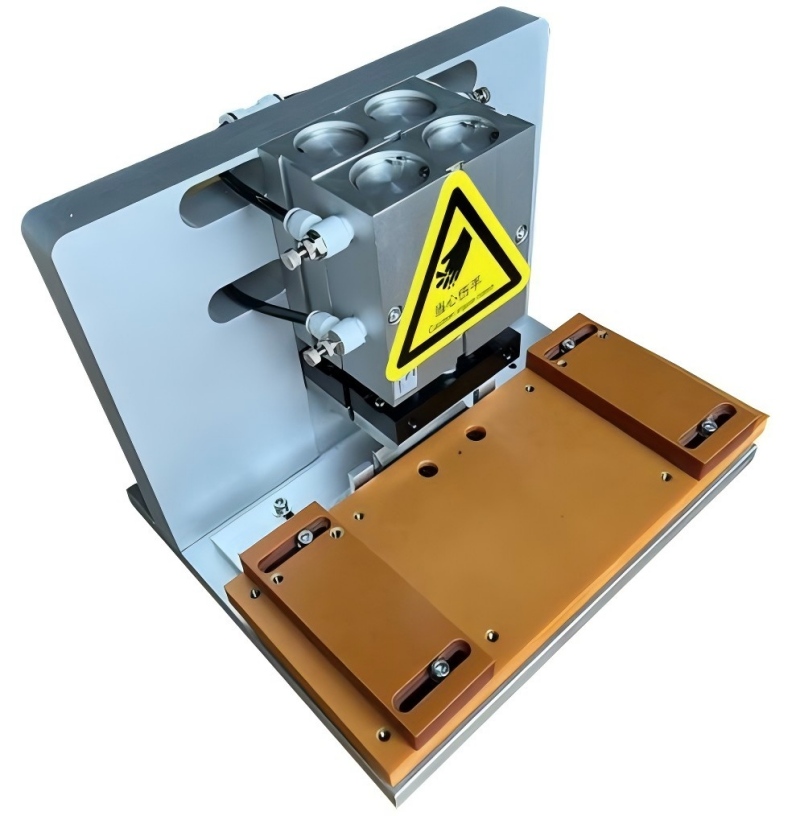

Automatic Polymer Lithium Battery Electrode Terminal Tab Folding Machine
I. Product Overview
This device enables 90º bending of polymer battery tabs, suitable for mobile phone batteries, power banks, and power batteries. It features a user-friendly design with a foot-operated switch for convenient operation.
II. Features
1. The device is compact and simple, easy to operate, with an ultra-low failure rate.
2. This device resolves the issue of battery tab bending.
3. Used for bending polymer-built-in battery tabs (including smartphone batteries, power banks, and power batteries).
III. Scope of application
|
NO. |
Item |
Parameter Range |
remarks |
|
1 |
Polymer cell length |
30-200mm |
|
|
2 |
Polymer cell width |
20-300mm |
|
|
3 |
Polymer cell thickness |
2-12mm |
|

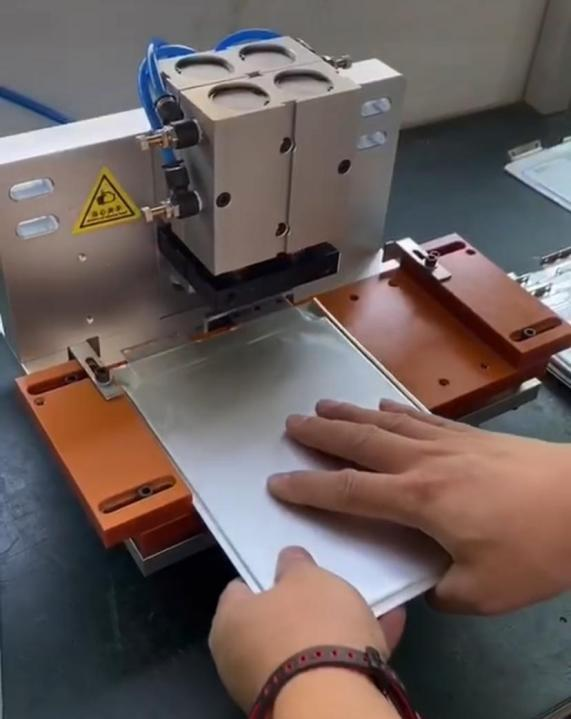

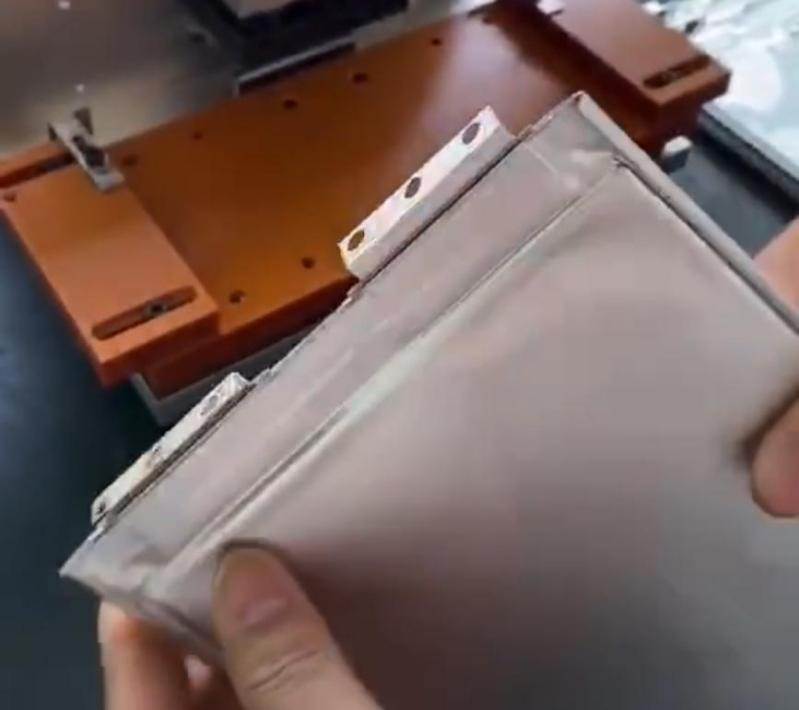

IV. Bending Effect Demonstration
V. Parameter
|
No. |
Project |
Parameter |
|
1 |
Device name |
Polymer battery terminal fold machine |
|
2 |
Product model |
TMAX-QJ2 |
|
3 |
Supply voltage |
Ac 220v±10% 50hz |
|
4 |
Gas pressure of the air source |
0.4-0.7mpa |
|
5 |
Driving method |
Pneumatic drive + pedal switch activation |
|
7 |
Total weight of the device |
Approximately 20 kg |
|
8 |
Outline dimension |
L300mm*w300mm*h240mm |
|
9 |
|
|
