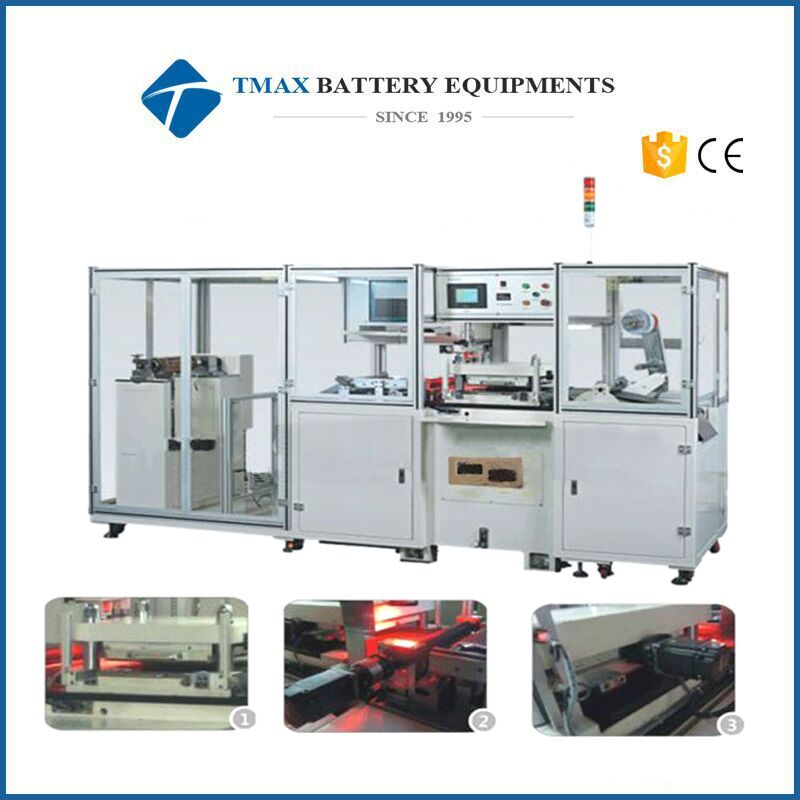

Automatic Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films
Model Number:
TMAX-05-200-AFCFType:
Punch Forming MachineDimension(L*W*H):
1950*950*1860mmCompliance:
CE certificateWarranty:
2 year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Automatic Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films
SPECIFICATIONS

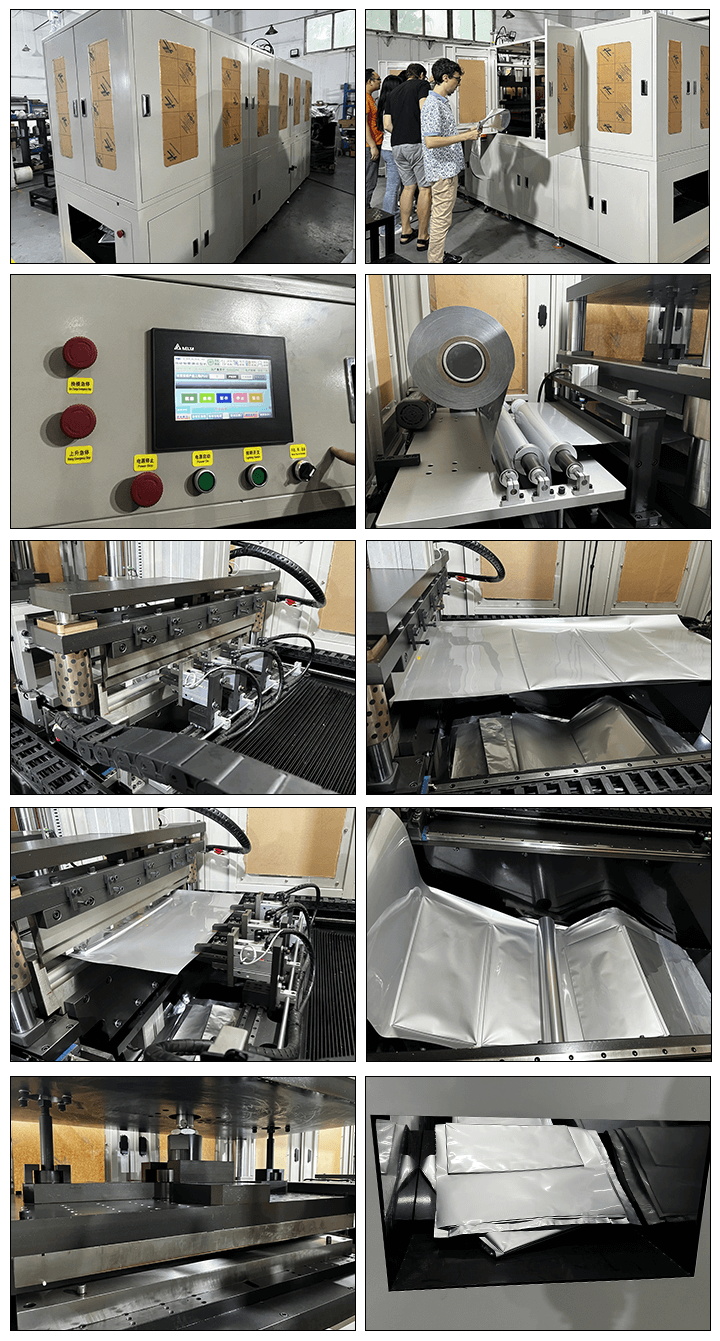

1 This machine is used for lithium polymer battery pouch continuous and automatic punching forming.
2 Working process :
|
Model |
TMAX-05-200-AFCF |
|
Source voltage |
AC 220V, 50HZ |
|
Power |
1000W |
|
Air compression |
≥0.6MPa, 15L/S |
|
Operating platform size |
400*300mm |
|
Feeding width |
Max : 300mm |
|
Cutting length |
Adjustable |
|
Aluminum laminated film thickness |
0.11-0.2mm |
|
Cylinder pressure |
10T |
|
Material roller diameter |
Max : 250mm |
|
Dimension |
1950*950*1860mm |
|
Weight |
1T |
|
Depth of parallelism |
0.02mm |
|
Aluminum film stretching force |
0-5N, adjustable |
|
Punching depth |
0-6mm |
|
Knife lift |
5 000 000 times |
|
Output |
400-800EA/H |
