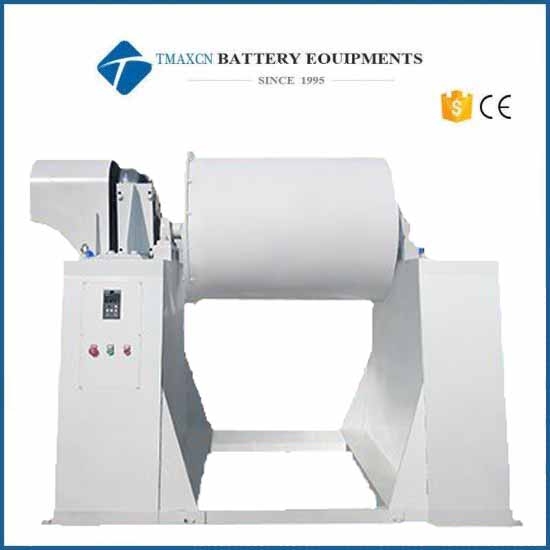

Batch Production Large Roll Ball Mill Machine

Model Number:
TMAX-QM-500L
Compliance:
CE certificate
Warranty:
1 year limited warranty with lifetime support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 days

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

Batch Production Large Roll Ball Mill Machine

Large roll ball mill is a kind of equipment used for ultra-fine grinding and mixing for batch production, which is also called rolling machine altar. The machine is preferred equipment for scientific research, teaching, experiment and production due to its advantages such as beautiful design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials and etc.

Working Principle

When ball mill works, the grinding media and the materials of the cylinder are rotated to a certain height. Due to the gravity, they fall down from the tube wall. The materials are crushed by impact action of the grinding media, and friction and shearing action of grinding media’s rolling and sliding.

Advantages

Optimal design of rotating speed is adopted in the machine, where mill jar is dragged to rotate by rubber roller, balls inside the jar make incline flow movement and disperse materials, thus it obtains best effects of grinding. As result, materials are ground to micron powder. Timing control panel is adopted in the machine with controlling functions of pausing and cumulative timing, and you may set working time according to requirement at any time. It saves time and labor, and is easy for operating.

Feature

The machine is extensively applied to in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.

Application Cases of Planetary Ball Mill

Large Roll Ball Mill

Main Parameters of Large Roll Ball Mill
Main Parameters of Large Roll Ball Mill
Model No.	Volume (L)	Rotate Speed Range (rpm)	Material Capacity (L)	Power Supply	Available Jars	Feed Size (mm)	Output Granularity (mesh)	Adjustable Mode of Rotate Speed
QM-100L	100	20~45rpm	35	2.2KW/380V	Carbon Steel, Stainless Steel, Nylon Liner, Alumina Ceramic Liner, PU(polyurethane) Linner, PTFE Liner.	≤20	≥300	Frequency adjuster or Fixed setting for buyer's options
QM-200L	200	20~40rpm	70	4KW/380V		≤20	≥300
QM-300L	300	20~38rpm	105	5.5KW/380V		≤20	≥300
QM-500L	500	20~36rpm	175	7.5KW/380V		≤20	≥300
QM-1000L	1000	20~34rpm	350	11KW/380V		≤30	≥300
QM-2000L	2000	20~34rpm	700	22KW/380V		≤30	≥300

Besides the planetary ball mill machine, our factory provides all kinds of mill pots，like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

Large Roll Ball Mill

Suggestions for Matching Solution About Mill Jars & Materials

Large Roll Ball Mill

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.

Large Roll Ball Mill

Suggestions for Matching Solution About Grinding Medium & Materials

Large Roll Ball Mill
