Battery Coating NMP Vapor Dual-Filtration System For Cylindrical Cell Production
Model Number:
TMAX-MSK-NMP-2Compliance:
CE certificateWarranty:
Two Years limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

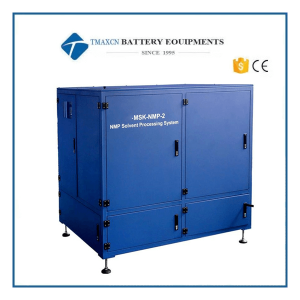

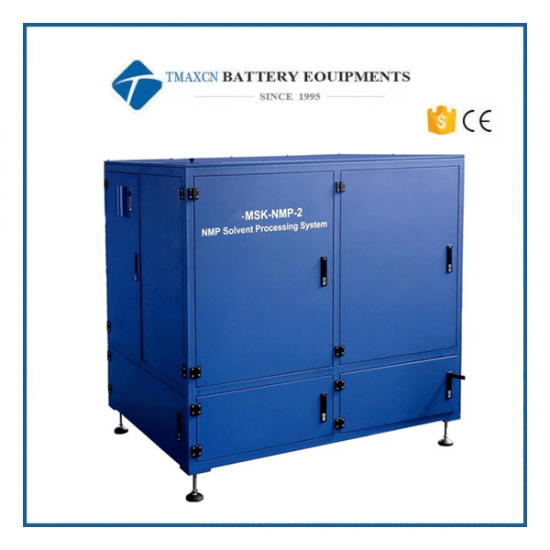

Battery Coating NMP Vapor Dual-Filtration System For Cylindrical Cell Production
Features
MSK-NMP-2 is a CE Certified Dual-Filtration System for NMP(N-Methyl-2-pyrrolidone) Vapor of Li-ion Battery coating. It can be used to filter the vapor formed from the process of coating and drying with the dual-filtration level in Li-ion battery R&D. Water-filter design provides dedusting, NMP filtering, and vapor purification methods with the roll to roll coating.
Specification
|
Structure |
SS 304 |
|
Features |
· Dual-filtration level · NMP filtering |
|
Working Voltage |
Three-phase AC380V 50 Hz/60 Hz |
|
Power |
2 KW |
|
Working Temperature |
0 - 40℃ |
|
Filling Gas Temperature |
<=150℃ |
|
Capacity |
1800 m³/h |
|
Recycle Rate |
>=80% |
|
Recycle Object |
Vapor |
|
Inlet Flow Rate |
1800mm³/h |
|
Product Dimensions |

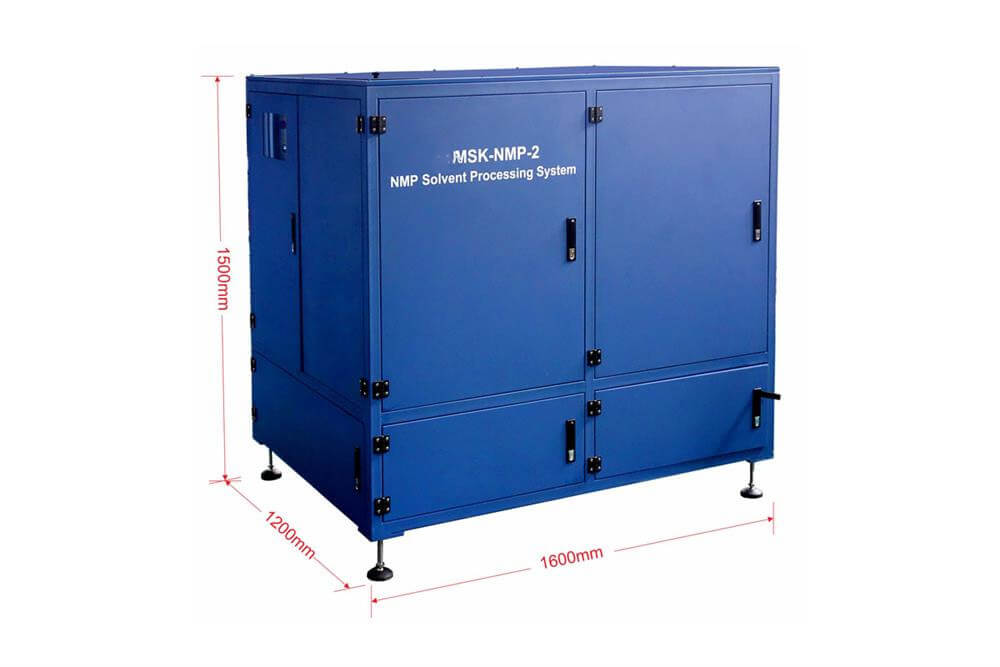

1600mm L x 1200mm W x 1500mm H |
|
Compliance |
CE Certified |
|
|
· One-year limited warranty and lifetime support · Rusting and damage due to improper storage condition or maintenance are not covered by warranty |
|
Net Weight |
700 kg |
