Battery Electrode Roll Slitting Machine For R&D Laboratories
Model Number:
TMAX-MQ350AType:
Electrode Slitting MachineCompliance:
CE certificateWarranty:
1 year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

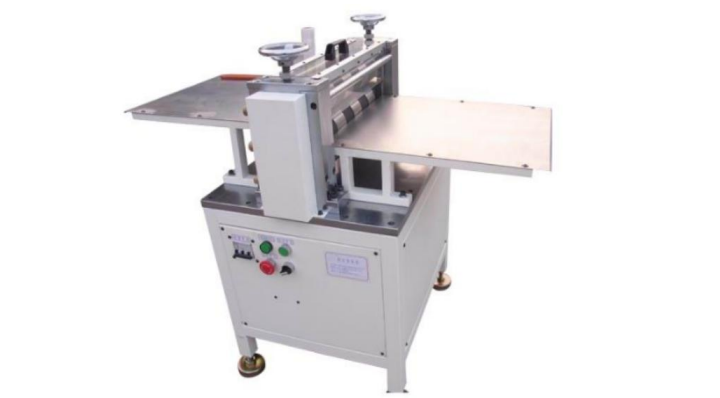

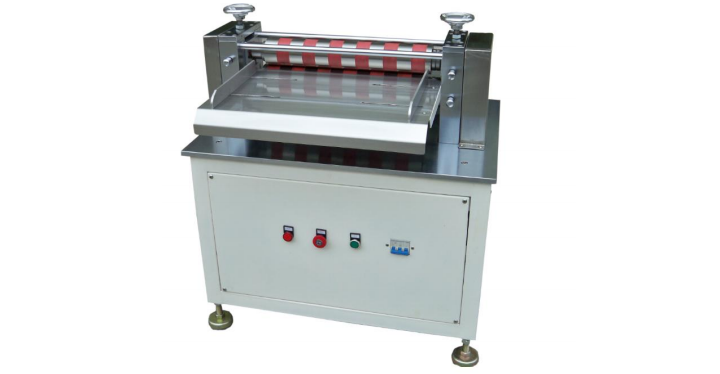

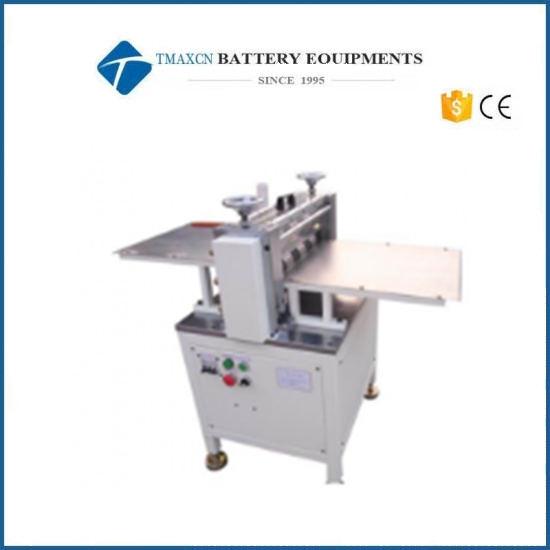

Battery Electrode Roll Slitting Machine For R&D Laboratories
Features
1.TMAX-MQ350A model Battery Electrode Slitting machine is a semi-automatic slitting machine for preparing electrode of cylinder batteries and prismatic batteries in R&D laboratories and production line.
2 .The slitting machine can slit electrode with width up to 500mm, and with finished slitting width from 20mm to500mm with different model cutter blade.
3 .This equipment is suitable for rechargeable lithium batteries cathode and anode electrode of the longitudinal cutting, the electrode of the base material can be aluminum foil and copper foil, sliced edge tidy, high dimensional accuracy, no burr, it is an important equipment in plate processing.

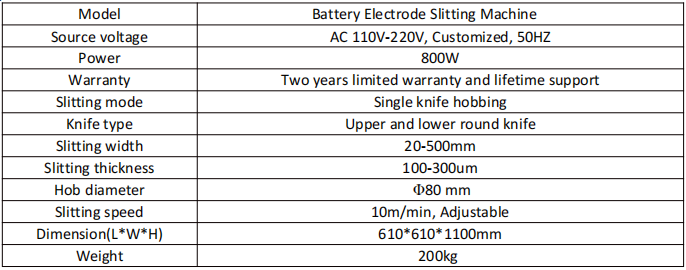

Specifications
