Battery Electrode Slitting Machine for Pouch/Cylindrical Cell preparing electrode

  • Model Number:

    TMAX-DYG-110A
  • Type:

    Electrode Slitting Machine
  • Dimension(L*W*H):

    20-500mm
  • Compliance:

    CE certificate
  • Warranty:

    2 year limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

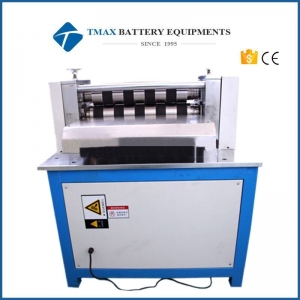

Battery Electrode Slitting Machine for preparing electrode


TMAX-DYG-110A model Battery electrode slitting machine is a semi-automatic slitting machine for preparing electrode of cylinder batteries and prismatic batteries in R&D laboratories and production line.

2 The slitting machine can slit electrode with width up to 500mm, and with finished slitting width from 20mm to 500mm with different model cutter blade.
3 This equipment is suitable for rechargeable lithium batteries cathode and anode electrode of the longitudinal cutting, the electrode of the base material can be aluminum foil and copper foil, sliced edge tidy, high dimensional accuracy, no burr, it is an important equipment in plate processing.


Model

Battery Electrode Slitting Machine      TMAX-DYG-110A

Source voltage

AC 110V-220V, Customized, 50HZ

Power

800W

Warranty

One year limited warranty and lifetime support

Slitting mode

Single knife hobbing

Knife type

Upper and lower round knife

Slitting width

20-500mm

Slitting thickness

100-300um

Hob diameter

 Φ80 mm

Slitting speed

10m/min, Adjustable

Dimension(L*W*H)

610*610*1100mm

Weight

200kg
