Battery Electrode Slitting Machine/Slitter for Lithium Battery electrode

  • Model Number:

    TMAX-DYG-110A
  • Type:

    Electrode Slitting Machine
  • Dimension(L*W*H):

    20-500mm
  • Compliance:

    CE certificate
  • Warranty:

    2 year limited warranty with lifetime support
  • Delivery Time:

    15 days
contact now
DESCRIPTION

Battery Electrode Slitting Machine/Slitter for Lithium Battery electrode

1.Function:

The equipment is mainly used to cut the battery electrode,applied for cutting big electrode into

small ones,adopted without an interspace knife to cut,ensure the precision of size,which is

widely used in the electrode manufacture of li-ion batteries,polymer batteries.

2.Technical Parameter:

1,   power:1.1KW

2,   electrical supply:three phase 380V

3,   hob diameter:Φ80mm

4,   speed:10m/min

5,   electrode max.range:500mm

6,   match a set of cutter

7,   the cutted size can be supplied by user(standard cutting size is aboved 35mm);

8,   the cutter quality:no burr.

3.Main working procedure:

Use the interval cutting machine to cut the electrode into big pieces-feeding,roll and cut into small pieces -receive.

Electrode Slitting machine

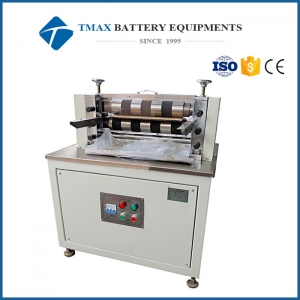

Electrode Slitter



Battery Slitting Machine




 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
