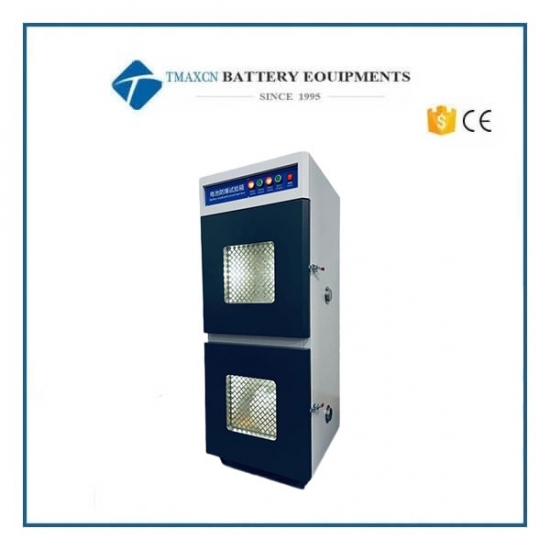

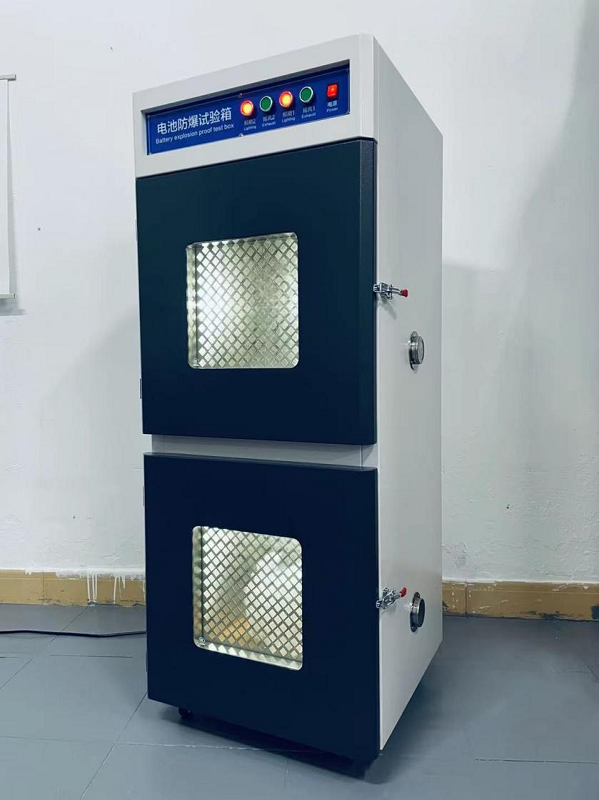

Battery Explosion-Proof Test Chamber For Lithium Battery Safety Testing
Model Number:
TMAX-ZS-1011-2Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPlace of Origin:
ChinaPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Battery Explosion-Proof Test Chamber For Lithium Battery Safety Testing
I. Product Overview:
This test machine is primarily used for overcharge and overdischarge tests on batteries during charge and discharge testing. The battery is placed inside an explosion-proof box, which is connected to an external charge and discharge testing device, providing protection for both the operators and the instruments.
|
Inner box dimensions |
500x500x500mm (LxWxH) |
|
Layers |
2 layers (customizable), the interior of the box is lined with Teflon tape for effective insulation and flame retardancy |
|
Box material |
Stainless steel inner box, cold-rolled steel plate with paint treatment for the outer box |
|
Door |
Single-opening double-layer door with silicone strips and a transparent observation window |
|
Test hole |
50mm in diameter, located at the rear of the box for easy passage of test connection wires |
|
Exhaust fan |
Located at the rear of the box, with an exhaust interface for easy smoke ventilation |
|
Lighting device |
High-brightness explosion-proof lighting |
|
Safety features |
The door is connected to the box with strong hinges and uses an explosion-proof cold pull handle door lock |
