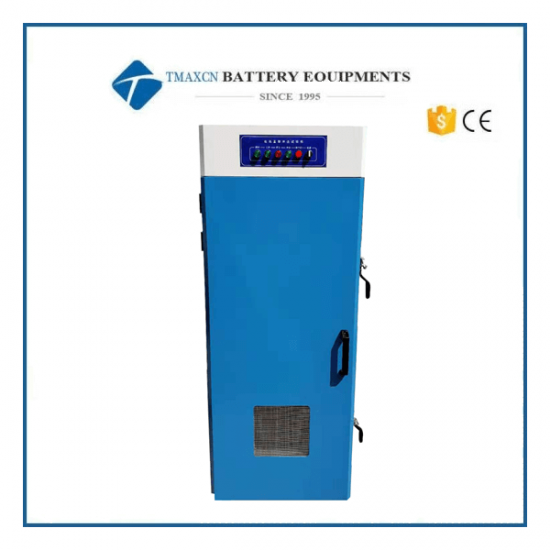

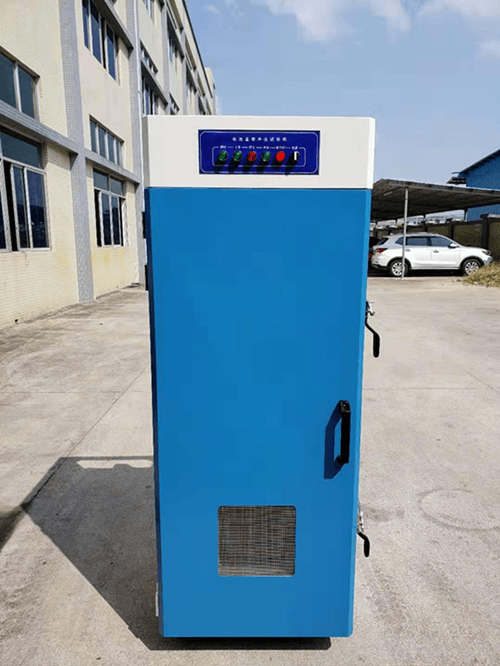

Battery Gravity Impact Tester Machine For Lithium Battery Safety Testing

The test sample battery shall be placed on a flat surface, and a 15.8mm (5 / 8 inch) diameter rod shall be placed in the center of the sample in a cross way. A 9.1kg weight dropped from a certain height of 610±25mm onto the sample.

SPECIFICATIONS

Drop weight	9.1kg or 10kg
Impact height	610 mm or 1000 mm
Impact mode	lift the ball to a certain height and release it. The ball will fall freely in the vertical direction without tilting or shaking
Inner box material	stainless steel plate
Outer box material	cold rolled steel plate baking treatment
Pressing	1 piece of silica gel foaming pressing
Exhaust fan	it is located at the back of the box, and the exhaust duct is reserved, which is convenient for users to connect to the laboratory high-power exhaust fan
Box door	single door, double door, observation window (toughened glass), cold handle door lock
Upper and lower impact surface	stainless steel plate
