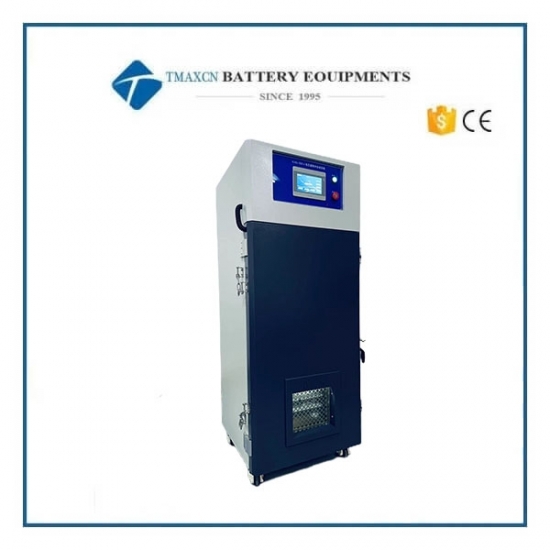

Battery Heavy Object Impact Test Machine
Model Number:
TMAX-ZS-1009Compliance:
CE CertifiedWarranty:
Two Year Limited Warranty With Lifetime SupportPlace of Origin:
China:
XiamenPayment:
T/T, Credit Card, Paypal, LC, Western Union
Battery Heavy Object Impact Test Machine
I. Product Overview:
In this test, the battery sample is placed on a flat surface, with a 15.8 mm diameter crossbar positioned at the center of the sample. A 9.1 kg weight is dropped from a specified height of 610 ± 25 mm onto the sample to simulate impact conditions
II. Compliance Standards:
IEC 62133
UN 38.3
UL 1642:1995
UL 2054:1997
GB/T 18287-2000
GB 8897.4-2002
III. Product Parameters
|
Impact Weight |
9.1 kg or 10 kg |
|
Drop Height |
610 mm or 1000 mm |
|
Test Steel Rod |
φ15.8 mm |
|
Height Display Accuracy |
1 mm |
|
Pressure Relief Device |
Located at the rear of the chamber, effective for pressure relief and explosion prevention |
|
Lighting Device |
LED high-brightness explosion-proof lamp |
|
Impact Method |
The impact weight is lifted to a set height and then released to fall freely in a vertical direction |
|
Internal Chamber Material |
SUS201 stainless steel plate |
|
External Chamber Material |
Cold-rolled steel plate with powder-coated finish |
|
Exhaust Fan |
Located at the back of the chamber, with a diameter of 120 mm and reserved exhaust duct |
|
Chamber Door |
Single-opening double-layer door with a tempered glass observation window and cold-drawn handle lock |
|
External Dimensions |
680 x 830 x 1600 mm (L x W x H) |
|
Weight |
Approximately 130 kg |
|
Power Supply |
AC 220V, 50/60 Hz |
