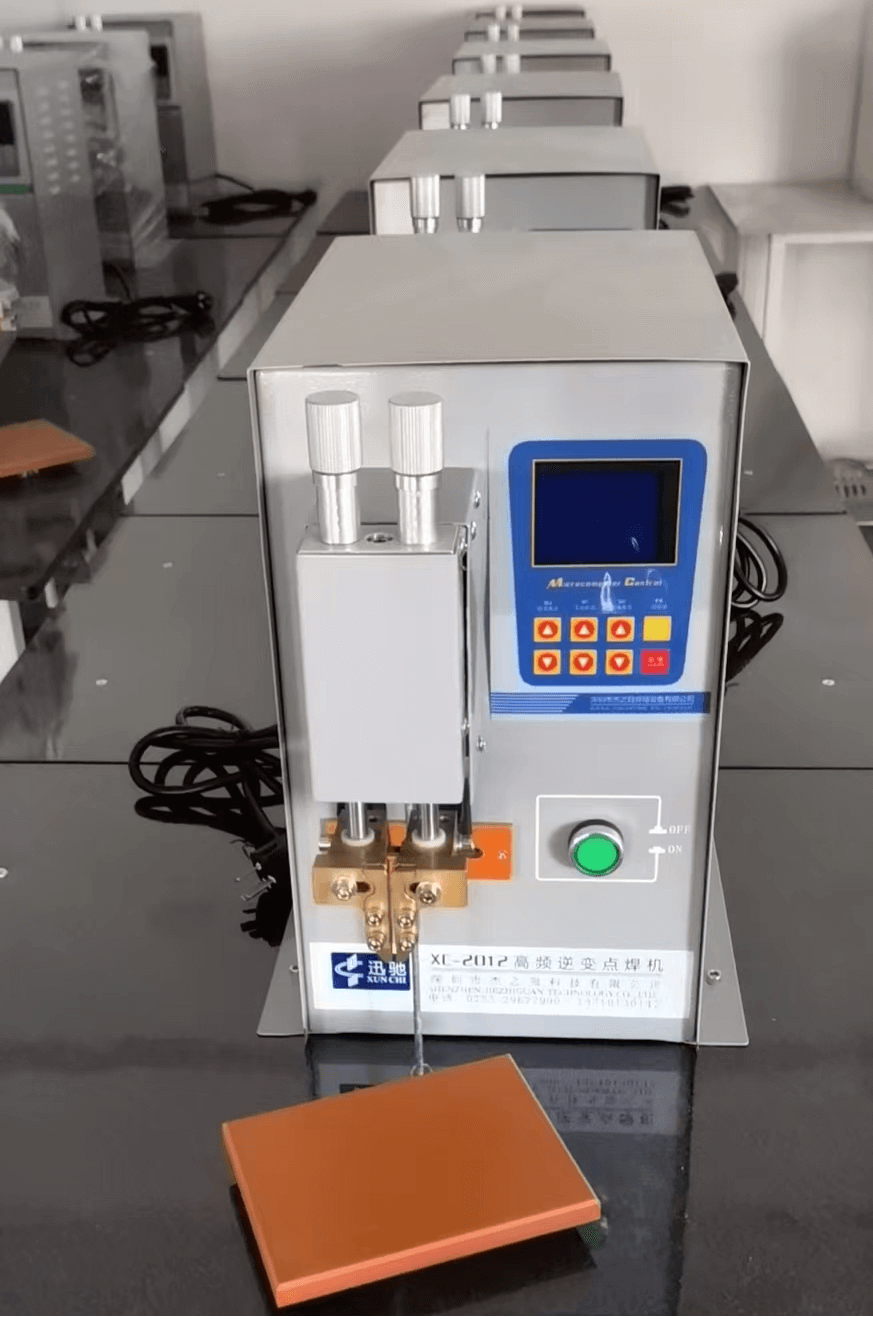

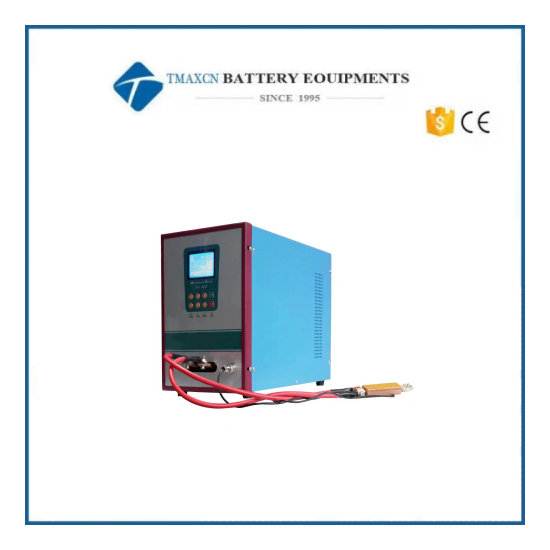

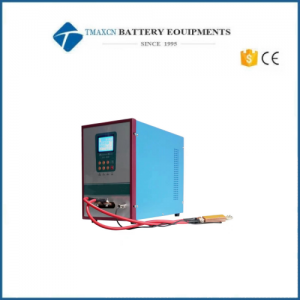

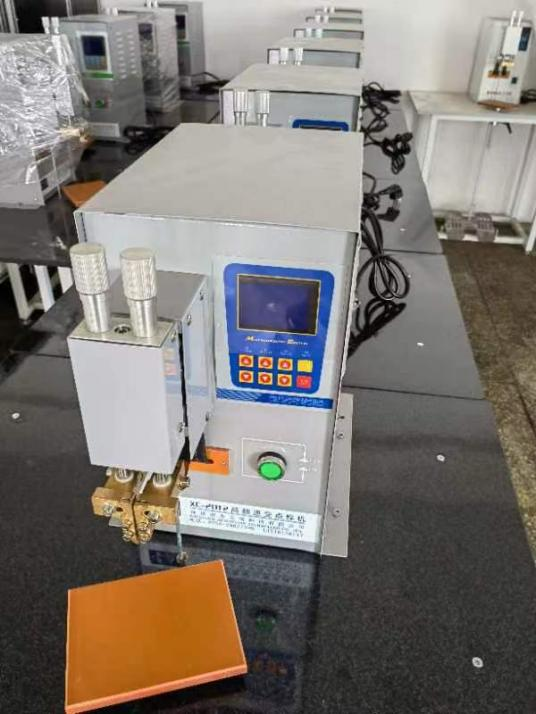

Coin Cell High Power Energy Storage Spot Welding Welder Machine

Coin Cell High Power Energy Storage Spot Welding Welder Machine

1、 Performance characteristics:

(1) This device is controlled by a high-performance microcontroller and is currently an advanced high-performance resistance spot welding machine,

(2) This equipment adopts energy storage dual pulse welding and has welding current monitoring function, which can control the welding quality to ensure welding quality. This device is a welding equipment developed for industries with high-quality welding requirements.

(3) This device has a two-stage power output function, which can adapt to the welding of various welding materials and diverse welding process requirements. It has stable performance and is suitable for precision welding of metal parts such as batteries and hardware

(4) Using a proximity switch trigger combined with a handle, welding is more convenient, fast, and easier

2、 Characteristics of the device

High performance CPU control, 128 * 64 LCD blue screen display, pulse energy storage welding, reducing welding spatter; High speed polarity switching function, ensuring consistency between two solder joints, and electronic voltage stabilization function. In situations where the grid voltage is unstable, stable current output can also be achieved, and pulse 1 and pulse 2 widths can be adjusted (discharge time). Solder point counting preset function, with single and continuous point functions, radio frequency (RFI) and electromagnetic interference protection, power head split adjustment, and flexible combination of pneumatic and foot pedals.

3、 Application scope:

(1) Communication equipment: battery combinations, mobile phone cells, mobile phone hardware, etc.

(2) Electronic components: connecting wires, sensors, resistors, fuses, semiconductor components, etc.

(3) Home appliance products: plug-in, electric shielding case, etc.

(4) Automobile manufacturing: flash lights, relays, filaments, etc.

(5) Code products: laptops, digital cameras, MP3 batteries, computer memory heads, etc.

(6) Electrical components: contactors, circuit breakers, motors, and lead out lugs for lighting fixtures.

(7) Metal products: medical devices, lighting fixtures, badges, headwear, jewelry, and other aerospace products

(8) Precision metal components, instruments, metal connectors, induction devices, etc.

4、 Technical parameters

5、 Standard configuration
