Coin Cell Three-Electrode Split Test Cell with Pressure Gauge

  • Model Number:

    EQ-STC
  • Compliance:

    CE certificate
  • Warranty:

    One Years Limited Warranty With Lifetime Support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

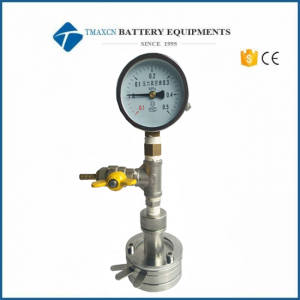

Coin Cell Three-Electrode Split Test Cell with Pressure Gauge

TMAX-Three-Electrode is a three-electrode split cell to test anode/cathode with reference electrode in between. It has a mechanical pressure gauge to monitor the air pressure inside chemical reaction chamber and a 1/8'' barb inlet/outlet with needle valve for gas easy in/out.



Specifications

Model

TMAX-Three-Electrode

Features

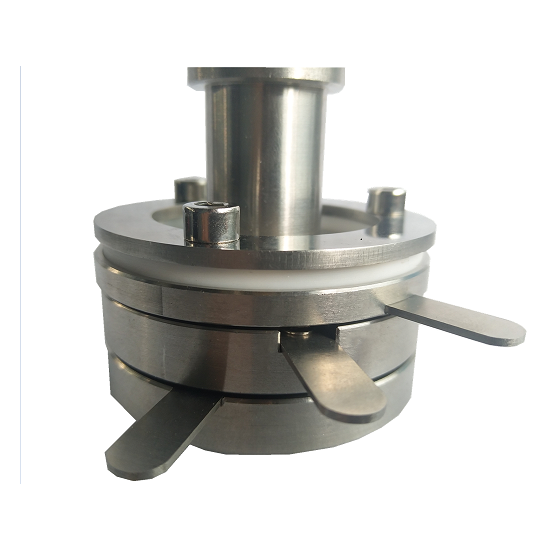

1) Full stainless steel structure ( SS304)

2) Silicon O-ring in between the three plates to ensure good sealing and work up to 250 °C

3) Spring load on top to accept various thickness electrode

4) Easy to separate cell after test

5) Small enough to be put in and out from glove box

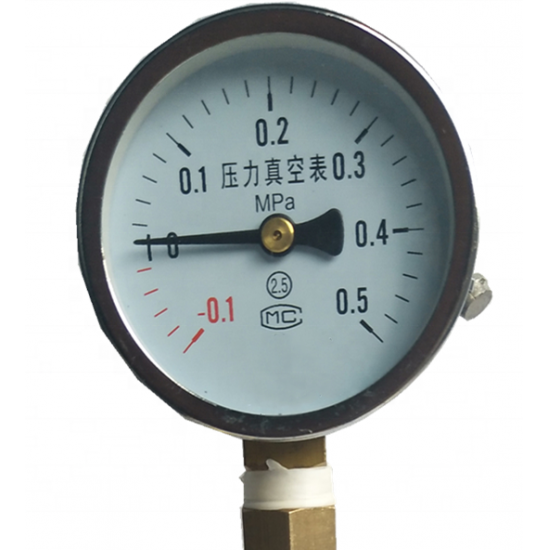

6) Mechanical Pressure Gauge: 1/4NPS Fitting (call for price and delivery time if need digital pressure gauge)

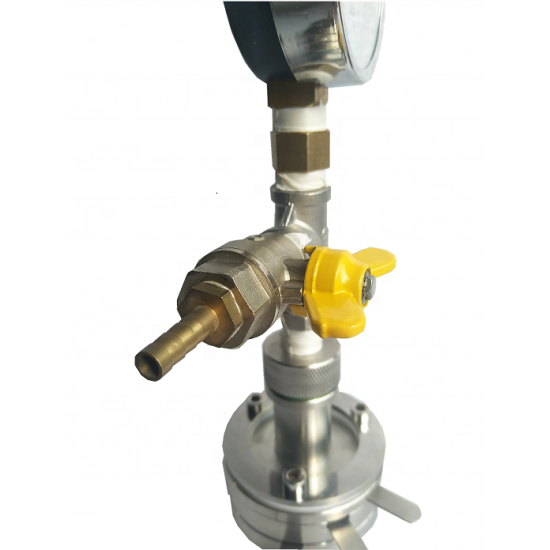

7) Niddle valve with 1/4" pipe adaptor

Specifications

Diameter insert:24 mm

Pressure Range: -0.1Mpa-0.5Mpa (0 Mpa as atmosphere)





               Split Test Cell

          Split Test Cell

             Split Test Cell

                          Split Test Cell


                                          Split Test Cell
