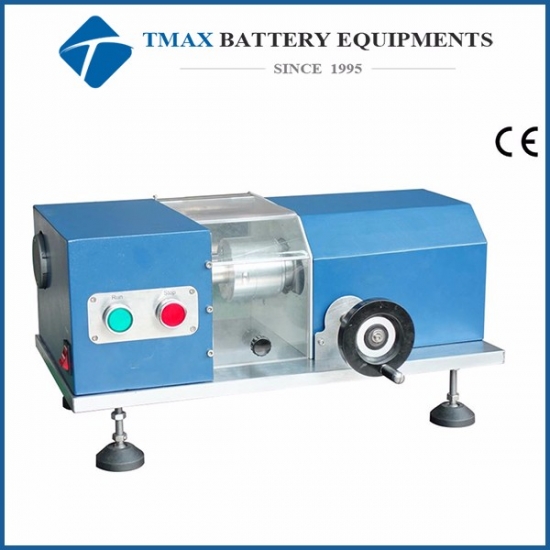

Compact Electric Disassembling Machine For 18650 Cylindrical Cases (Optional Dies Available For 26650 Or 32650)

  • Model Number:

    MSK-530
  • Dimension(L*W*H):

    480 x320 x 230mm
  • Net Weight:

    35kg
  • Compliance:

    CE certificate
  • Warranty:

    One Year limited warranty with lifetime support
  • Delivery Time:

    3 Days
contact now
DESCRIPTION

High Quality Disassembling Machine for 18650 Cylindrical Cases (Optional Dies available for 26650 or 32650) - MSK-530


MSK-530 is a compact manually-operated machine for disassembling cylinder cases in battery R&D lab. The compact body design allows easy operation inside a glove box to preserve & prevent the electrolyte and active materials from contamination during case disassembling. Simple operation with safety protection cover allows customers to master the disassembling procedure within 5 minutes.

SPECIFICATIONS:

Supply Voltage

AC220V Single phase (110VAC available with a transformer)

Power

100W

Slicing Motor Speed

1000 rpm

Die Rotating Speed

1000 rpm

Micrometer Accuracy

0.05mm

Warranty

One year limited with lifetime support

Product Dimensions

480mm(L) x320mm(W) x 230mm(H)


Accessories

1.      Standard disassembling die for 18650 case.

2.      5 pcs carbide cutting blades are included.

3.      Additional die sets available for 26650 and 32650 as option.

4.      Additional blade and pin wrench for changing blades are available upon request.

Net Weight

35 kg

Shipping Weight & Dimensions

100 lbs; 40"x20"x20"

Attention

Considering the best interest of the blade's service life, a low feeding speed is preferred. Normally, 45 seconds is needed to cut through the cylinder casing.




 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
