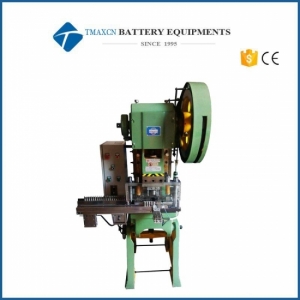

Crimping Machine for Cylindrical Battery Research Machine

  • Model Number:

    Tmax-crimper004
  • Dimension(L*W*H):

    W1200mm*D690mm*H1765mm
  • Net Weight:

    800lbs
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    15 days
contact now
DESCRIPTION

 Crimping Machine for Sealing Cylindrical Battery Cases Machine


Here is our product video link:

https://www.youtube.com/watch?v=XZFjf0yDL-o


It is an auto crimper designed for sealing the cylindrical battery cases. It provides a continues workflow for case batch loading - crimping - case unloading without dedicated labor.


Advanced Features:


                   Efficient batch loading/unloading mechanism with case feeding conveyor

·        Dedicated Four-step crimping process (1st & 2nd trials for pre-deformation, 3rd trial for complete sealing and 4th trial for case consolidation) ensures the most stable &         consistent sealing quality

·        Crimping speed and pressure is adjustable

·        User-friendly human-machine interface with PLC touch screen control

·        Floor-Stand enclosure with transparent front & side openable windows allow clear process monitoring and adjustment


Specifications:


Working Voltage

110/220V AC, 50/60Hz, three Phase

Max. Power Consumption

4KW

Driving Force

Penumatic, 0.5 - 0.8 MPa compression gas is required

Compatibility



Standard crimping capability for 18650 case
Note: CR123 / 18650 / 26650 / 32650 / AA is available upon request, please contact us for more details.

Control



User-friendly HMI with PLC touch screen control ensures easy program setup



Crimping Force



Upto 6kgf/cm²



Productivity



·         30 pieces per minute

·         Material feeding conveyor is able to load upto 22 pcs per batch

Warranty



·         One year limited with lifetime support

·         Parts rusted without regular cleaning and maintenance are not covered

Product Dimensions



W1200mm*D690mm*H1765mm

Net Weight



800 lbs

Auto Crimping Machine




 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
