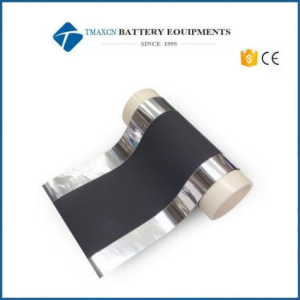

Customized Battery LFP/LMO/NMC/LTO/Graphite Electrodes
Model Number:
TMAX-ElectrodeDimension(L*W*H):
CustomizedCompliance:
CE compliantWarranty:
Two years limited warranty with lifetime technical supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Customized Battery LFP/LMO/NMC/LTO/Graphite Electrodes
TMAX could supply different kinds of lithium ion battery electrodes, including Aluminum foil coating LFP, LMO, LCO, NMC, copper foil coating graphite. Also can customize the cathode and anode electrodes as your demands.
Ⅱ、Product Parameters:
Material systems
LCO
NCM
LMO
LFP
Graphite
Formulation |
Specific Capacity @ C/10 (mAh/g) |
% wt |
Cathode Active Material |
190 |
96 |
PVDF |
0 |
2 |
Al foil thickness |
12 |
µm |
Coating width |
235 |
mm |
Pattern coating length |
517 |
mm |
Uncoated length |
20 |
mm |
Density |
3.56 |
g/cm3 |
Porosity |
25 |
% |
Mass loading |
23.5 |
mg/cm² |
Thickness |
154 ± 1 |
µm |
Formulation |
Specific Capacity @ C/10 (mAh/g) |
% wt |
Anode Active Material |
355 |
95.2 |
C45 |
0 |
1.5 |
Cu foil thickness |
8 |
µm |
Coating width |
230 |
mm |
Pattern coating length |
520 |
mm |
Uncoated length (uncoated foil gap between patterns) |
20 |
mm |
Density |
1.73 |
g/cm3 |
Porosity |
30 |
% |
Mass loading |
13.59 |
mm |
Thickness |
175±1 |
µm |
Ⅲ、Material Features:
Characteristics of lithium iron phosphate
Characteristics of lithium cobalate
Ternary material properties

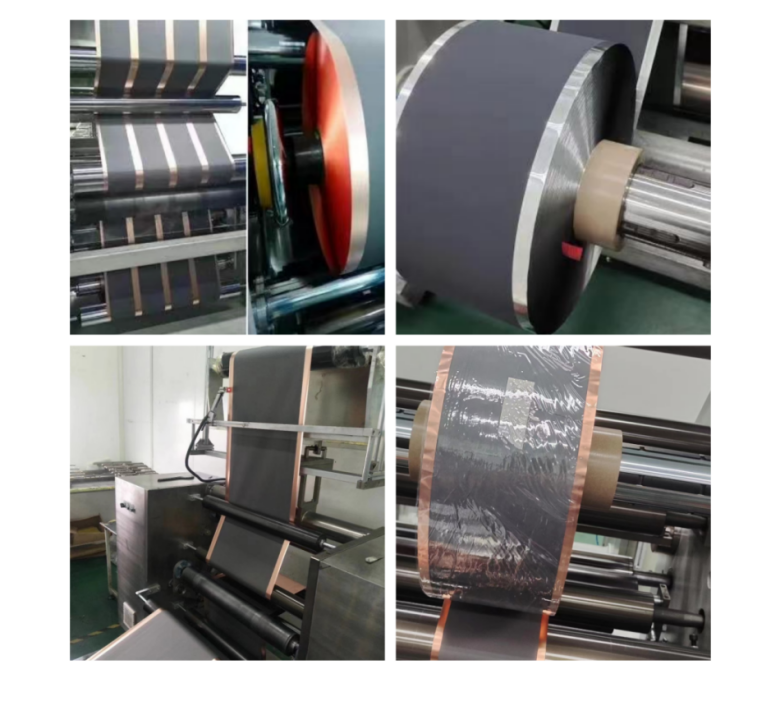

Ⅳ、Product Display:
Ⅴ、Production Machine:
Ⅵ、Package:
