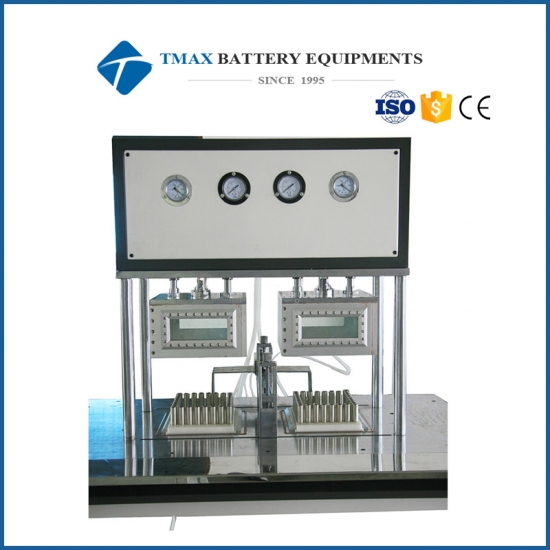

Cylindrical Cell Electrolyte Filling Machine For 18650/26650/32650 Etc Battery Electrolyte Injection
Model Number:
TMAX-JK-ZYJ-02Type:
Electrolyte Filling MachineMax. Loading Capacity:
0-7gNet Weight:
500KGCompliance:
CE certificateWarranty:
2 year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Cylindrical Cell Electrolyte Filling Machine For 18650/26650/32650 Etc Battery Electrolyte Injection
SPECIFICATION
1 TMAX-JK-ZYJ-02 Vacuum linear filling machine is used for lithium battery electrolyte injection with high precision and simple operation.
2 This vacuum filling machine can be used for various cylindrical cell cases including CR123,18650 26650, 32650 and AA with changing clamps.
|
Model |
Vacuum Filling Machine TMAX-JK-ZYJ-02 |
|
Source voltage |
110V-220V AC, 50/60Hz Single Phase |
|
Power |
1500W |
|
Warranty |
Two years limited and lifetime support |
|
Suitable battery model |
18650 / 26650 / 32650, For all kinds of cylindrical battery |
|
Advantages |
1 Customized die for all kinds of cylindrical cell types is available according to request 2 Adopt PLC and man-machine interface centralized control, easy operation. 3 Filling speed and times can be set 4 All the parameters such as vacuum time, air input time, filling quantity and battery distance can be adjusted freely. 5 Vacuum box for static control independently |
|
Vacuum filling accuracy |
±0.02g |
|
Vacuum filing time |
1-10times adjustable |
|
Vacuum filling quantity |
0-7g |
|
Vacuum degree |
-0.1Mpa |
|
Air supply |
0.3-0.6MPa |
|
Working clamps |
18650 clamps battery tray 6 rows 8 columns(It can be customized) |
