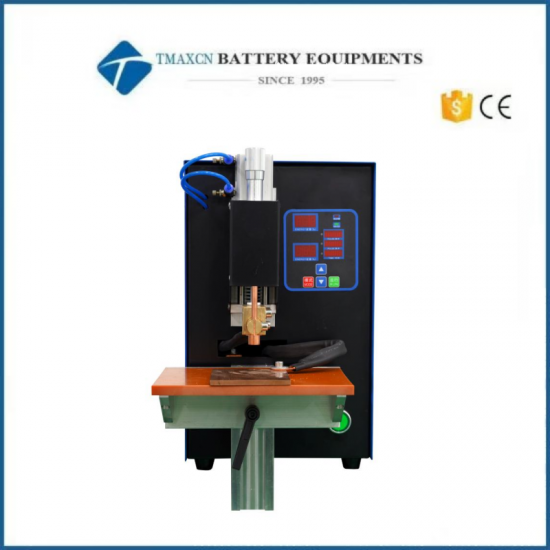

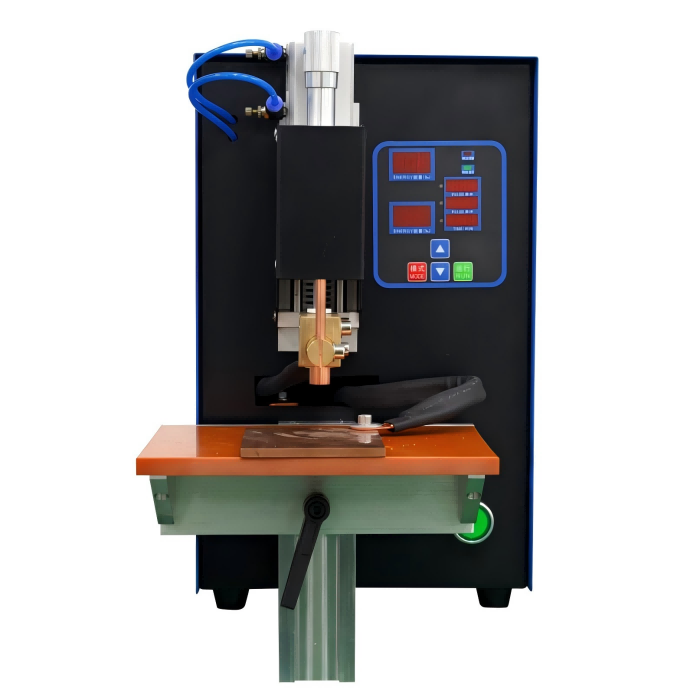

Cylindrical Cell Negative Electrode Spot Welding Machine

Cylindrical Cell Negative Electrode Spot Welding Machine

· Product Profile ·

This product is a popular AC pulse spot welding machine, microcomputer chip control, performance is more stable and reliable. It is designed according to the current world to produce high-end nickel-cadmium, nickel-metal hydride and lithium battery, used for column battery negative electrode shell and pole ear welding (single needle welding).

· Main Features ·

The welding current is stable, the solder joint size is uniform, the solder joint is beautiful, small spark, no black.

It is an ideal equipment for producing and assembling batteries to completely overcome the phenomenon of low pressure and water outlet after spot welding of lithium battery.

Using microcomputer microcontroller control, can realize single pulse, double pulse and multi-pulse welding.

All parameters are set in digital way, so the parameter adjustment is intuitive and accurate.

The welding needle pressure is adjusted independently and easily adjusted to ensure that the welding pressure is stable and reliable.

Position welding is accurate, suitable for small cap cell welding, high yield.

Exquisite and beautiful appearance, light light.

· Technical Parameter ·

* Maximum output power: 1000W

* Welding current: 00~99

* Power supply: AC220V± 10% 50～60Hz

* Input air pressure: 0.1~0.7MPa

* Scope of application: applicable to various welded pieces of 0.03mm~0.25mm

* Overall weight: 45 Kg

* External size: L400×W560×H400mm
