home >Supercapacitor Assembly Equipment >Cylindrical Supercapacitor Grooving and Pre-Sealing Machine
PRODUCTS LIST
products
Grooving Machine
  • Cylindrical Supercapacitor Grooving and Pre-Sealing Machine
  • Cylindrical Supercapacitor Grooving and Pre-Sealing Machine
  • Cylindrical Supercapacitor Grooving and Pre-Sealing Machine
  • Cylindrical Supercapacitor Grooving and Pre-Sealing Machine

    • Cylindrical Supercapacitor Grooving and Pre-Sealing Machine

    • Model Number:

      TMAX-GCFK60

    • Input Power:

      750W

    • Dimension(L*W*H):

      800mm(L) x 460mm(W) x 720mm(H)

    • Net Weight:

      68kg

    • Compliance:

      CE Certified

    • Warranty:

      Two Year Limited Warranty With Lifetime Support

    • Payment:

      T/T, Credit Card, Paypal, LC, Western Union

    • Delivery Time:

      3 Days
    contact now
    Email:David@battery-equipments.com
    Whatsapp:+86 18659217588
    Wechat:18659217588
    DESCRIPTION

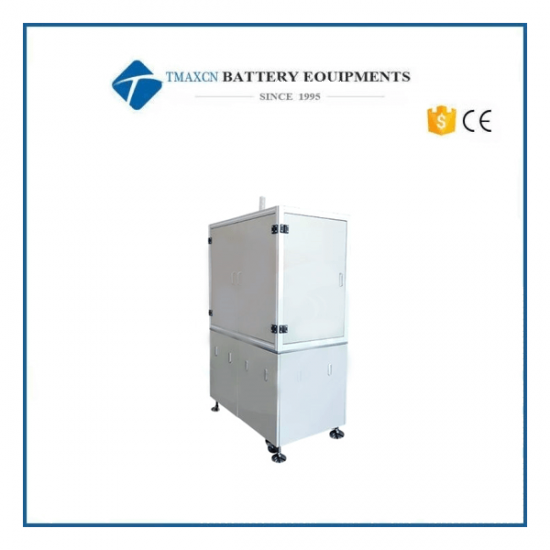

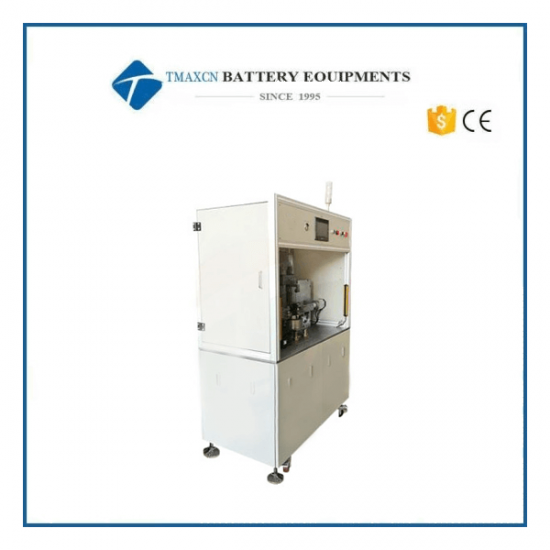

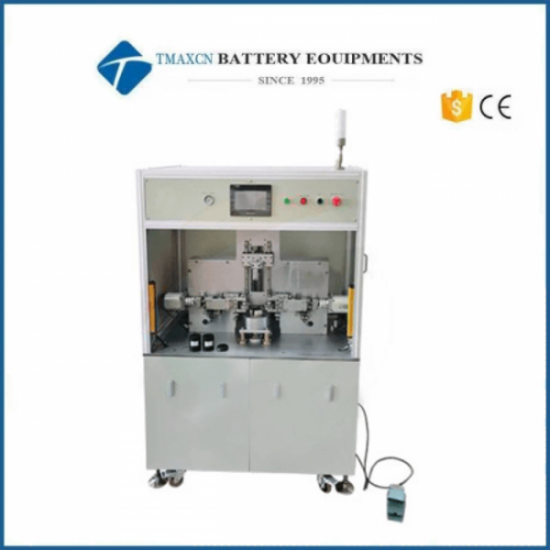

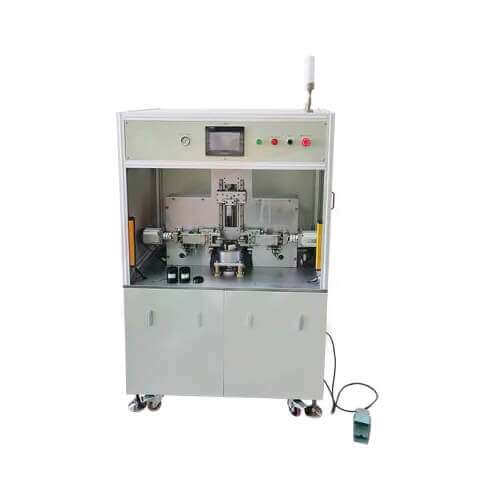

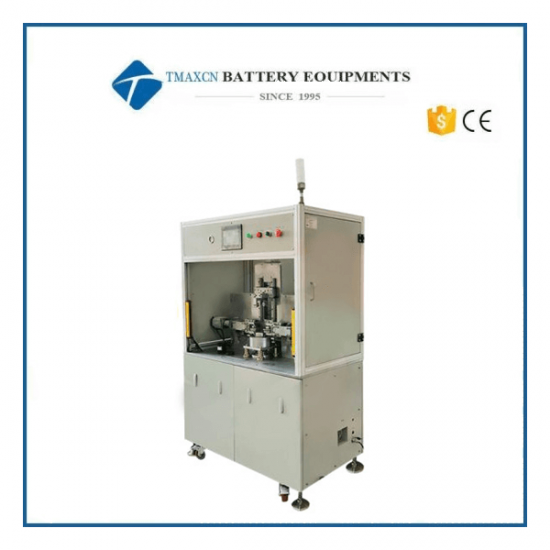

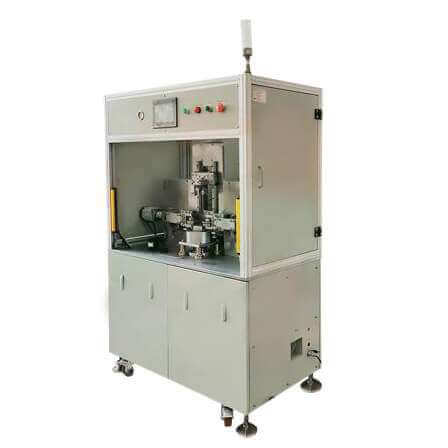

    Cylindrical Supercapacitor Grooving and Pre-Sealing Machine

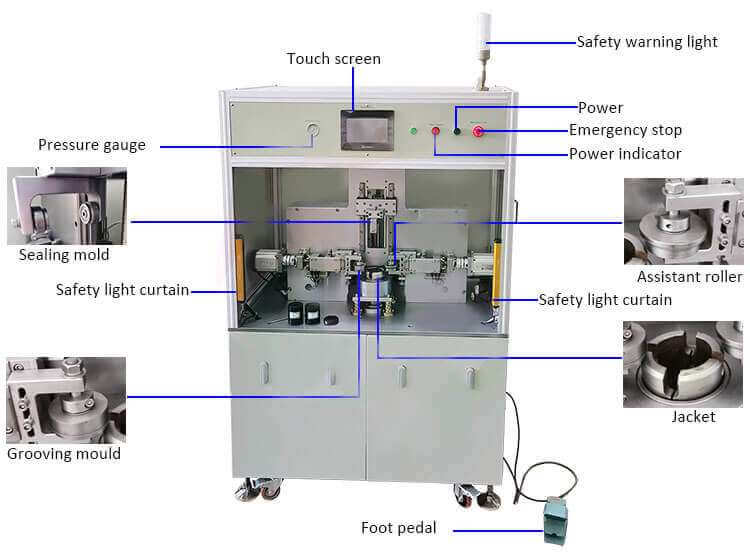

    Ⅰ、Main features

    *Grooving and sealing are all driven by servo motor lead screw with high precision, precise control of the distance and speed of the feed, and no rebound of the feed (the cylinder will rebound due to compression resistance).
    * The size of supercapacitor product grooving and sealing, can be set by the man-machine interface, automatically precision adjustment to the desired data.
    * Slowly grooving
    * It adopts jacketed fixed product, stable and without sloshing, high centering concentricity, uniform grooving and sealing, and good roundness.
    * Adopt high-precision linear guide group feeding, high precision in grooving and sealing. size stable
    *PLC control, man-machine interface display, easy to form automation.
    *Using cover intelligent protection, safe and reliable.
    * Appearance geometric design, exquisite and beautiful, easy to operate.

    Ⅱ、Specification


    Model

    TMAX-GCFK60 Grooving machine

    Applicable products

    diameter 60 mm batteries, super capacitor (diameter can be customized),height 50-180mm

    Capacitor height after sealing

    ±0.05mm

    Grooving height accuracy

    ±0.05mm

    Grooving depth accuracy

    ±0.02mm

    Service life

    The normal service life of tooling molds reaches more than 5 million times

    Capacity

    ≥ 3PCS

    Activity rate

    98%

    Air source

    adjustable from 0.5 to 0.7 MPa

    Power supply

    220V/50HZ

    Air consumption

    0.2 m3/min

    Power

    2.5KW

    Dimensions

    L1100mm *W900mm * 1700mm

    Weight

    800kg






     battery equipment

    Related Tags :

    cylinder battery groover battery roll groover battery grooving machine
